Pinpoint Test B: The Restraint Control Module (RCM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

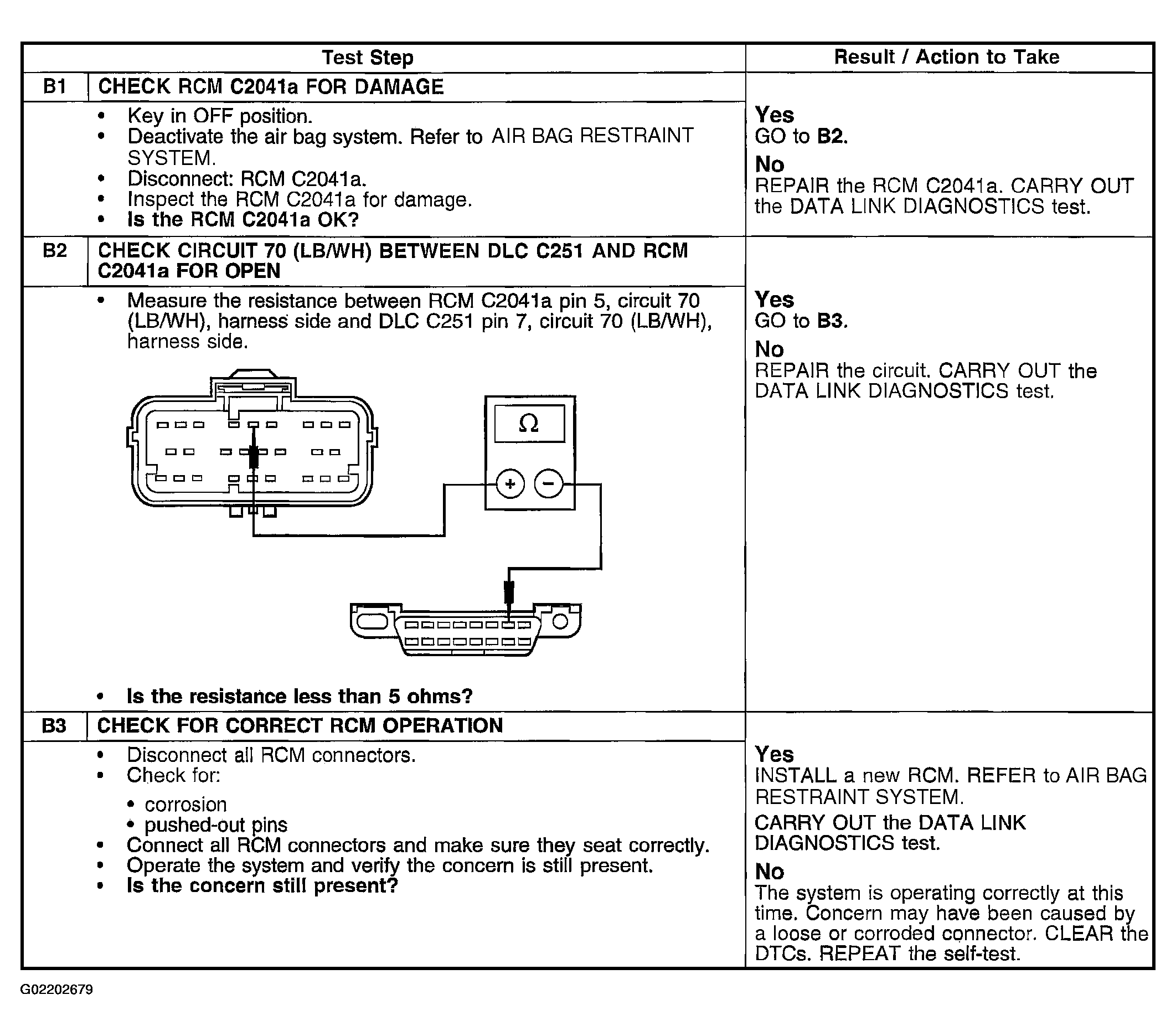

Fig 1: Pinpoint Test B: Restraint Control Module (RCM) Does Not Respond To Diagnostic Tool
G02202679Courtesy of FORD MOTOR CO.
