Roof opening panel switch (15B691)

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

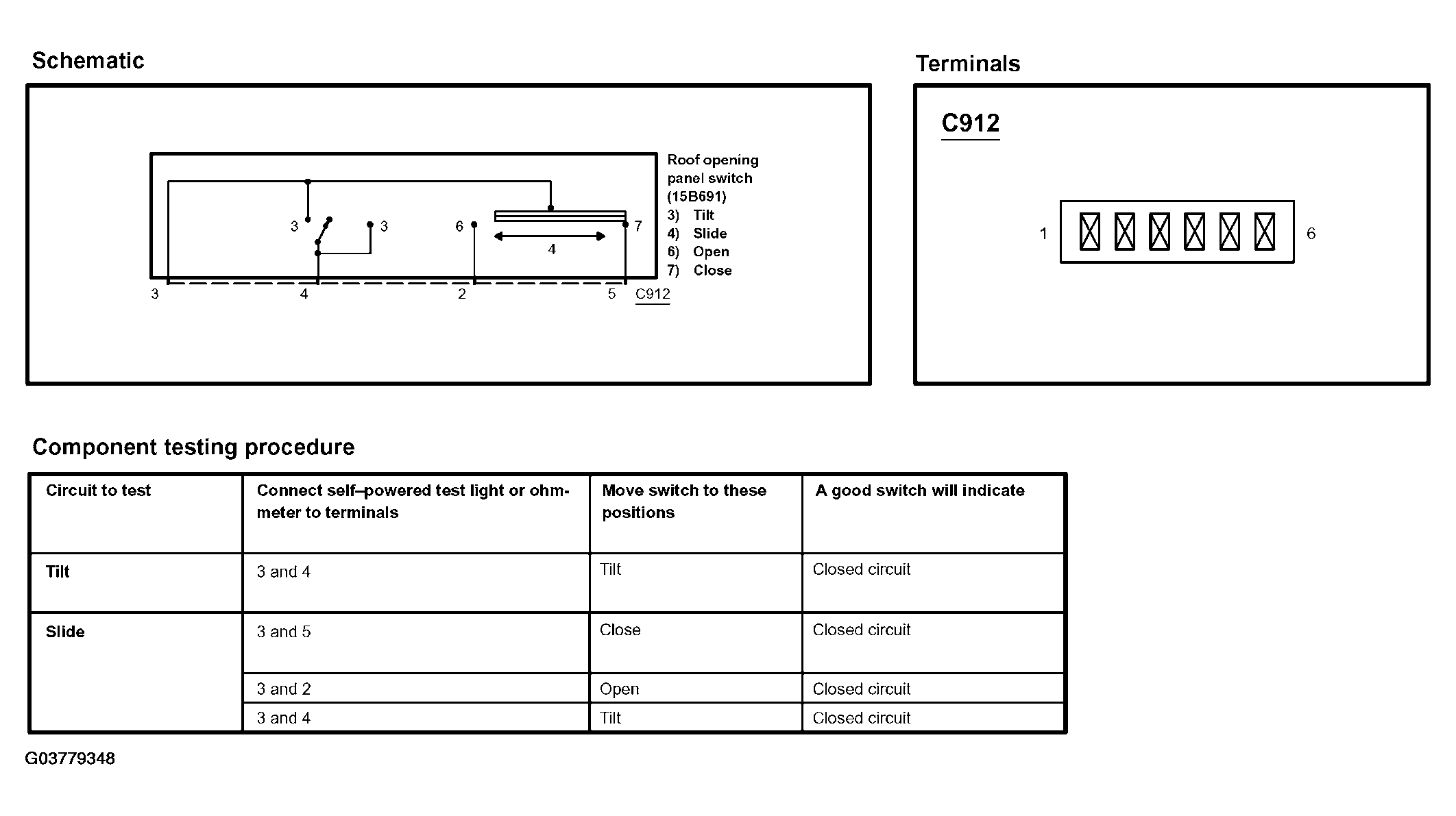

Fig 1: Testing Roof Opening Panel Switch (15B691)
G03779348Courtesy of FORD MOTOR CO.
