Pinpoint Test I: The Driver Seat Module (DSM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

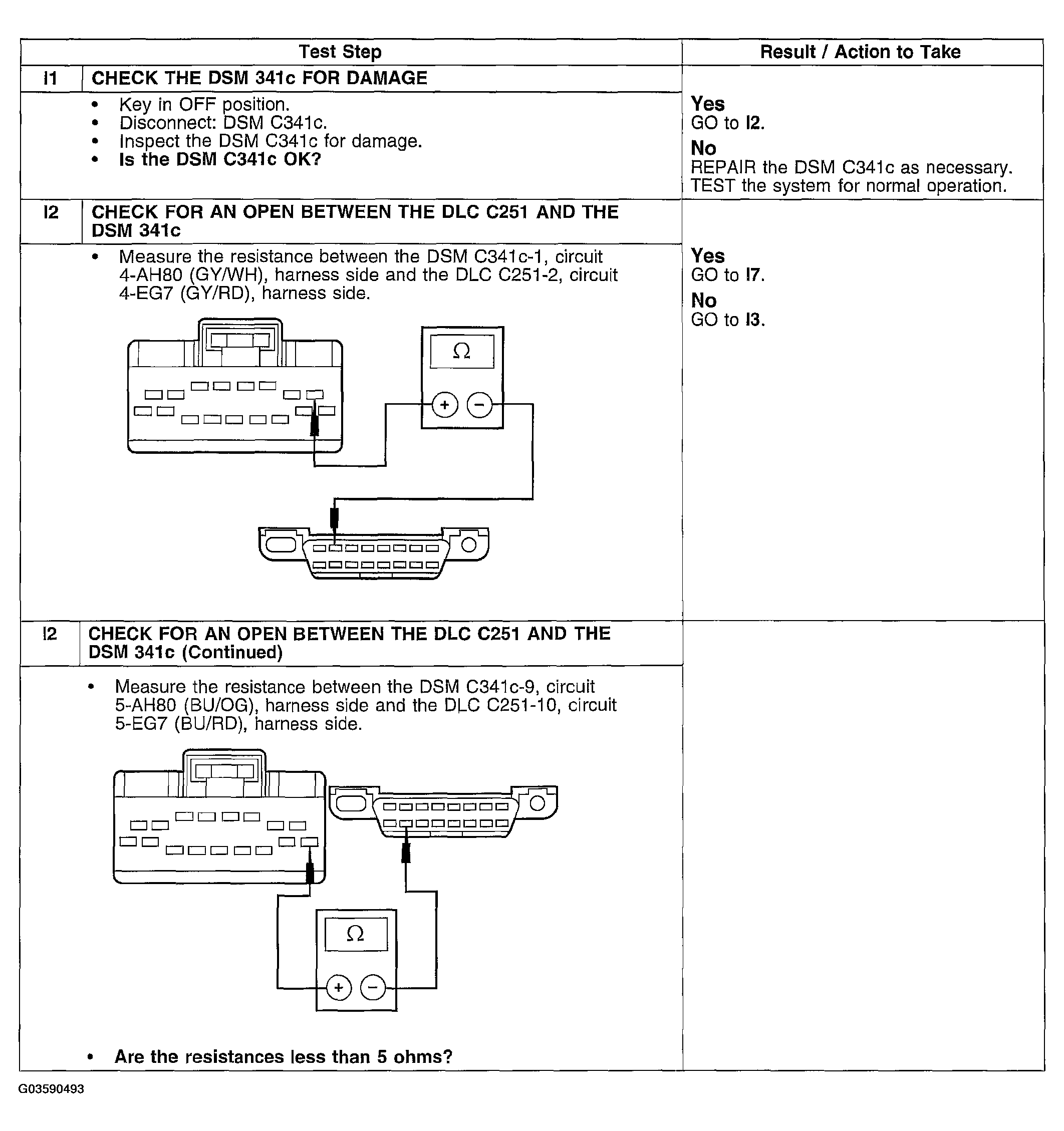

Fig 1: Pinpoint Test I: Driver Seat Module (DSM) Does Not Respond To Diagnostic Tool (Step I1 - I2)

Courtesy of FORD MOTOR CO.

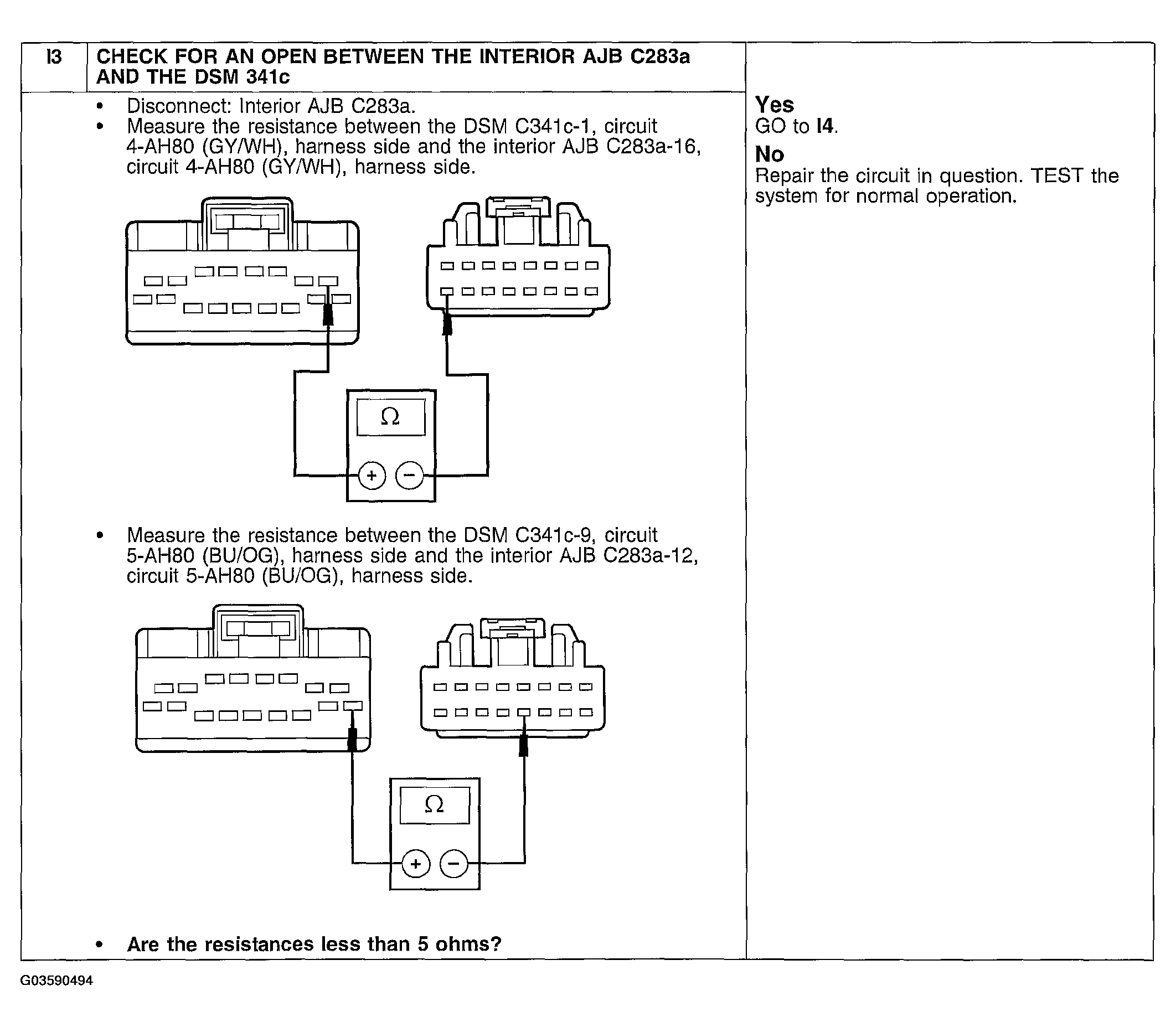

Fig 2: Pinpoint Test I: Driver Seat Module (DSM) Does Not Respond To Diagnostic Tool (Step I2 - I3)

Courtesy of FORD MOTOR CO.

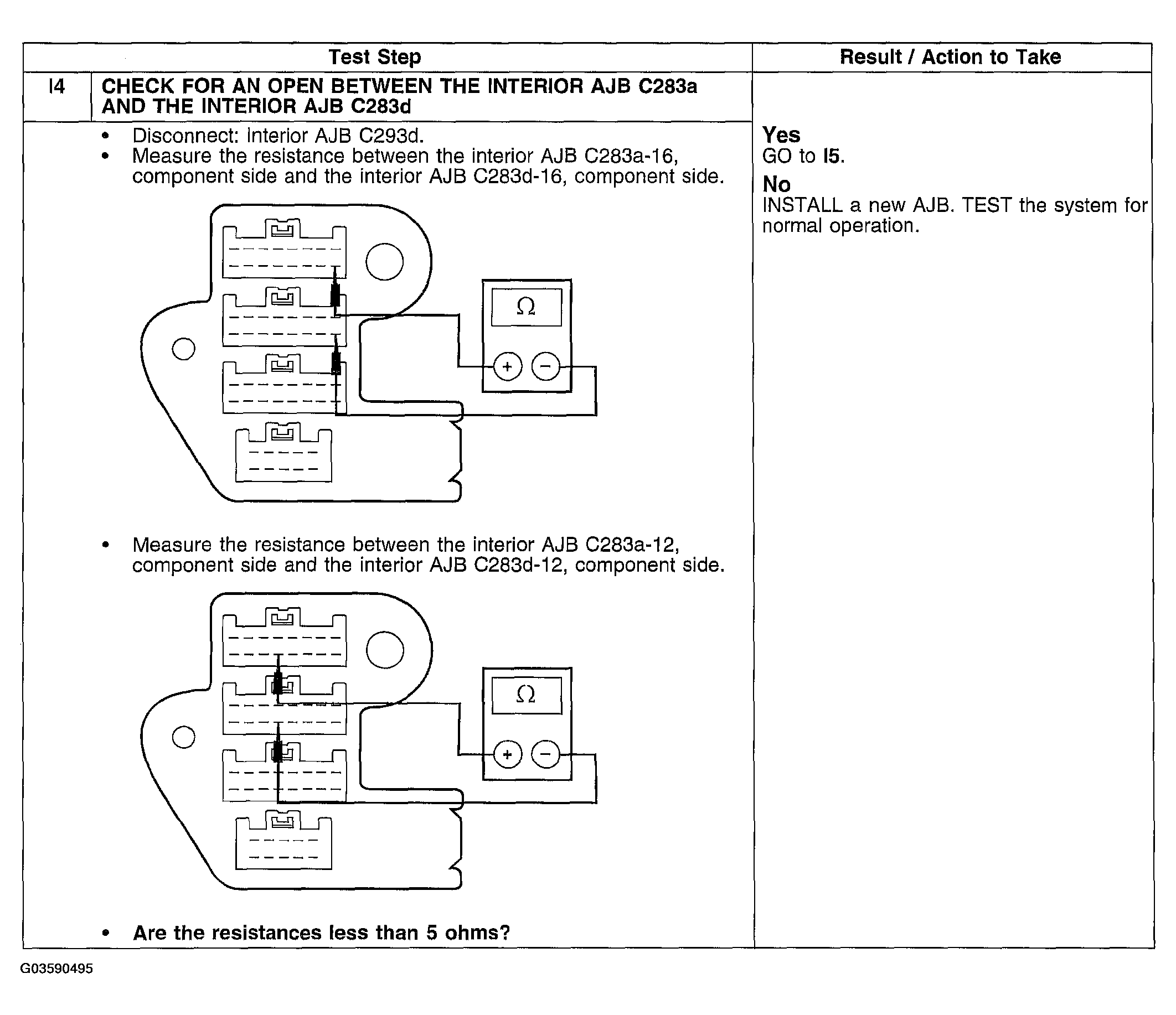

Fig 3: Pinpoint Test I: Driver Seat Module (DSM) Does Not Respond To Diagnostic Tool (Step I4 - I5)

Courtesy of FORD MOTOR CO.

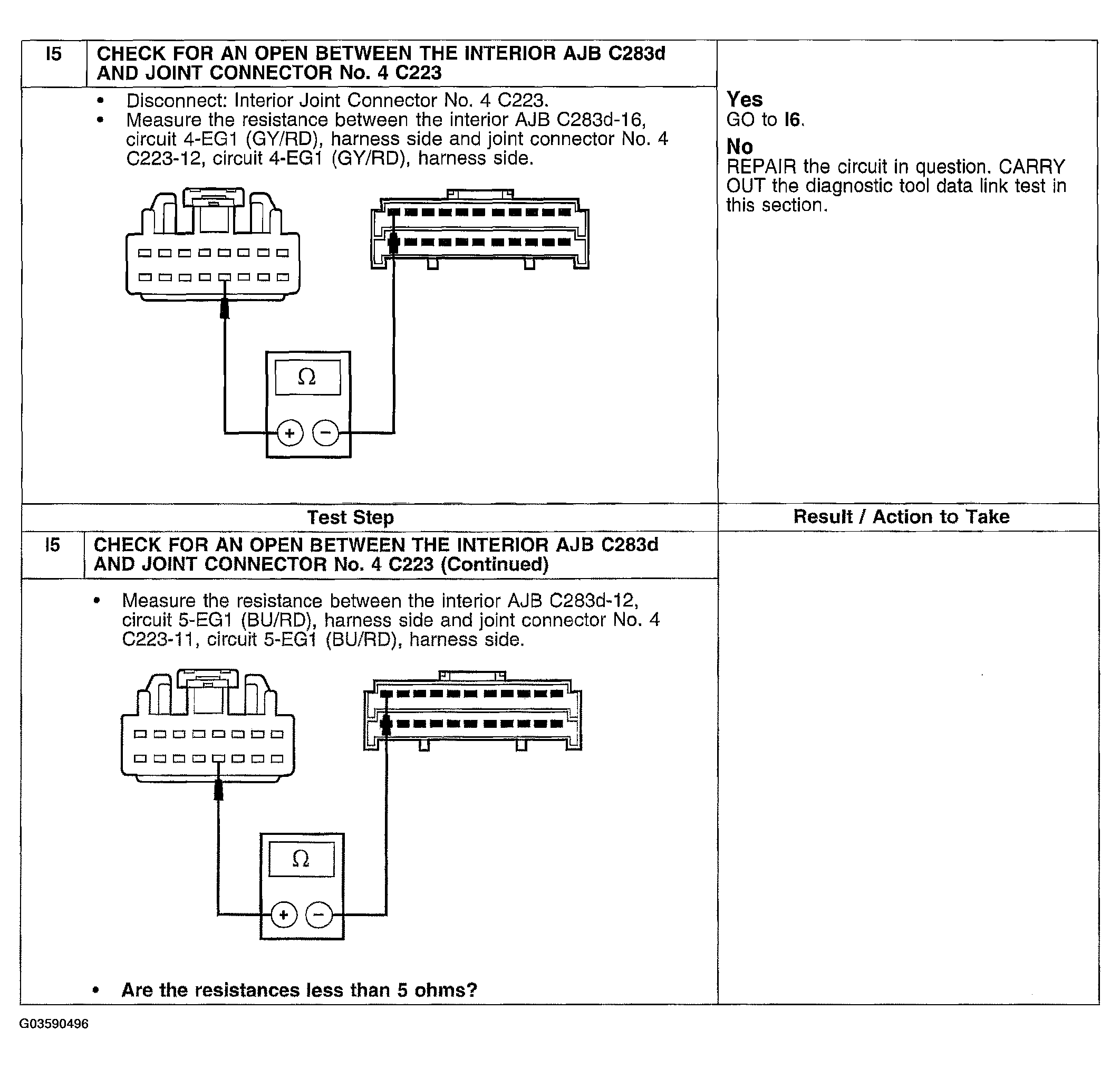

Fig 4: Pinpoint Test I: Driver Seat Module (DSM) Does Not Respond To Diagnostic Tool (Step I5 - I6)

Courtesy of FORD MOTOR CO.

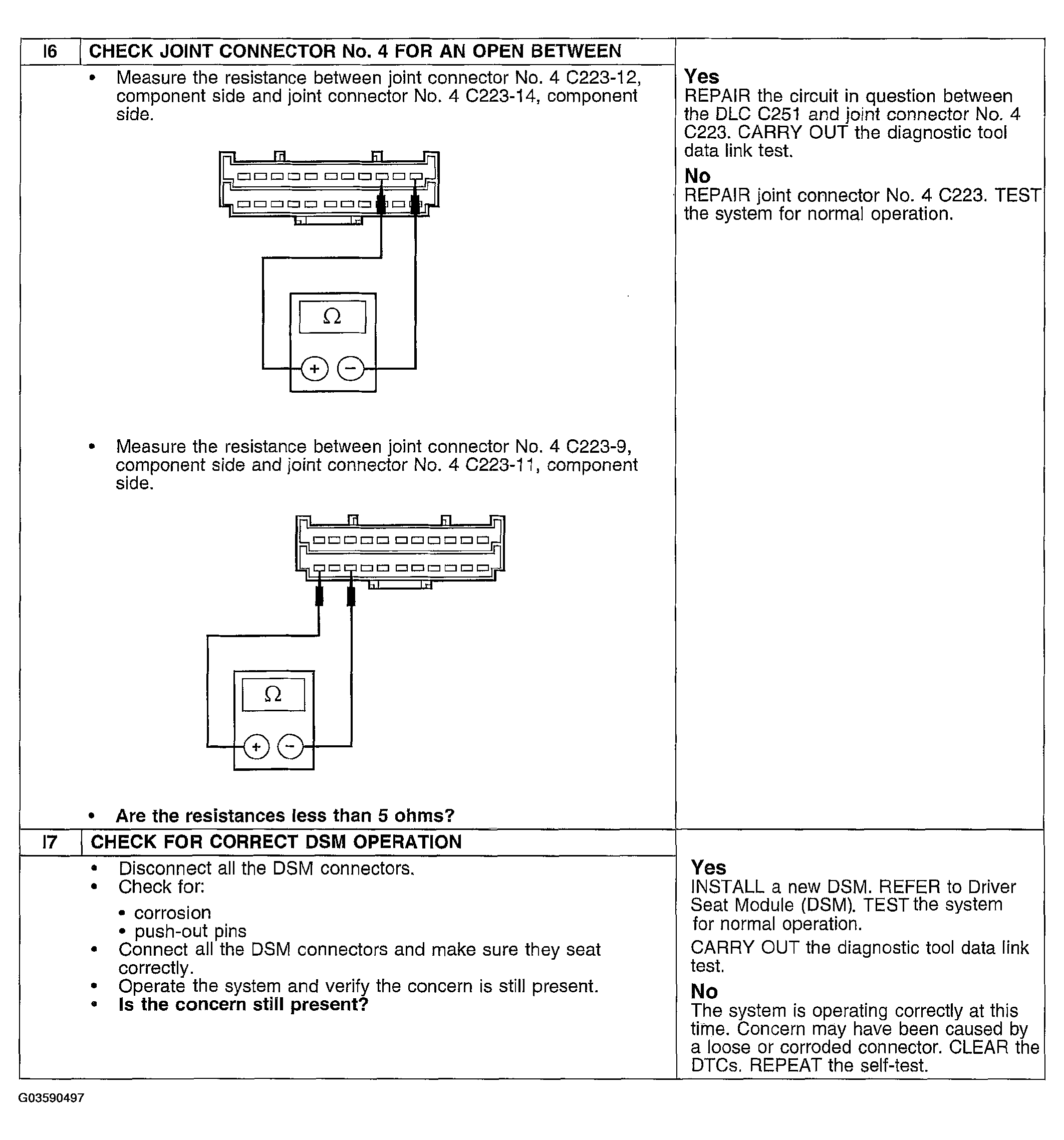

Fig 5: Pinpoint Test I: Driver Seat Module (DSM) Does Not Respond To Diagnostic Tool (Step I7)

Courtesy of FORD MOTOR CO.
