Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the blower motor switch knob.

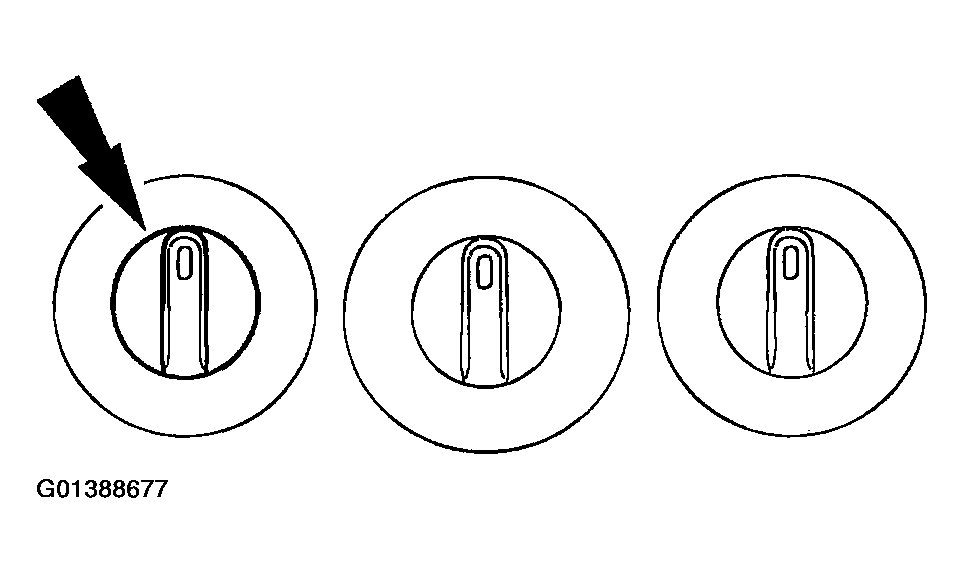

Fig 1: Removing Blower Motor Switch Knob
Courtesy of FORD MOTOR CO.
Remove the blower motor switch.
- Depress the locking tab.

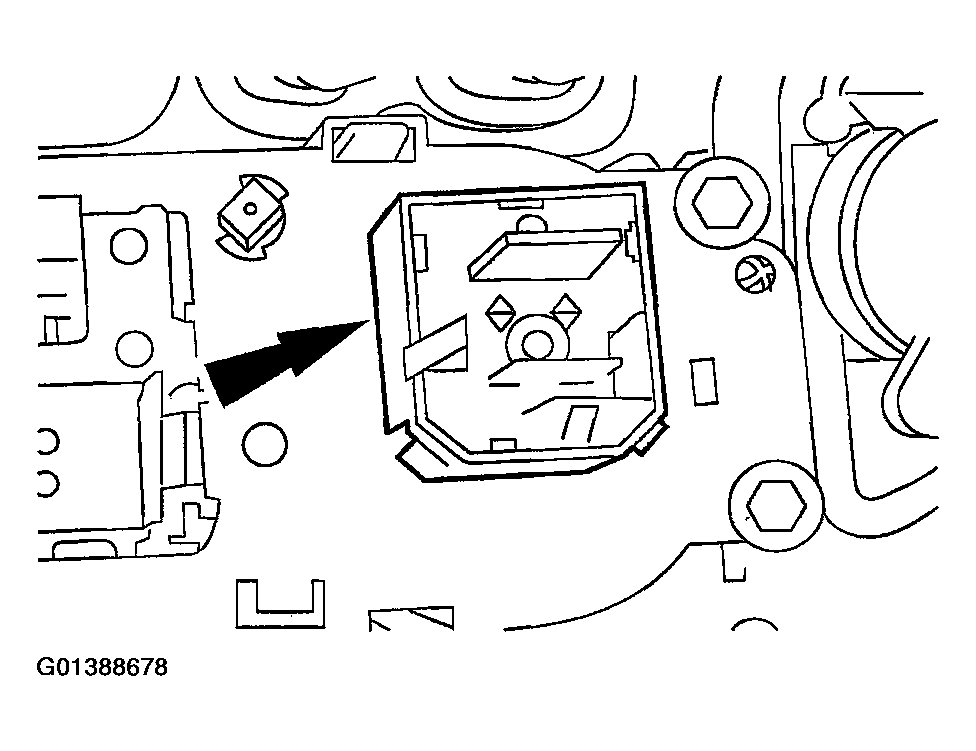

  Fig 2: Removing Blower Motor Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
