Pinpoint Test D: The Speed Control Does Not Disengage When The Clutch Is Applied
WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

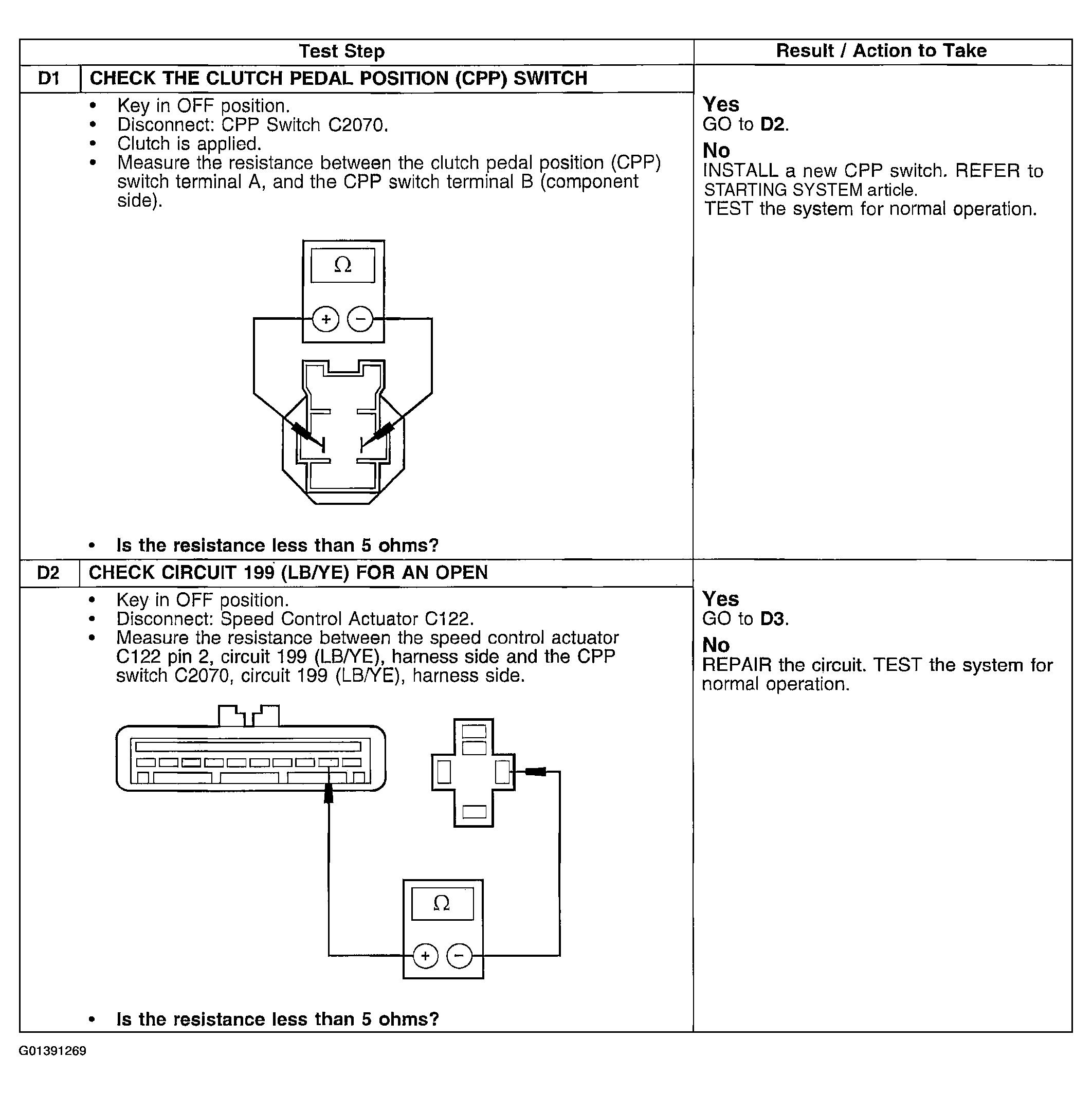

Fig 1: Pinpoint Test D: Speed Control Does Not Disengage When Clutch Is Applied (Steps D1-D2)
Courtesy of FORD MOTOR CO.

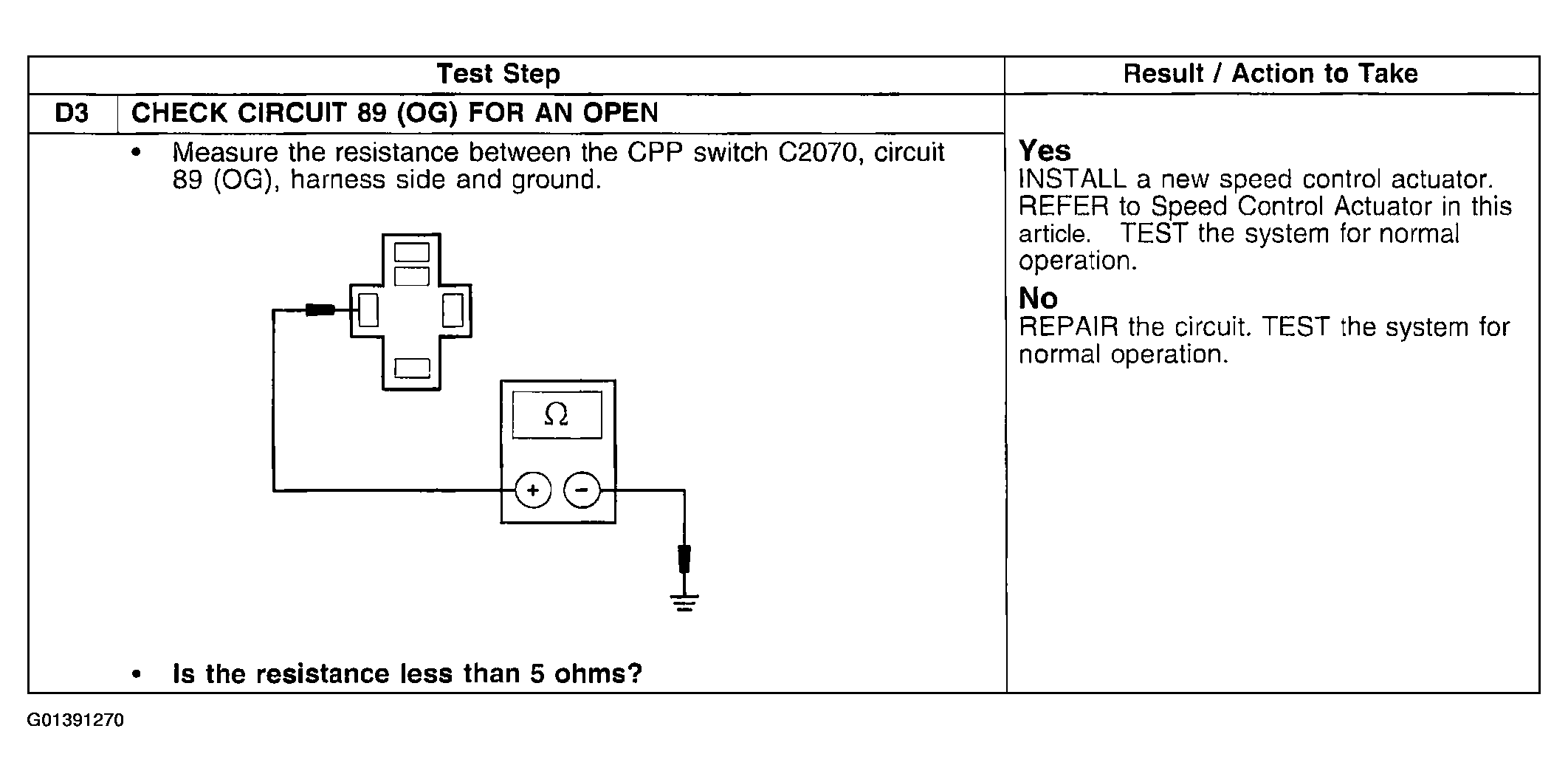

Fig 2: Pinpoint Test D: Speed Control Does Not Disengage When Clutch Is Applied (Steps D3)
