Transfer Case Driven Gear Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Clean the inside of the driven gear of foreign material prior to installation.

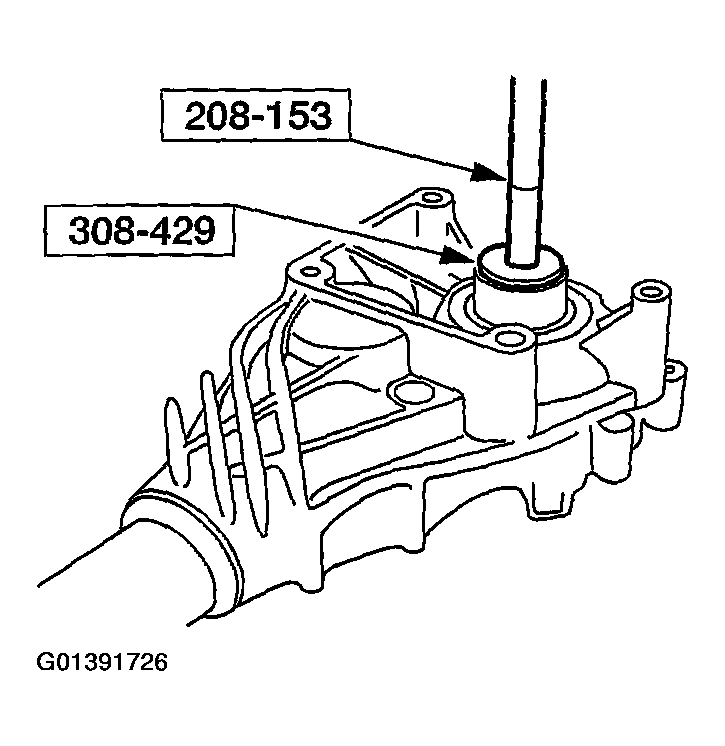

    Fig 1: Installing Driven Gear Seal
    G01391726Courtesy of FORD MOTOR CO.
  1. Using the special tools, install the driven gear seal.
  2. Install the transfer case. For additional information, refer to TRANSFER CASE -3.0L (4V) .
  3. Fill the transfer case. For additional information, refer to TRANSFER CASE DRAINING AND FILLING .
  4. Check the transaxle fluid level. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
