Engine - 6.0L Diesel: Assembly: Engine: Notes

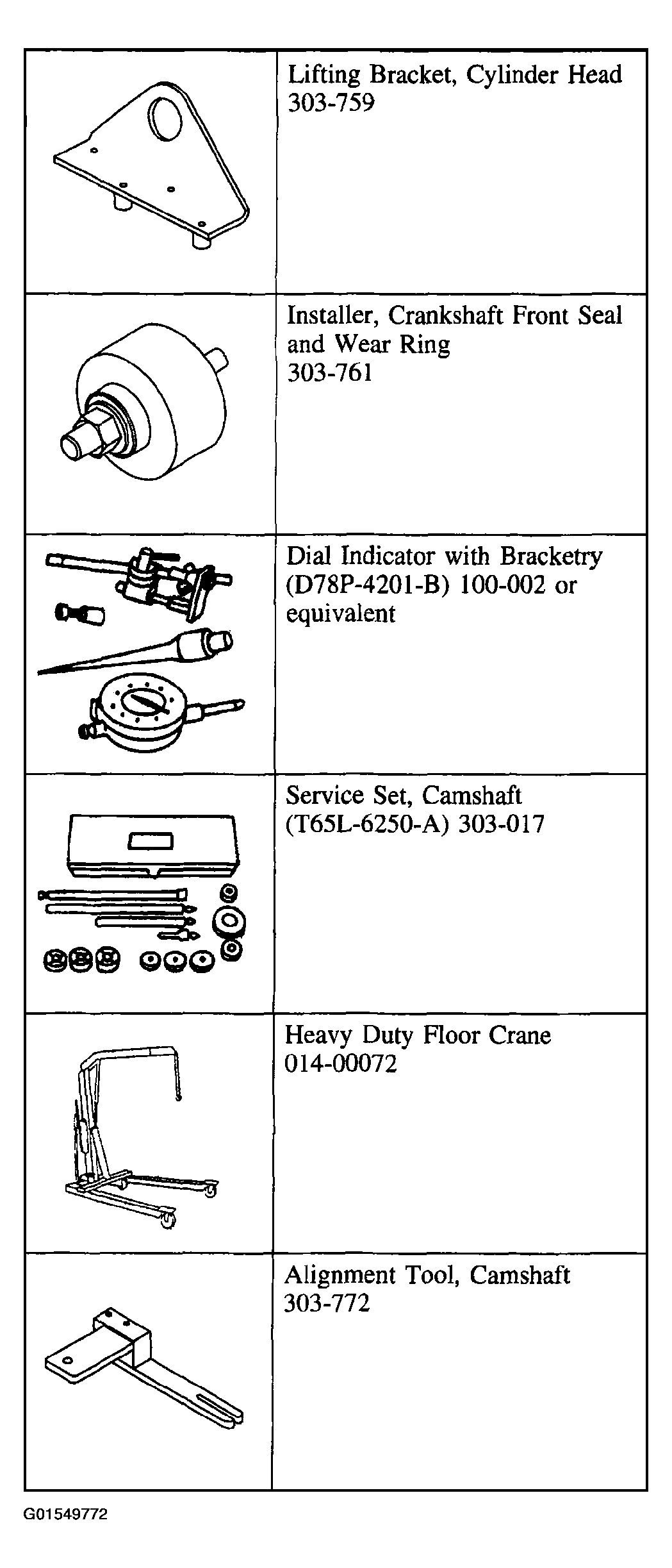

Fig 1: Identifying Special Tools (1 Of 2)
G01549772Courtesy of FORD MOTOR CO.

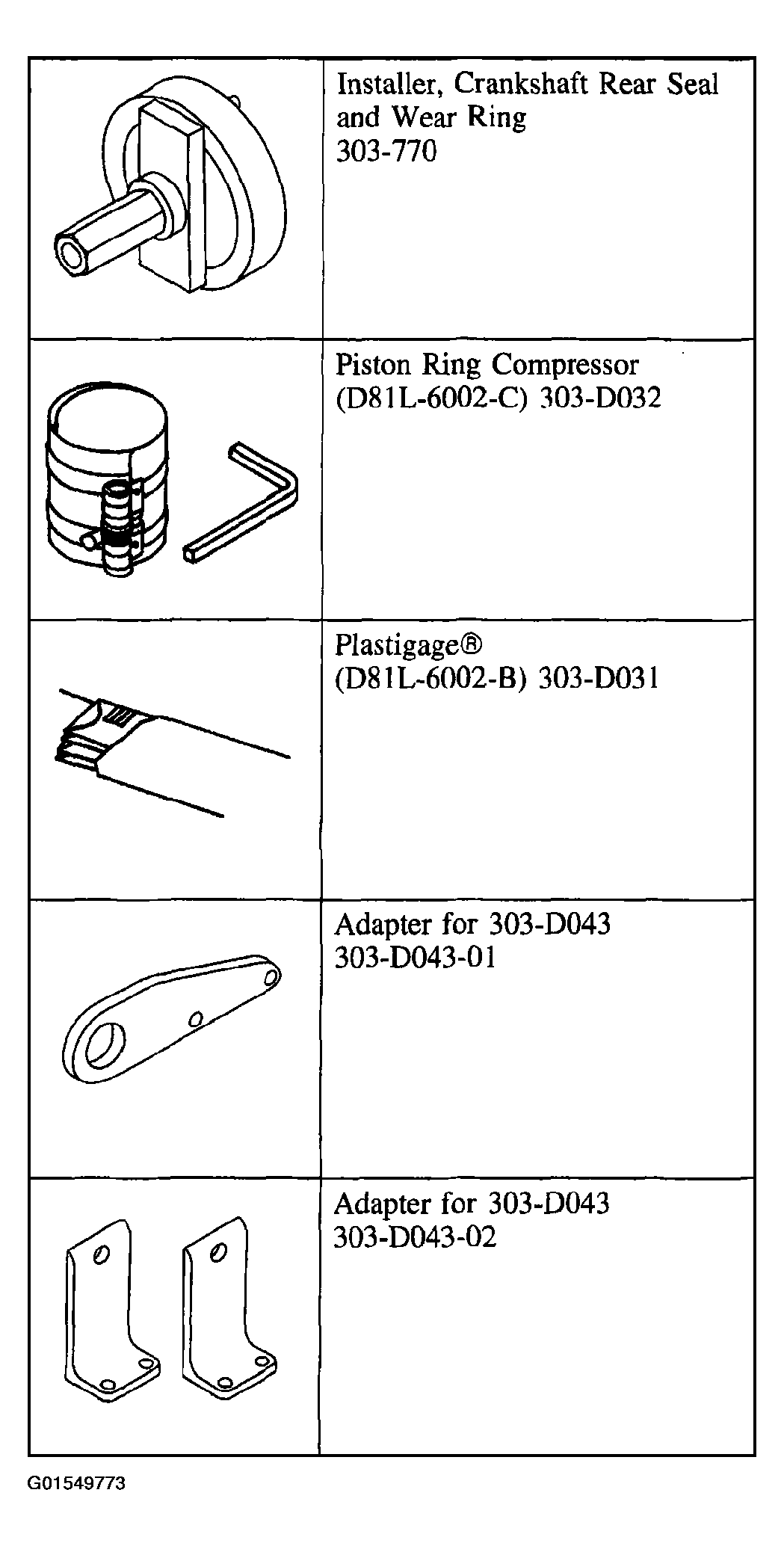

Fig 2: Identifying Special Tools (2 Of 2)
G01549773Courtesy of FORD MOTOR CO.

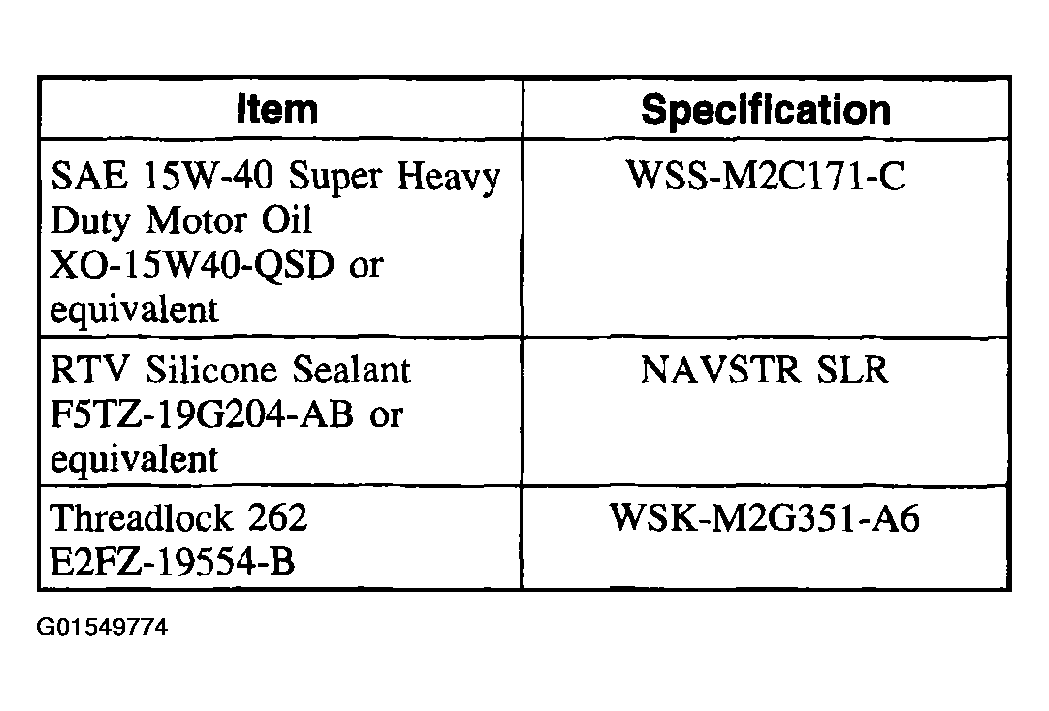

Fig 3: Identifying Materials
G01549774Courtesy of FORD MOTOR CO.
