Home >> Ford >> 2003 >> Escape 3.0 1, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Specifications >> Drive Sprocket Alignment No. 10 Thrust Washer

Drive Sprocket Alignment No. 10 Thrust Washer

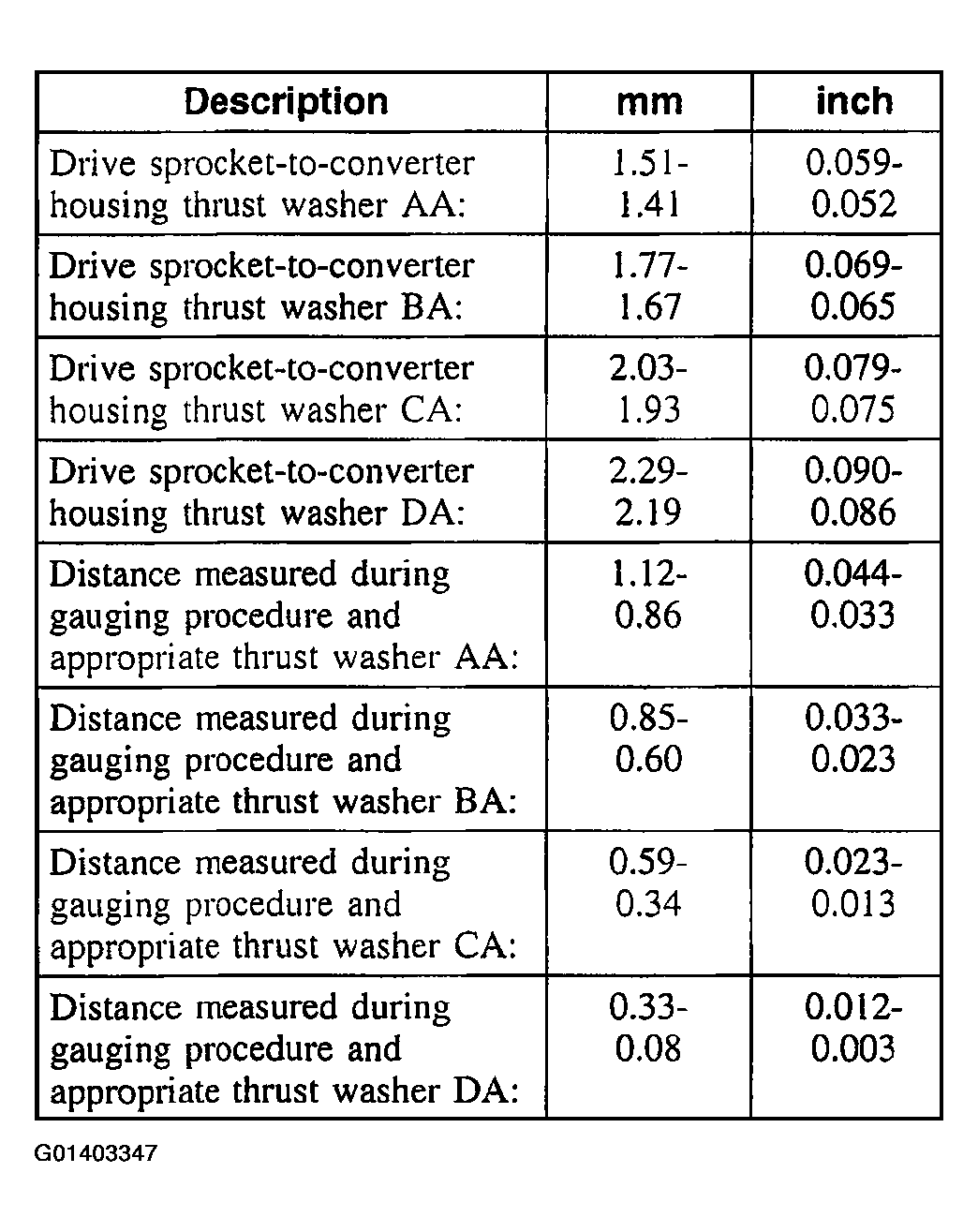

Fig 1: Drive Sprocket Alignment No. 10 Thrust Washer Description

G01403347

Courtesy of FORD MOTOR CO.
