Transmission Range (TR) Sensor: Removal

Place the vehicle in NEUTRAL.

Fig 1: Placing Vehicle In Neutral
Courtesy of FORD MOTOR CO.
Disconnect the battery cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the battery and tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the breather tube and mass air flow (MAF) sensor.

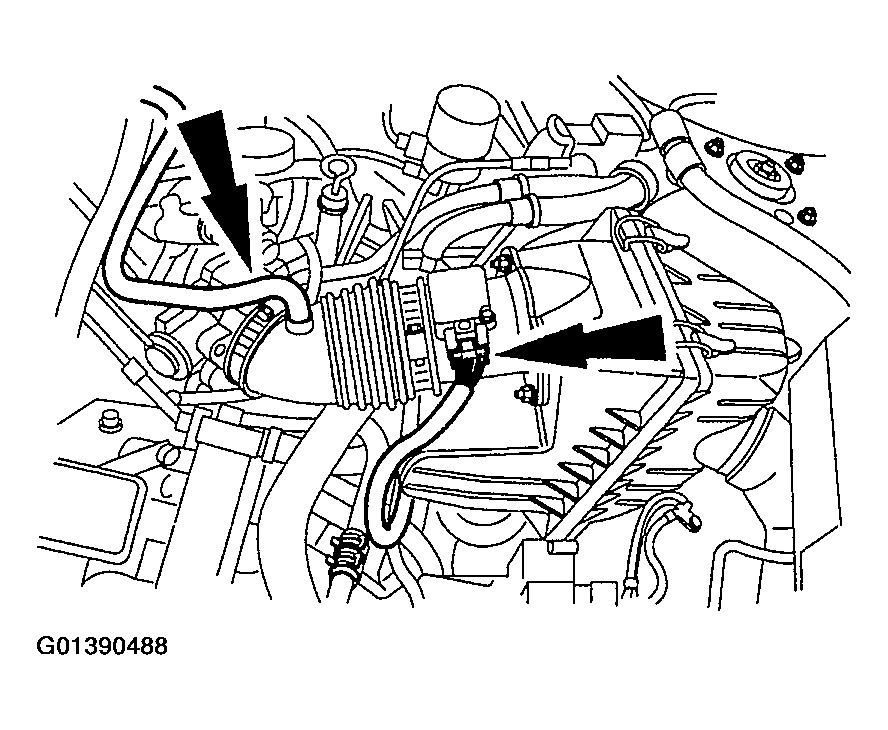

Fig 2: Disconnecting Breather Tube And Mass Air Flow (MAF) Sensor
Courtesy of FORD MOTOR CO.
Remove the intake tube and air cleaner cover.

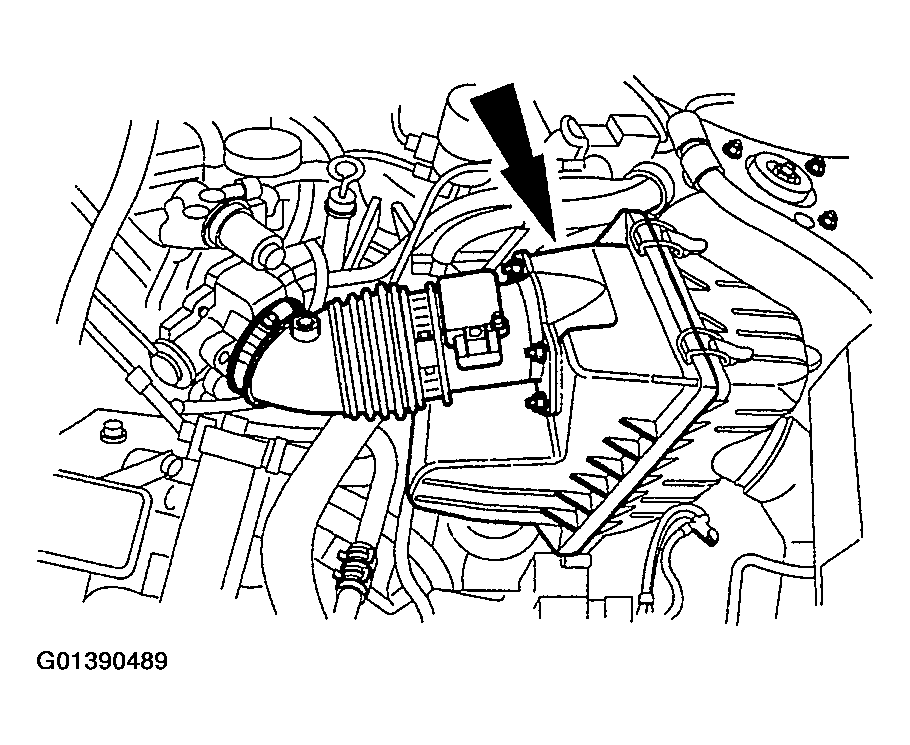

Fig 3: Removing Intake Tube And Air Cleaner Cover
Courtesy of FORD MOTOR CO.
Remove the air cleaner assembly.

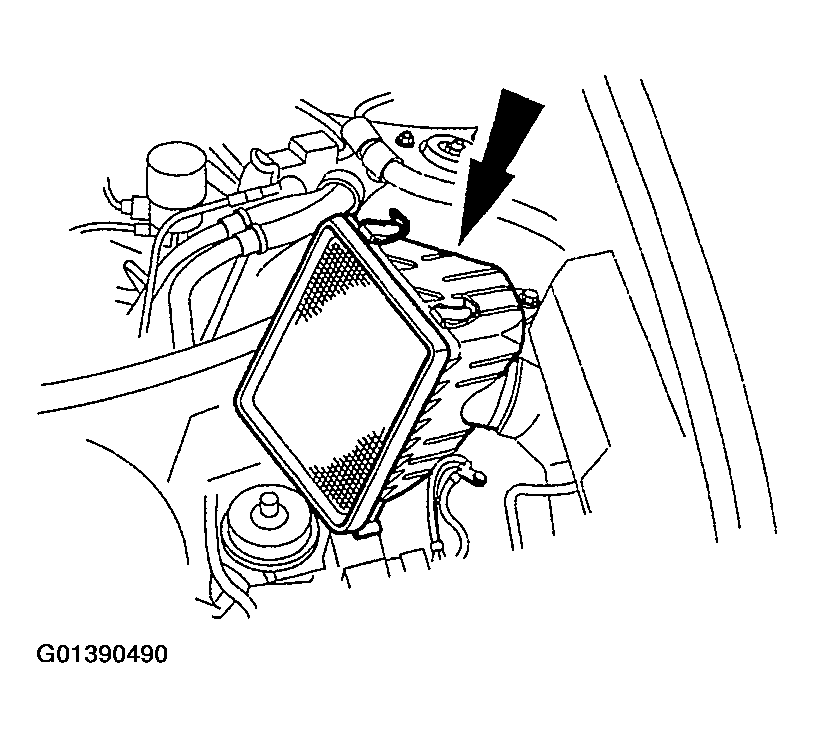

Fig 4: Removing Air Cleaner Assembly
Courtesy of FORD MOTOR CO.

NOTE: It may be necessary to remove the thermostat housing to gain access to the transmission range (TR) sensor

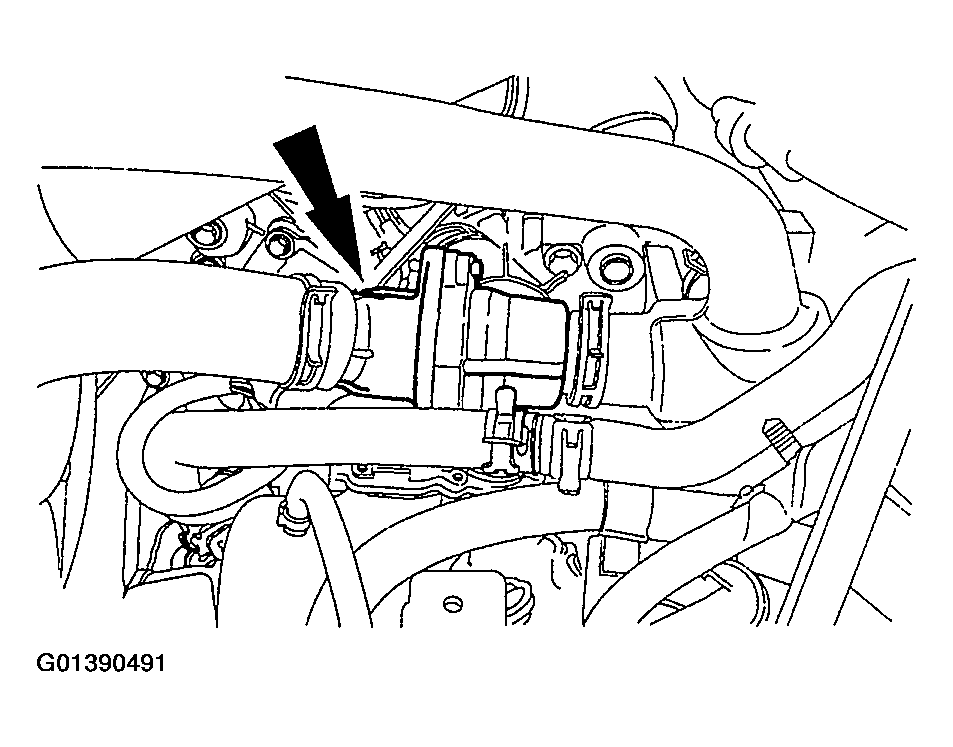

Fig 5: Removing Thermostat Housing

Courtesy of FORD MOTOR CO.

Remove the thermostat housing. For additional information, refer to ENGINE COOLING .
Remove the transmission range (TR) sensor.
1. Disconnect the TR sensor electrical connector.
2. Remove the bolts.
3. Remove the TR sensor.

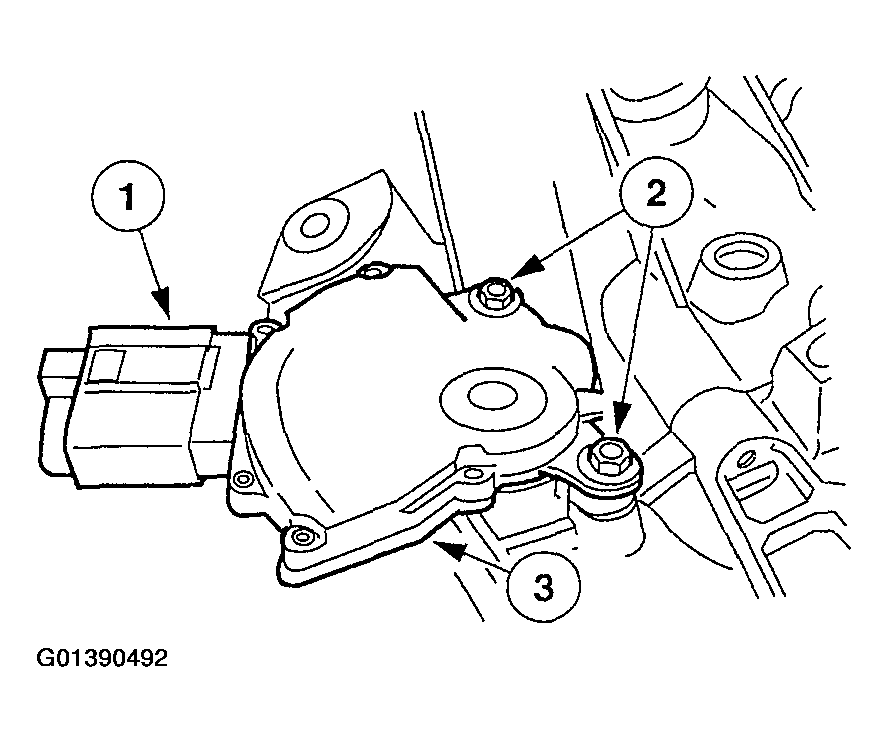

  Fig 6: Removing Transmission Range (TR) Sensor
  Courtesy of FORD MOTOR CO.
