Transaxle Support Insulator -LH: Removal

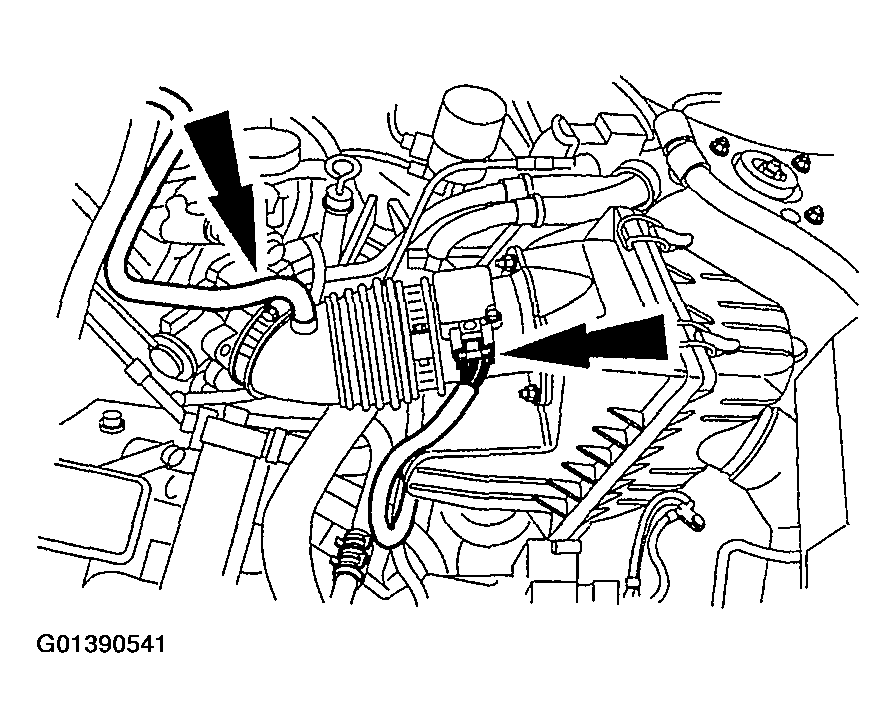

Disconnect the breather tube and mass air flow (MAF) sensor.

Fig 1: Disconnecting Breather Tube And Mass Air Flow (MAF) Sensor
Courtesy of FORD MOTOR CO.

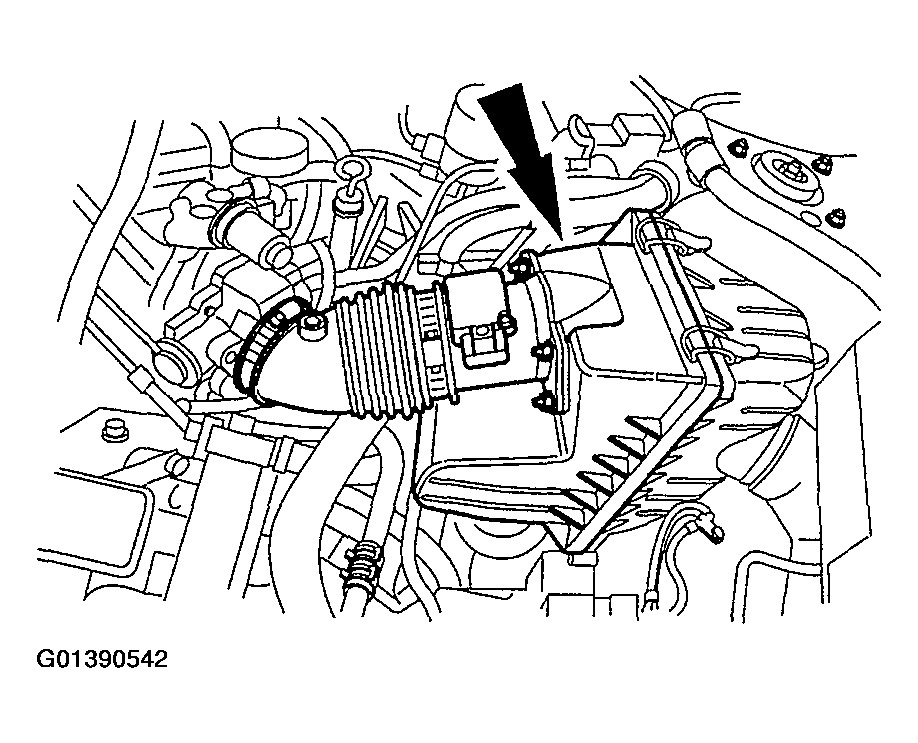

Remove the intake tube and air cleaner cover.

Fig 2: Removing Intake Tube And Air Cleaner Cover
Courtesy of FORD MOTOR CO.

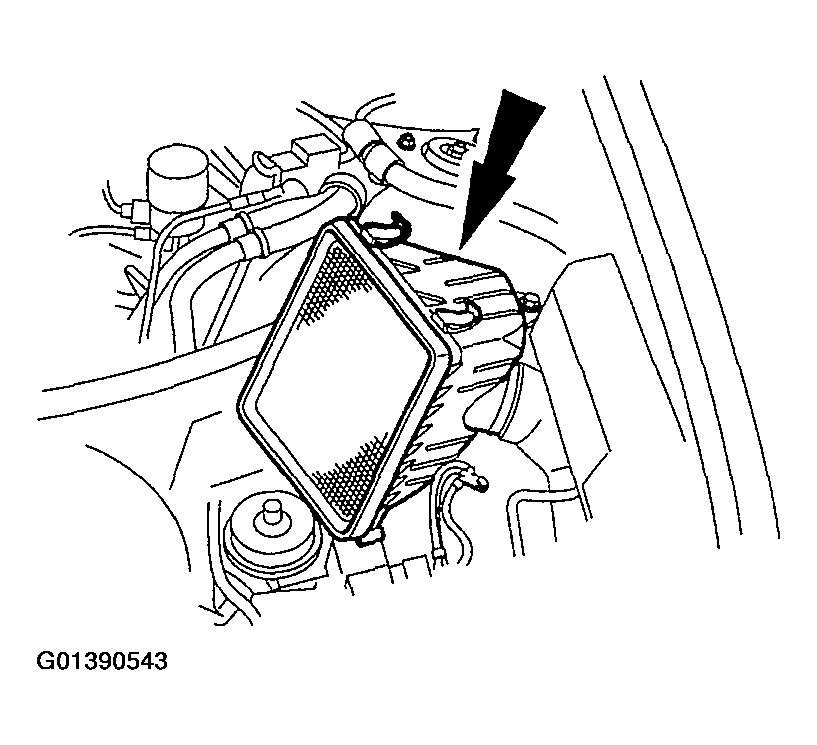

Remove the air cleaner assembly.

Fig 3: Removing Air Cleaner Assembly
Courtesy of FORD MOTOR CO.

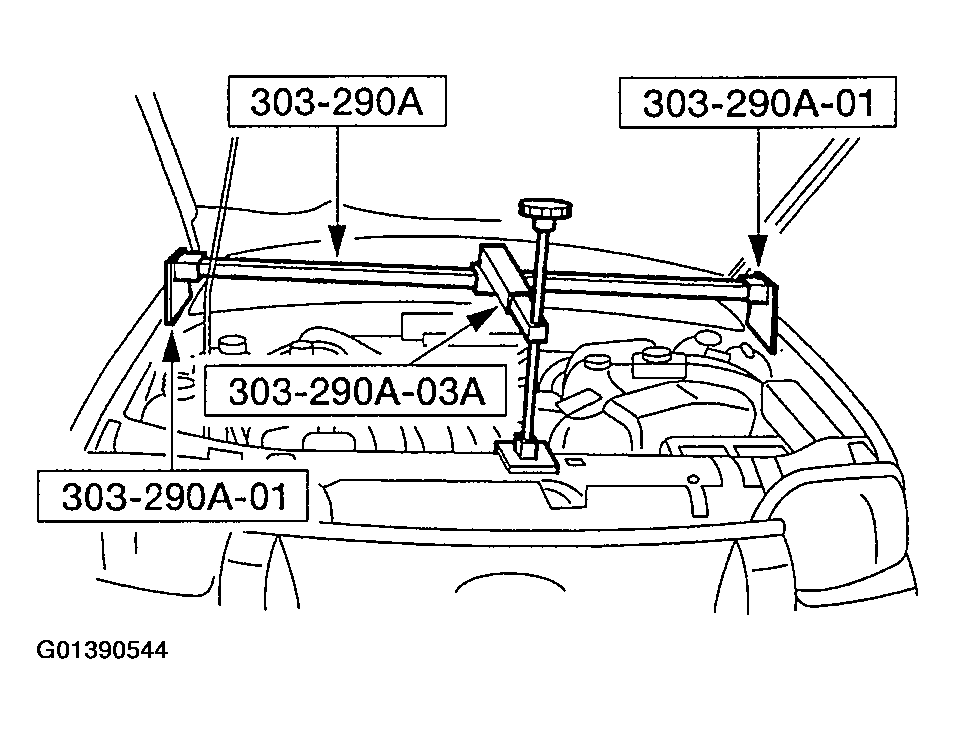

Install the special tools.

Fig 4: Installing Special Tools
Courtesy of FORD MOTOR CO.

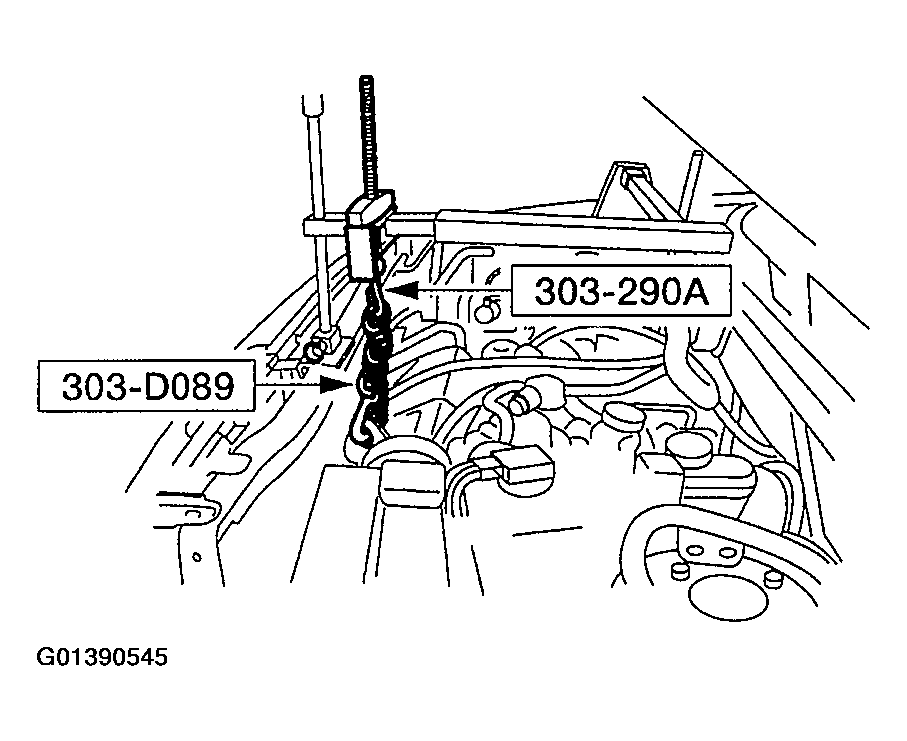

Install the special tools.

Fig 5: Installing Special Tools
Courtesy of FORD MOTOR CO.

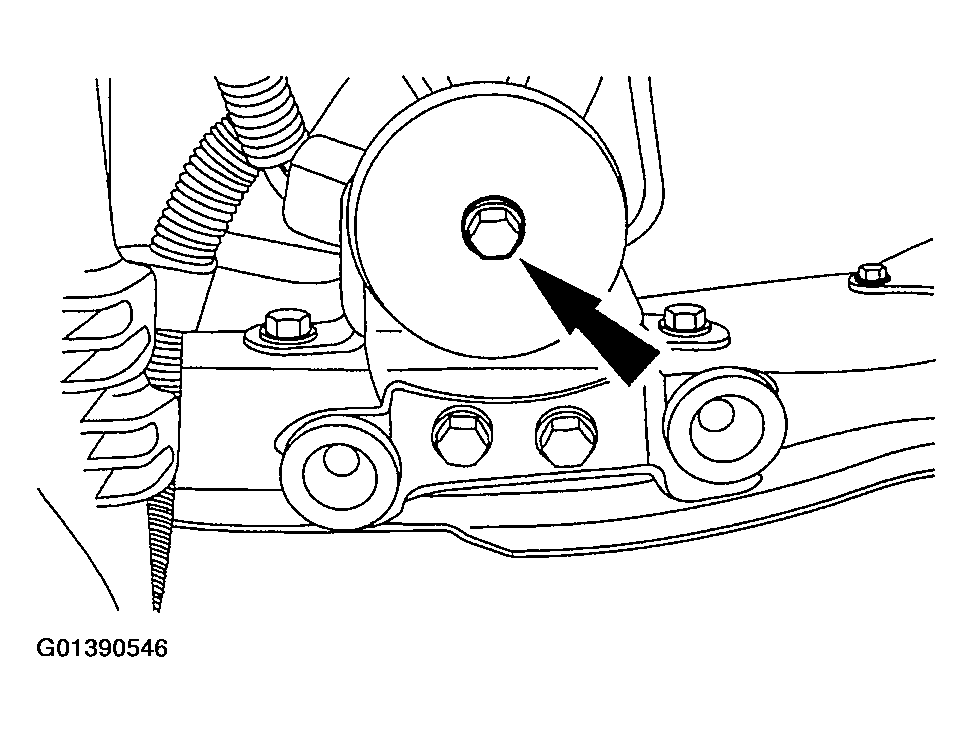

Remove the upper transaxle mount bolt.

Fig 6: Removing Upper Transaxle Mount Bolt
Courtesy of FORD MOTOR CO.

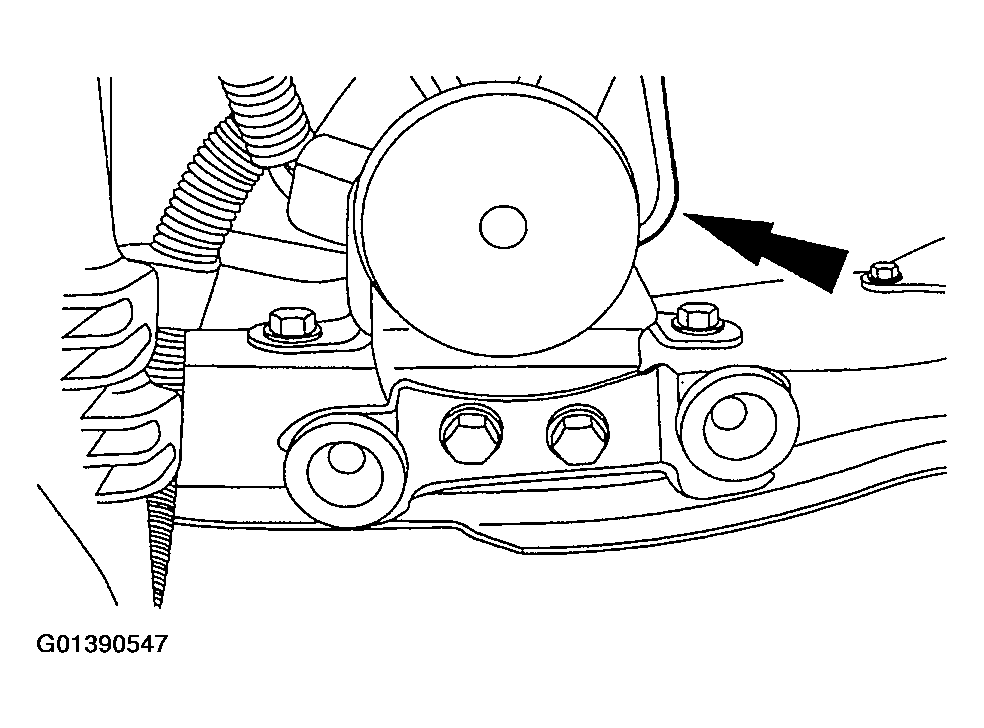

Remove the upper transaxle insulator.

Fig 7: Removing Upper Transaxle Insulator
Courtesy of FORD MOTOR CO.
Remove the top and bottom mount cups.

Fig 8: Removing Top And Bottom Mount Cups
Courtesy of FORD MOTOR CO.
