Planetary Gearsets: Notes

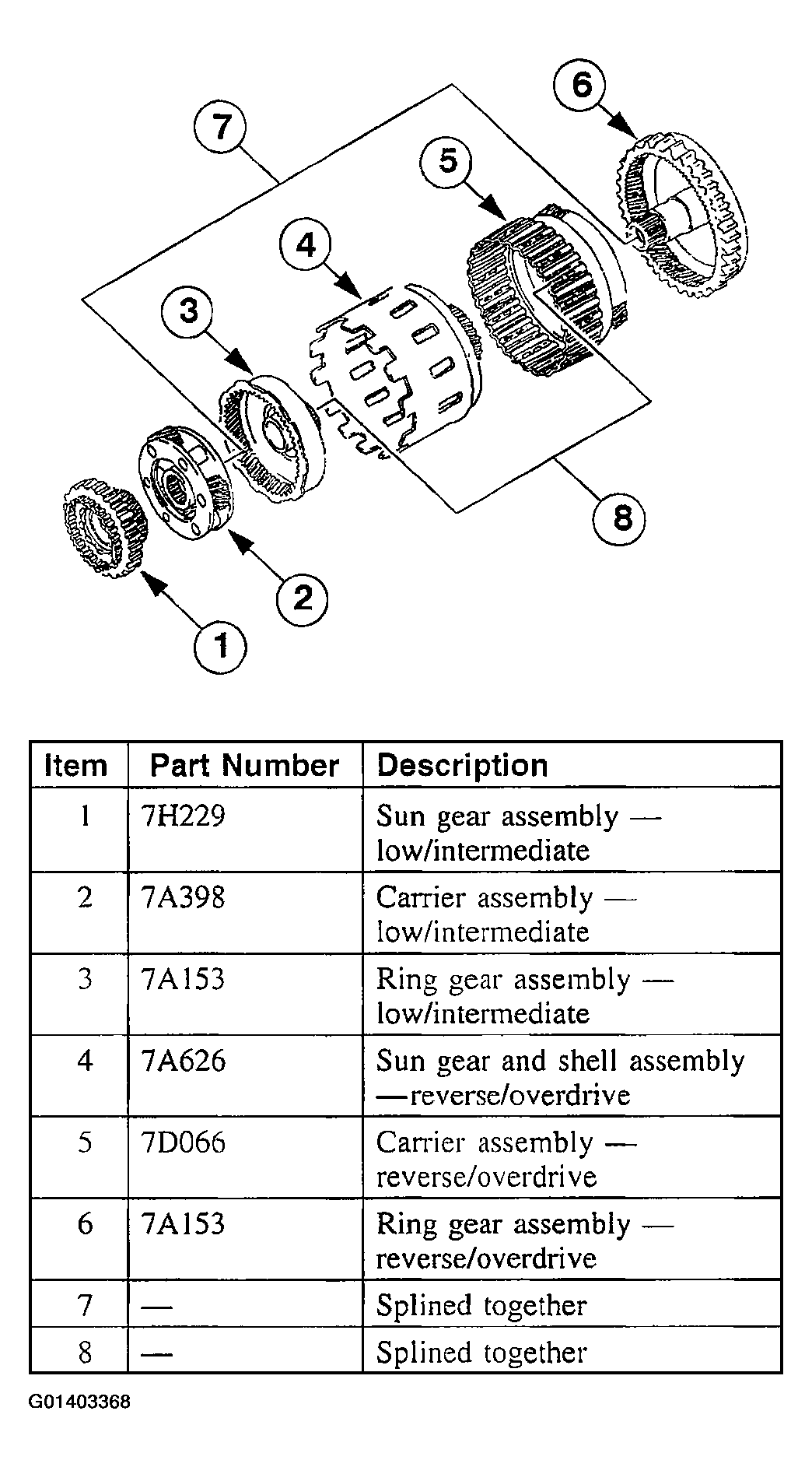

The automatic transaxle has two planetary gearsets to provide operation in reverse and four forward speeds. The gearsets are comprised of the following components:
- Low/intermediate sun gear assembly.
- Low/intermediate carrier assembly.
- Low/intermediate ring gear assembly.
- Reverse/overdrive sun gear and shell assembly.
- Reverse/overdrive carrier assembly.
- Reverse/overdrive ring gear assembly.
