Wipers and Washers: Notes

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SYSTEM WIRING DIAGRAMS for schematic and connector information.

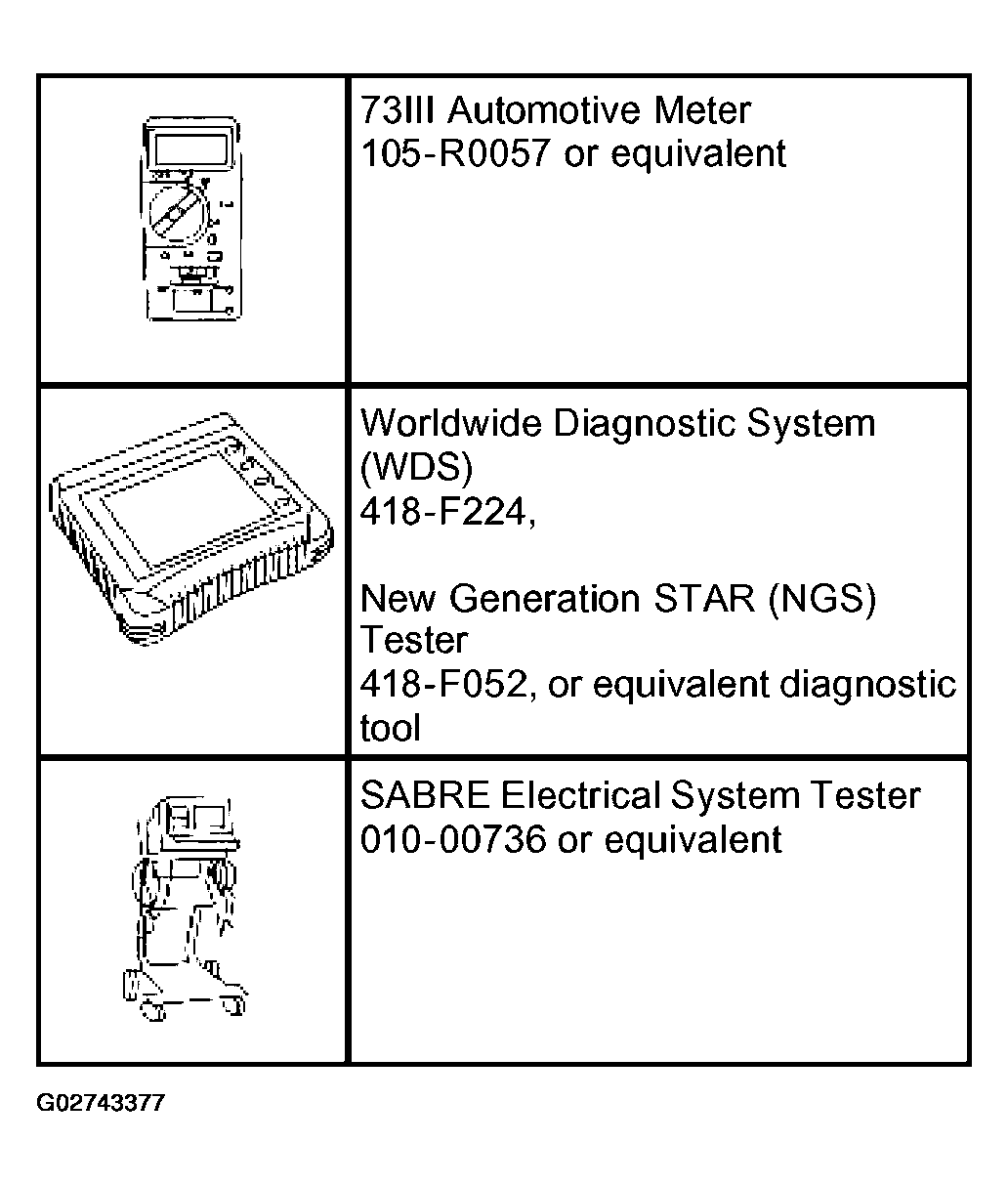

Fig 1: Identifying Special Tools
G02743377Courtesy of FORD MOTOR CO.
