Section 428 (Audio System - Audio Unit)
>>
Specifications
>>
Torque Specifications
Torque Specifications
WARNING:
This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
Description
Nm
lb-in
Ground strap nut and bolt
9
80

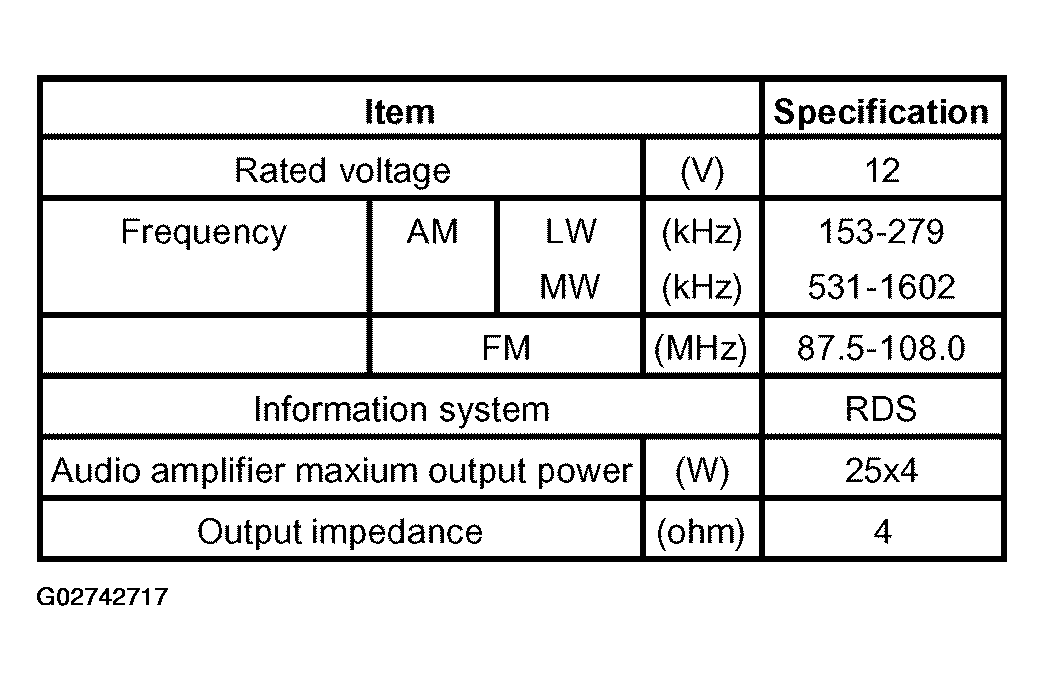

Fig 1: Audio System Specifications
Courtesy of FORD MOTOR CO.

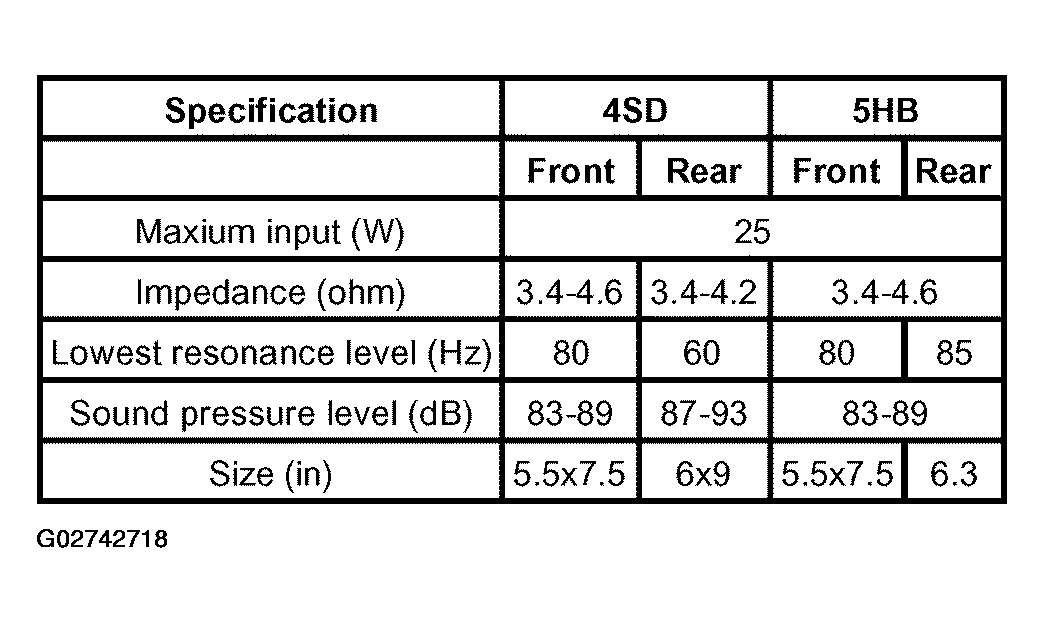

Fig 2: Speaker Specifications
Courtesy of FORD MOTOR CO.
