Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

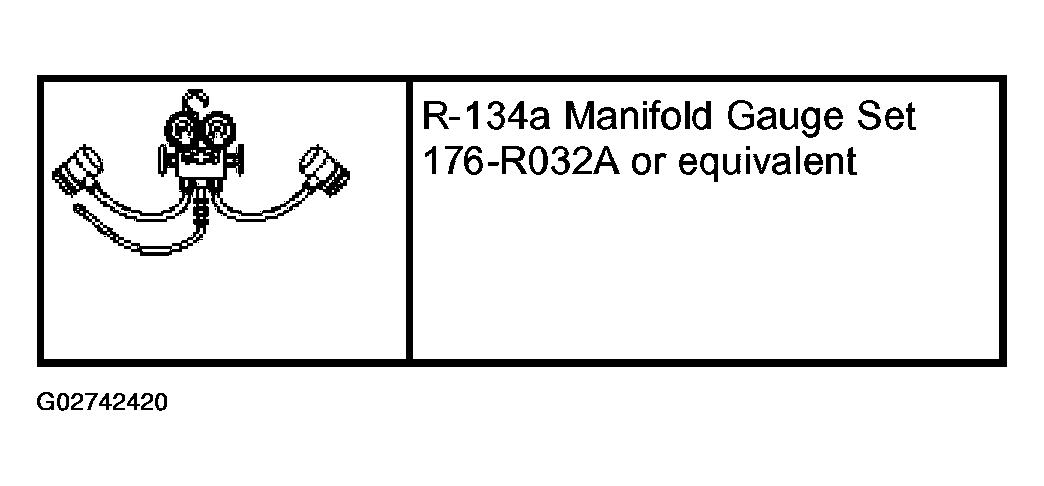

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Turn both valves on the R-134a Manifold Gauge Set all the way to the left to close the low-pressure and high-pressure hoses to the center manifold and center hose.

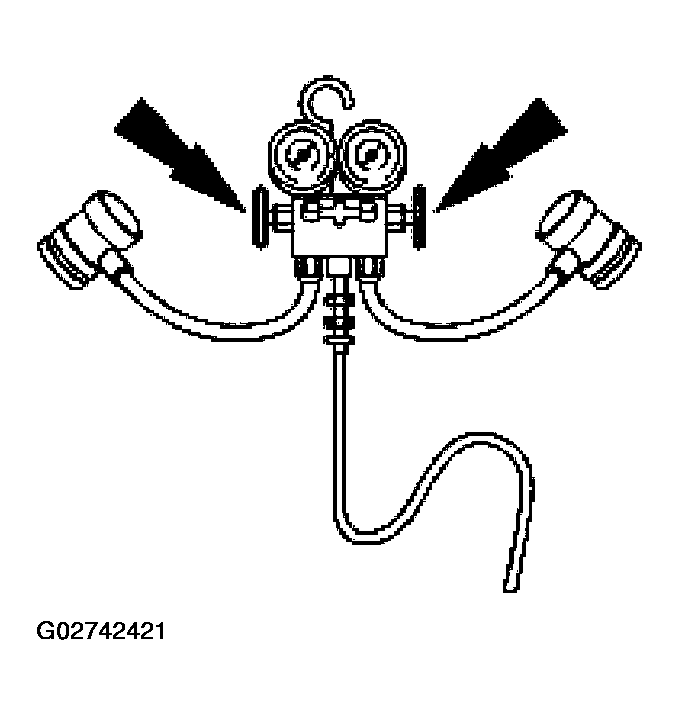

Fig 2: Locating Valves On R-134a Manifold Gauge Set
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.

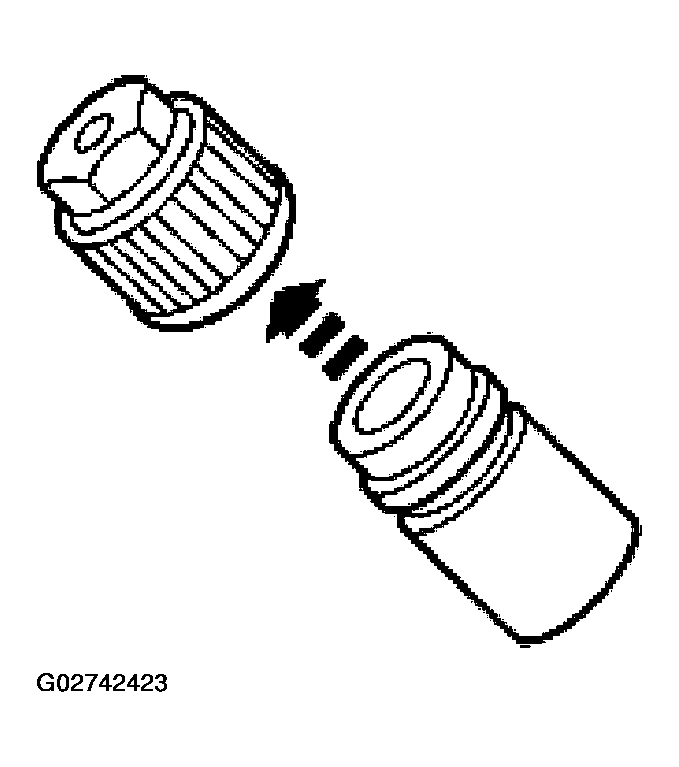

Fig 3: Removing A/C Charging Valve Cap
Courtesy of FORD MOTOR CO.
Remove the A/C charging valve cap from the high-pressure service gauge port valve.

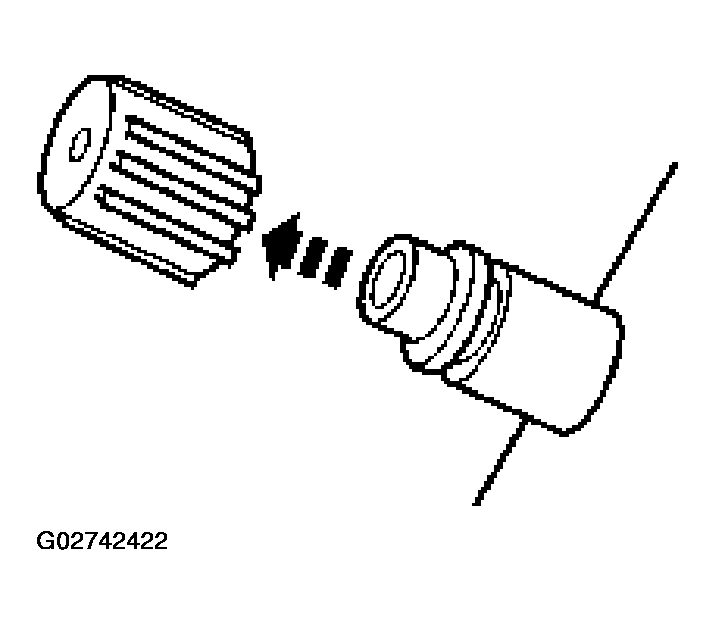

Fig 4: Removing A/C Charging Valve Cap From High-Pressure Service Gauge Port Valve
Courtesy of FORD MOTOR CO.
Connect the R-134a manifold gauge set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

Fig 5: Connecting R-134a Hose (1 Of 2)
Courtesy of FORD MOTOR CO.
Connect the R-134a manifold gauge set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

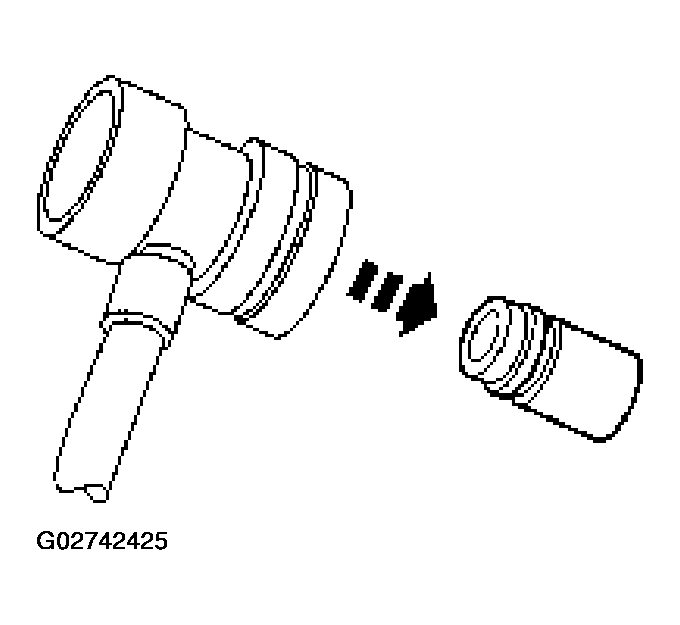

Fig 6: Connecting R-134a Hose (2 Of 2)
Courtesy of FORD MOTOR CO.
