Valve Tappet: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Components removed should be marked for location. Make sure components are installed in the correct location.
    NOTE: Lubricate the valve tappet with clean engine oil before installing.

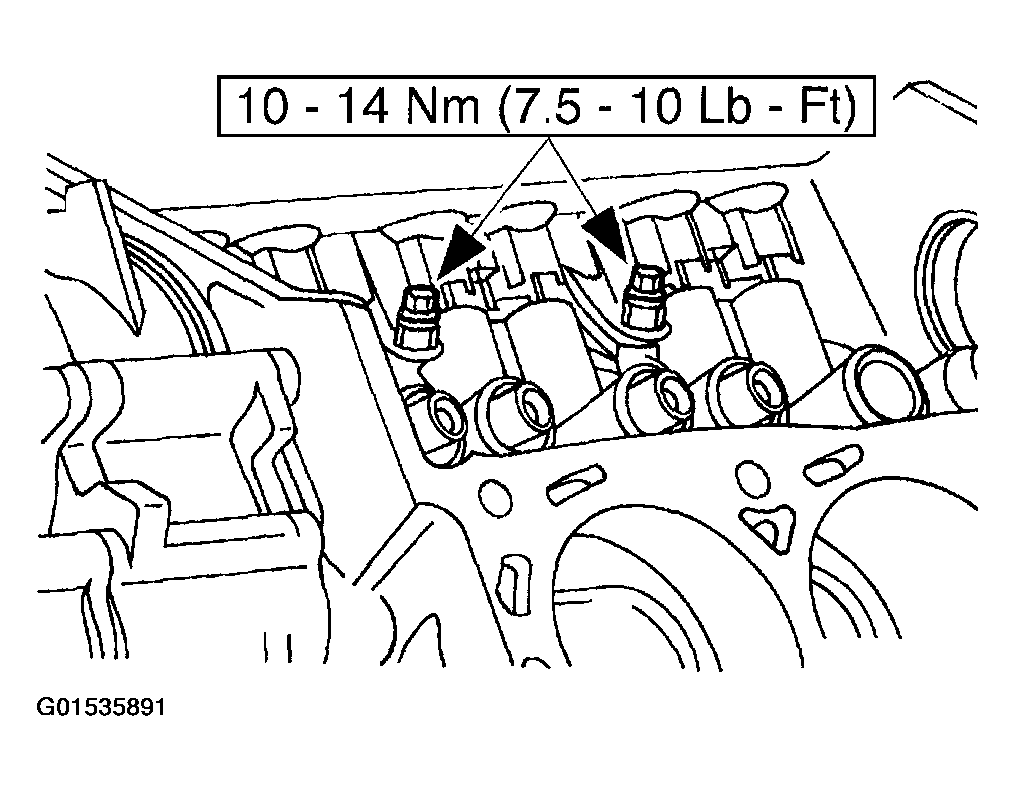

    Fig 1: Installing Valve Tappet Guide And Valve Tappet
    G01535891Courtesy of FORD MOTOR CO.

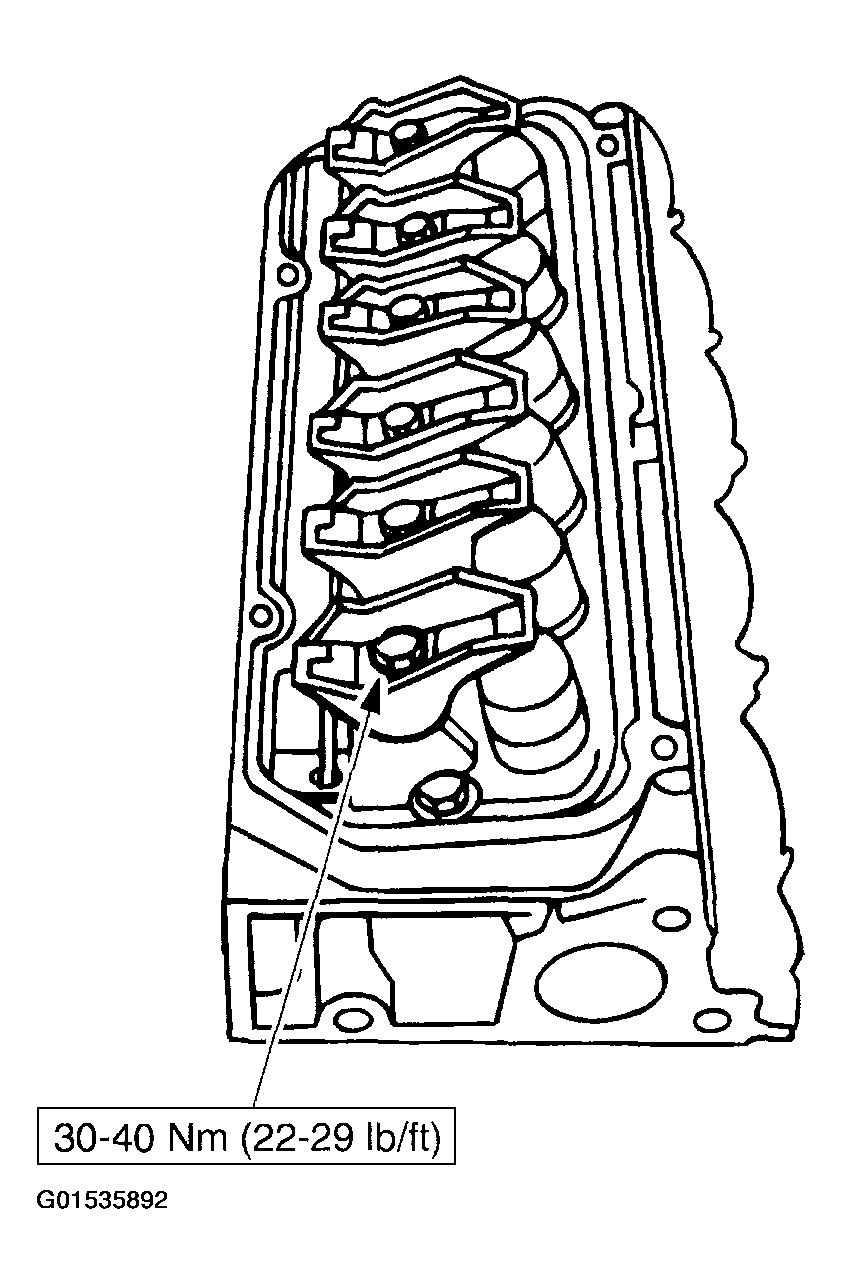

    Fig 2: Installing Rocker Arms
    G01535892Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
