Valve Cover RH: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

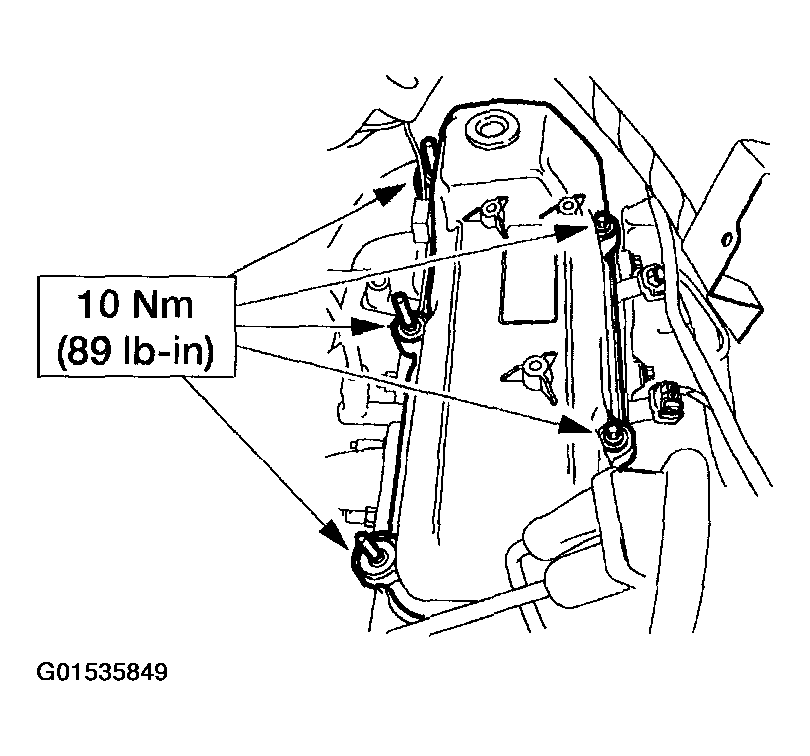

Install a new gasket and the valve cover.

Fig 1: Installing Valve Cover
Courtesy of FORD MOTOR CO.

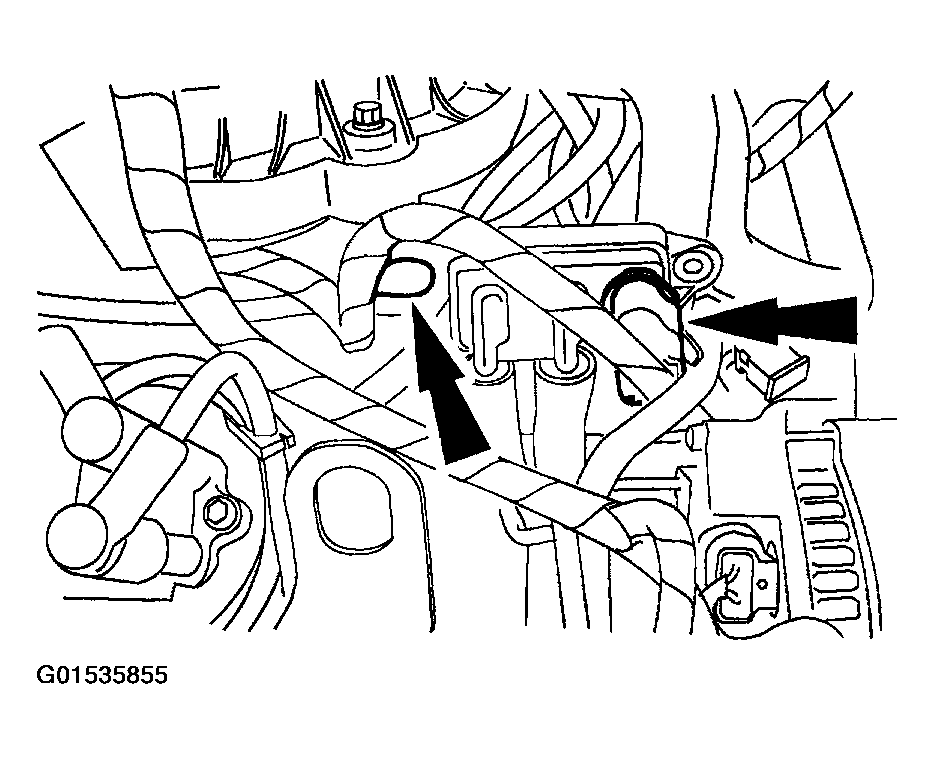

Position the spark plug wires and connect the separators.

Fig 2: Installing Spark Plug Wires
Courtesy of FORD MOTOR CO.
Install the engine lifting eye.

Fig 3: Installing Engine Lifting Eye
Courtesy of FORD MOTOR CO.

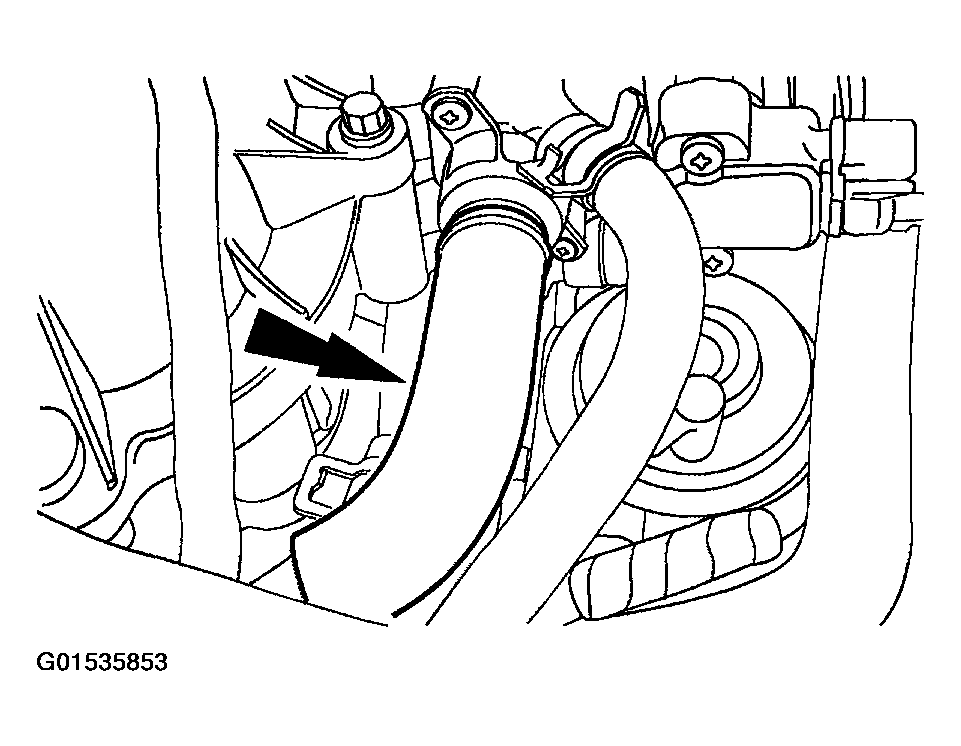

Install the positive crankcase ventilation (PCV) valve heater water hose assembly.

Fig 4: Installing Positive Crankcase Ventilation (PCV) Valve Heater Water Hose Assembly
Courtesy of FORD MOTOR CO.

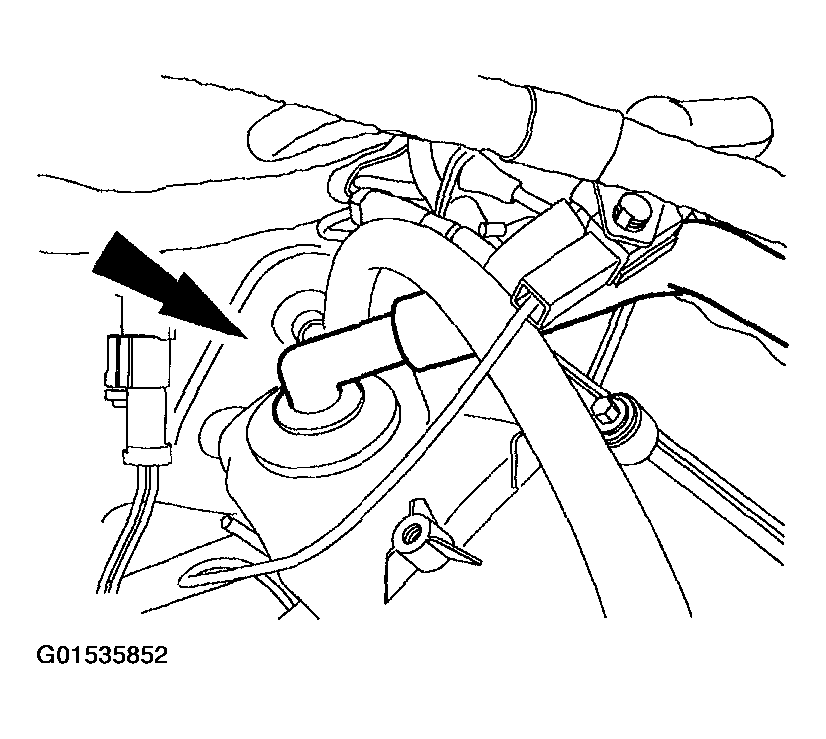

Connect the PCV hose at the intake.

Fig 5: Connecting PCV Hose At Intake
Courtesy of FORD MOTOR CO.

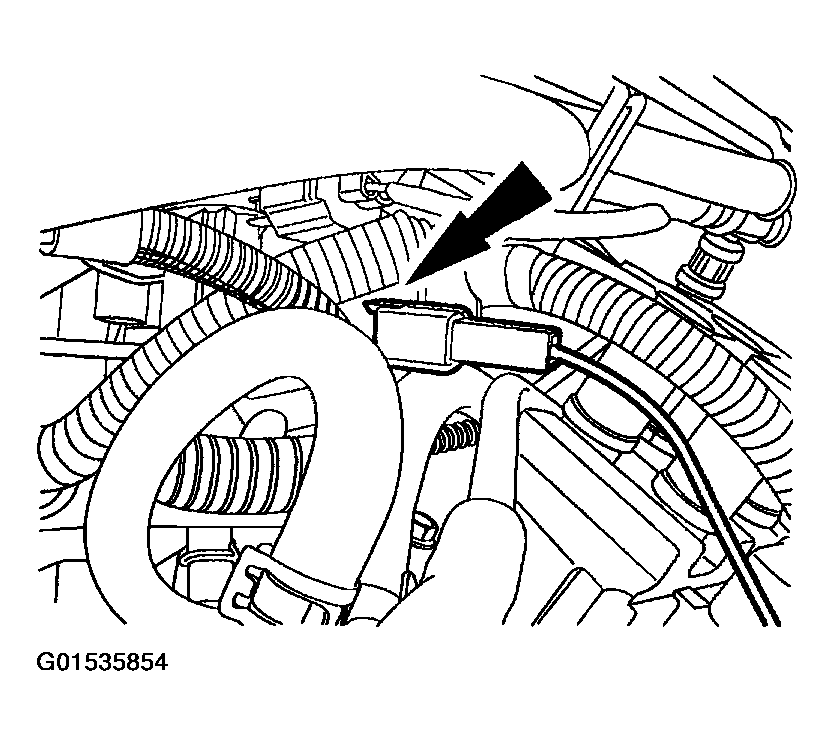

Position and connect the radio capacitor.

Fig 6: Connecting Radio Capacitor
Courtesy of FORD MOTOR CO.
Install the ignition coil. For additional information, refer to IGNITION COILS .

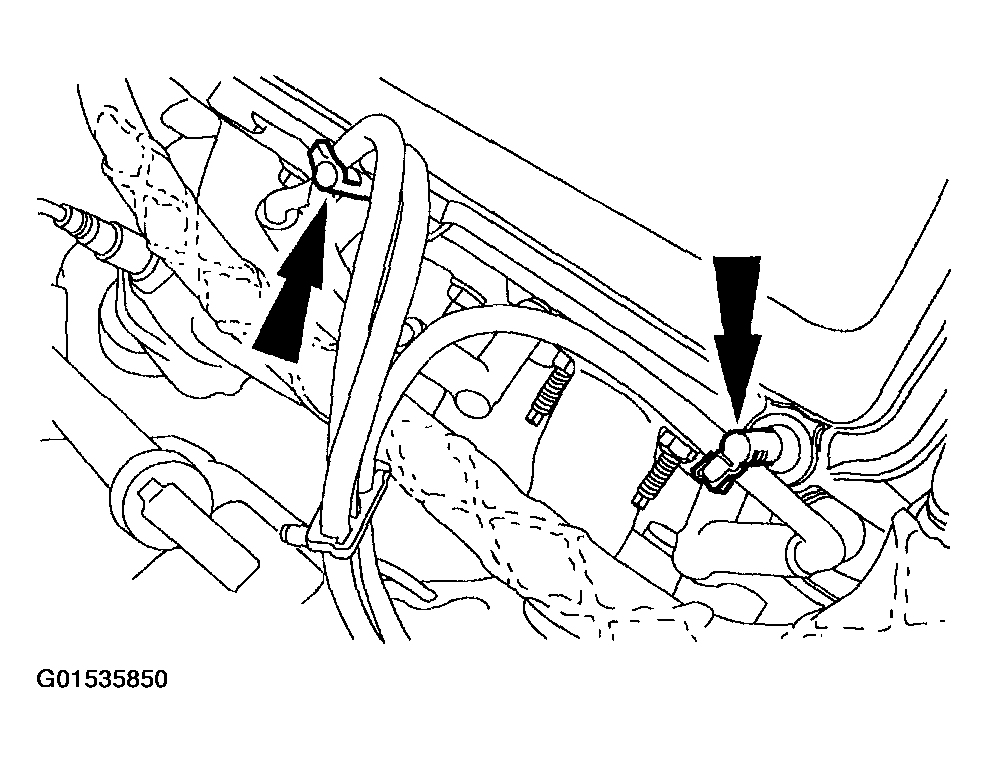

Connect the differential pressure feedback EGR system electrical connector and the wiring harness pin-type retainer.

Fig 7: Connecting Differential Pressure Feedback EGR System Electrical Connector
Courtesy of FORD MOTOR CO.
Install the air cleaner assembly.
Connect the battery.
Install the engine cover. For additional information, refer to FRONT END BODY PANELS .
