Valve Cover LH: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve cover and new gasket.

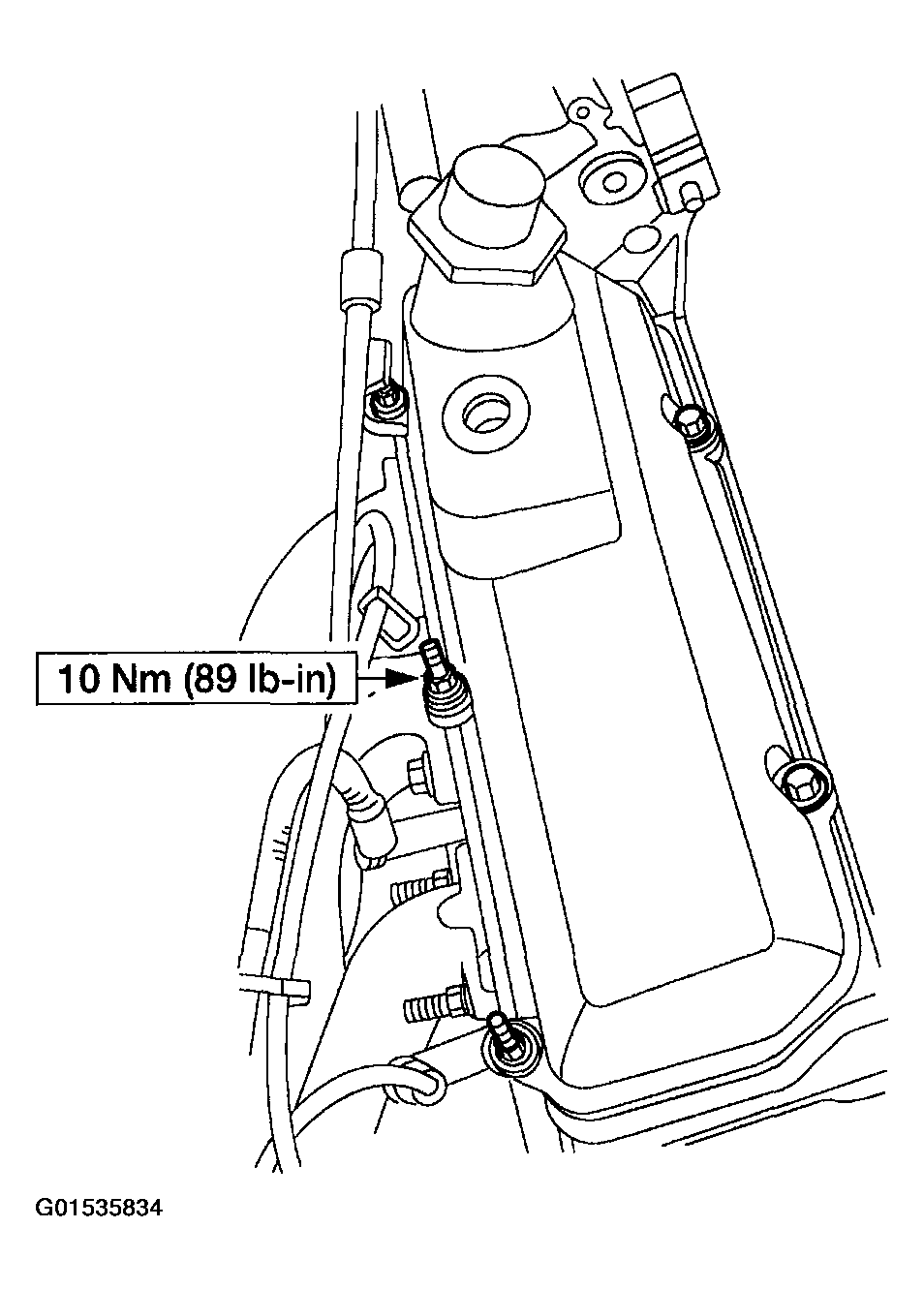

    Fig 1: Installing Valve Cover
    G01535834Courtesy of FORD MOTOR CO.
  2. Connect the ignition wires to the spark plugs and the separators.

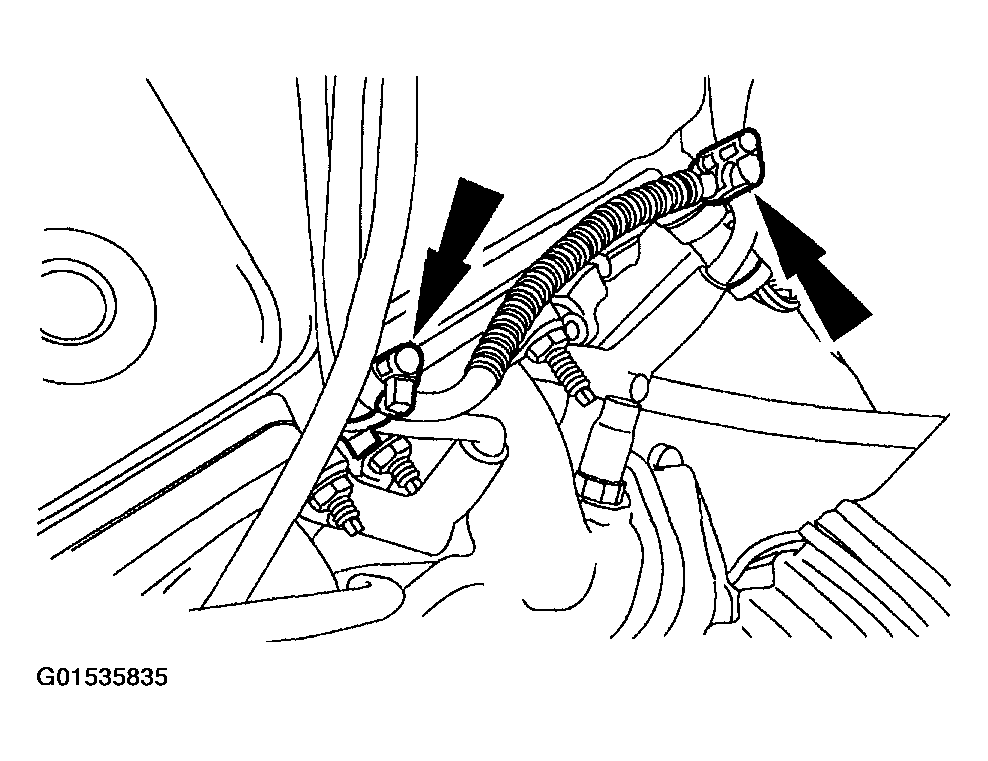

    Fig 2: Connecting Ignition Wires To Spark Plugs
    G01535835Courtesy of FORD MOTOR CO.
  3. Install the oil level indicator tube.
    • Use a new O-ring seal.

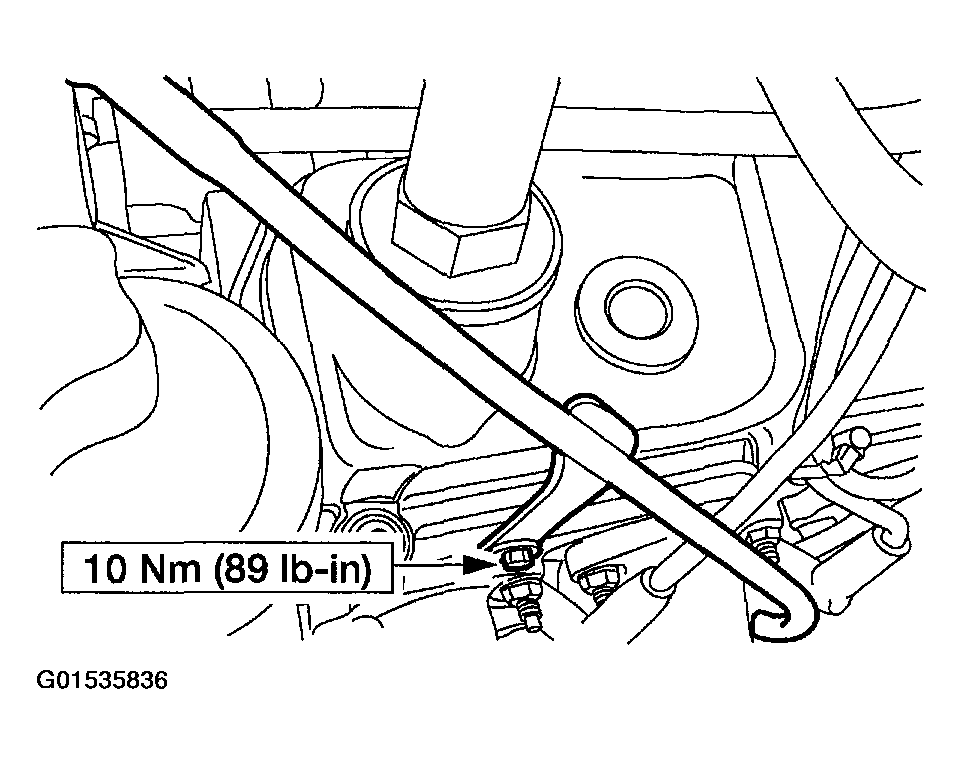

    Fig 3: Installing Oil Level Indicator Tube
    G01535836Courtesy of FORD MOTOR CO.
  4. Install the oil level indicator tube extension and oil level indicator.

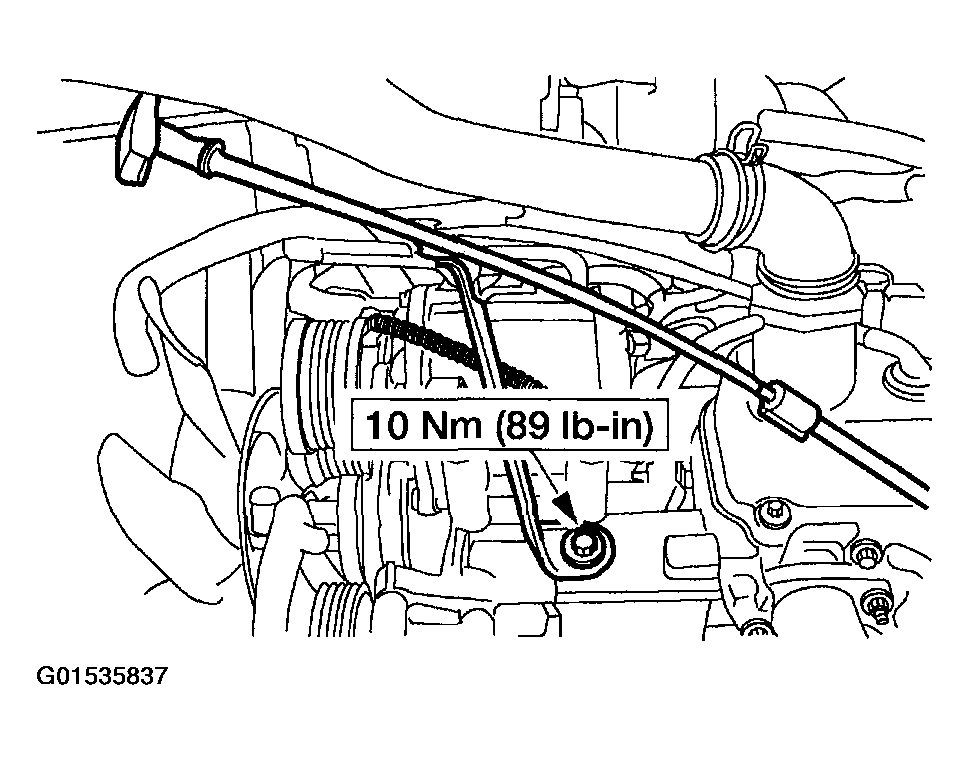

    Fig 4: Installing Oil Level Indicator Tube Extension
    G01535837Courtesy of FORD MOTOR CO.
  5. Install the engine lifting eye.

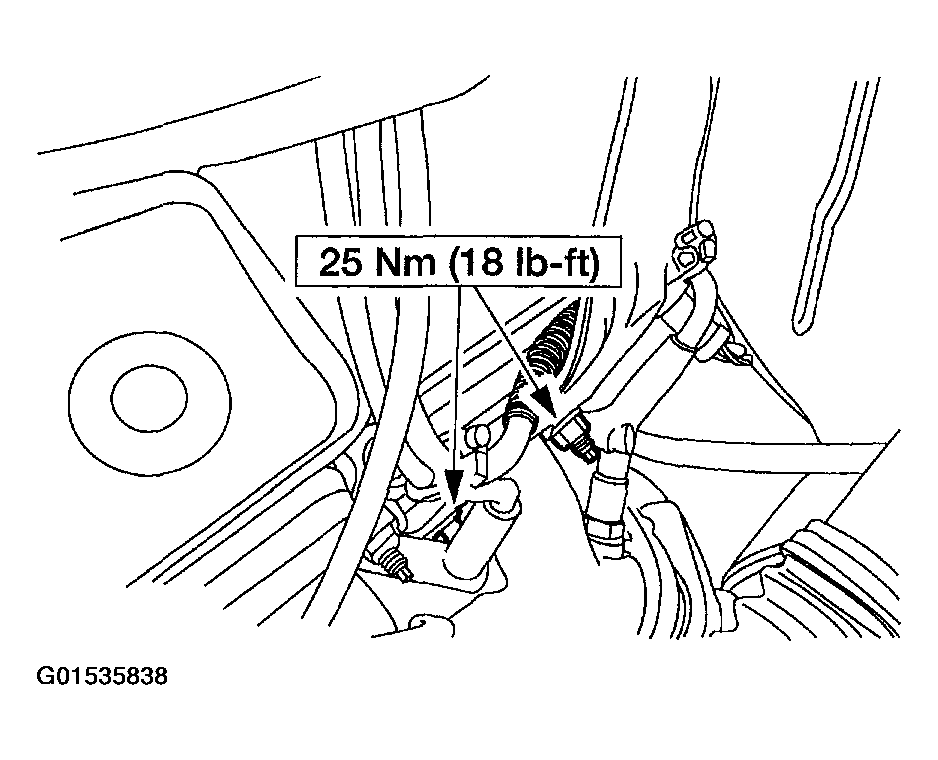

    Fig 5: Installing Engine Lifting Eye
    G01535838Courtesy of FORD MOTOR CO.
  6. Connect the following:
    1. The oil filler tube
    2. The PCV fresh air tube

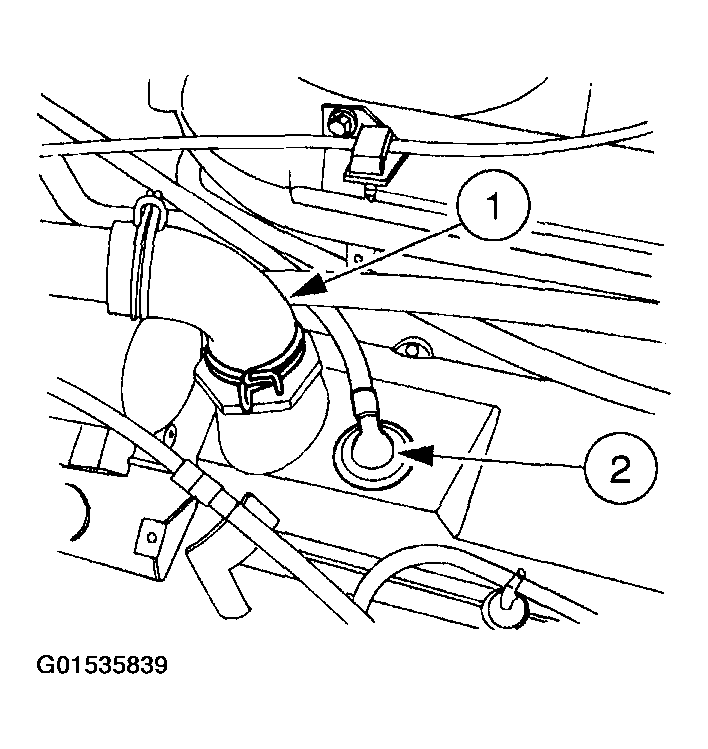

    Fig 6: Connecting Oil Filler Tube
    G01535839Courtesy of FORD MOTOR CO.
  7. Connect the brake booster vacuum hose.

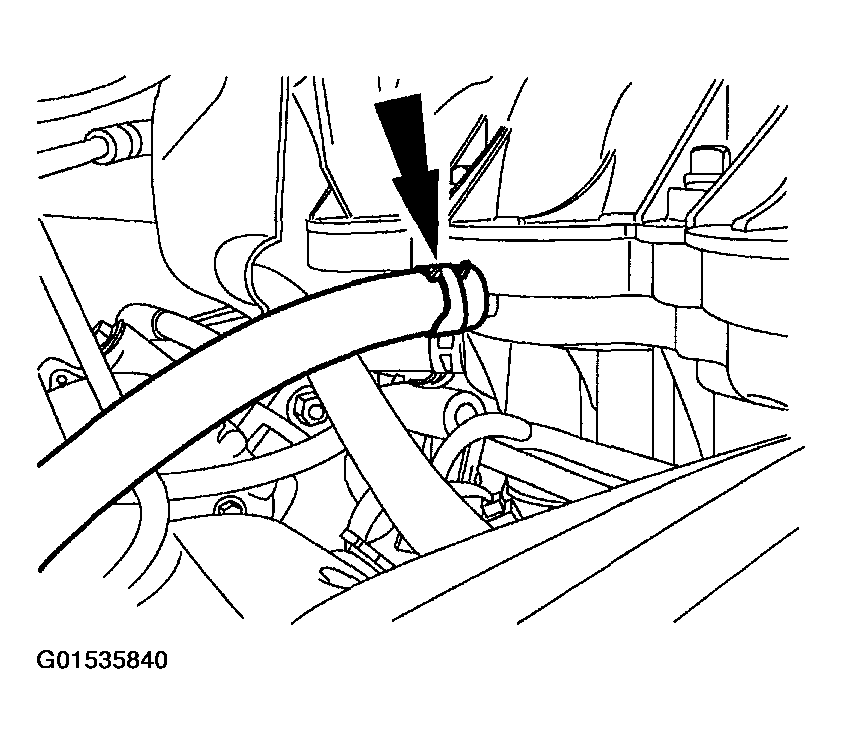

    Fig 7: Connecting Brake Booster Vacuum Hose
    G01535840Courtesy of FORD MOTOR CO.
  8. Install the air cleaner assembly and air cleaner outlet tube.
  9. Connect the battery.
  10. Install the engine cover. For additional information, refer to FRONT END BODY PANELS .
