Intake Manifold - Spacer Assembly: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the intake manifold spacer assembly mounting gaskets. Install new gaskets, if necessary.

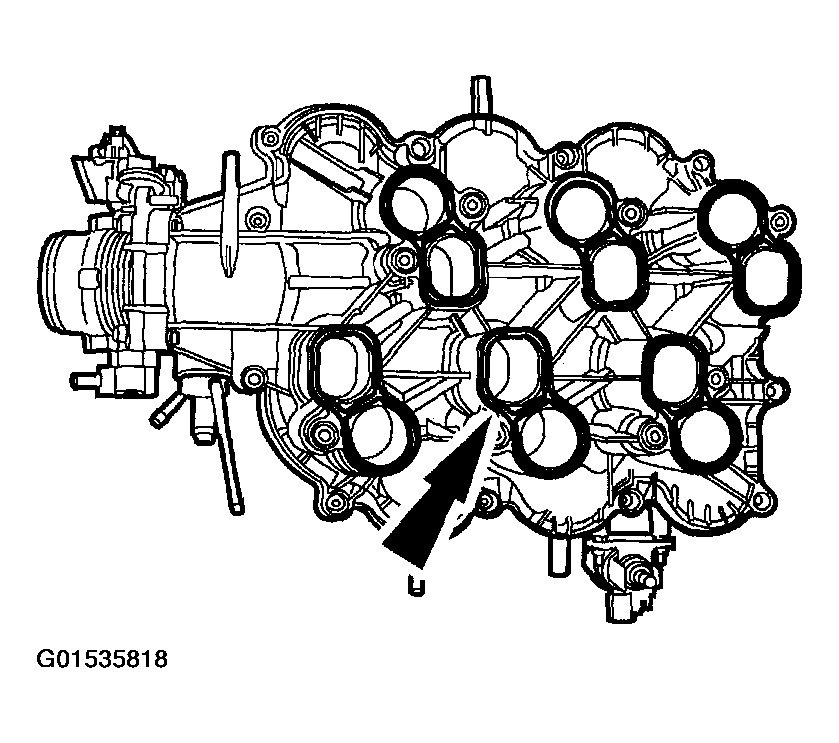

Fig 1: Inspecting Intake Manifold Spacer Assembly Mounting Gaskets
Courtesy of FORD MOTOR CO.
Install the intake manifold spacer assembly. Tighten the bolts in two steps in the sequence shown.
- Step 1 - Tighten to 6 Nm (53 lb-in).
- Step 2 - Tighten to 10 Nm (89 lb-in).

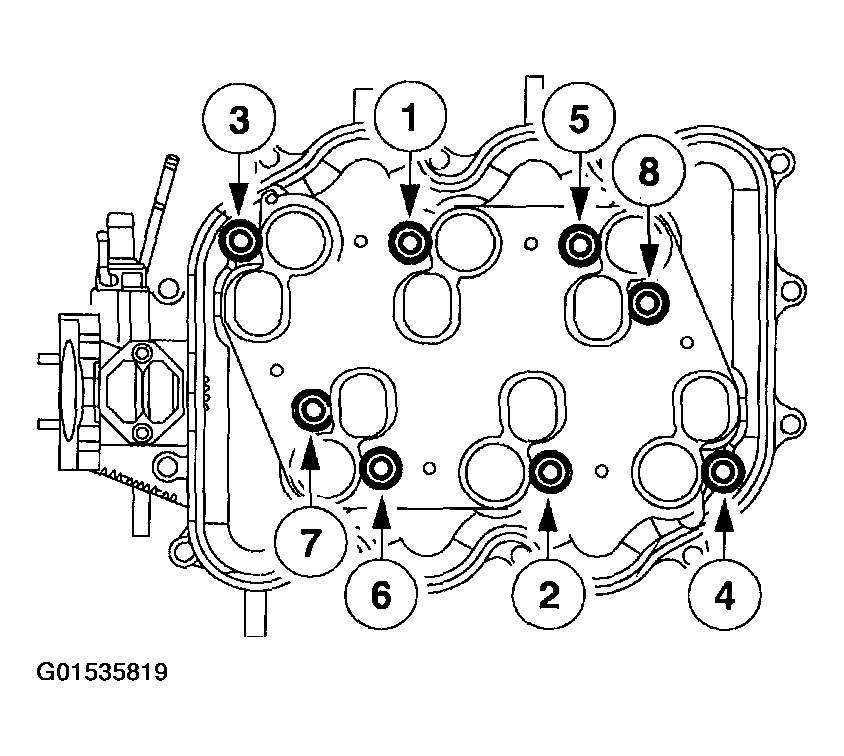

Fig 2: Tightening Bolts In Sequence
Courtesy of FORD MOTOR CO.
Connect the EGR solenoid electrical and vacuum connectors.
- Connect the intake manifold vacuum connector.
- Position the transmission oil level tube bracket and install the retaining nut.

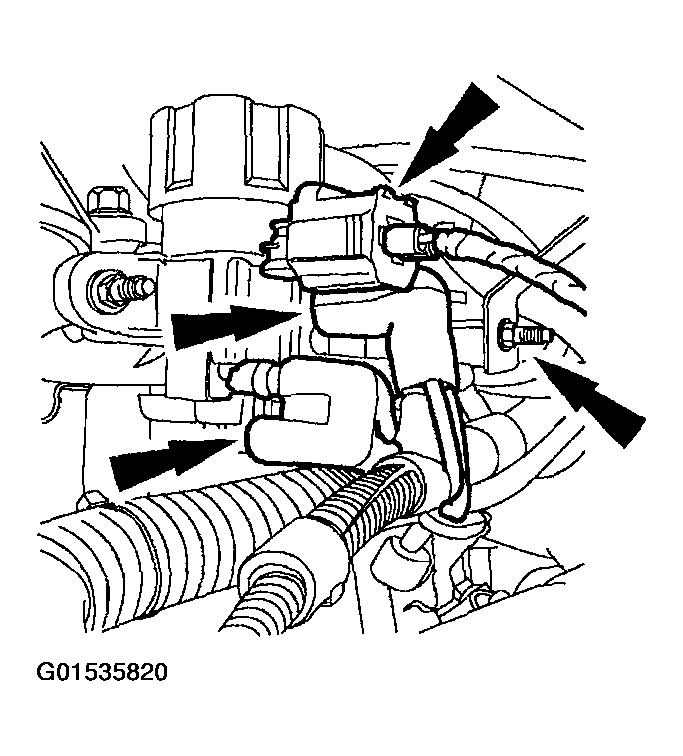

Fig 3: Connecting Intake Manifold Vacuum Connector
Courtesy of FORD MOTOR CO.
Connect the heater water hoses at the intake.

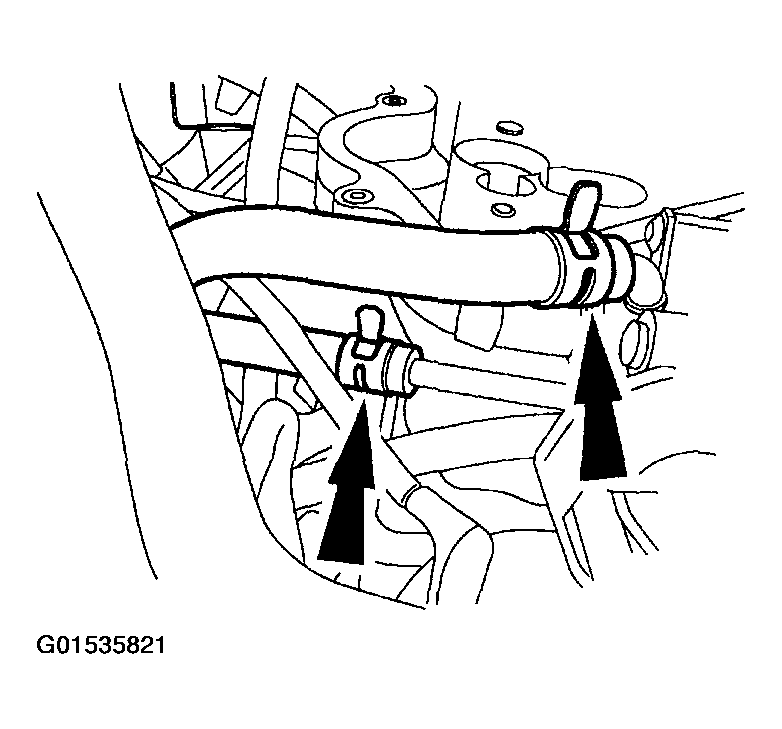

Fig 4: Connecting Heater Water Hoses
Courtesy of FORD MOTOR CO.
Connect the positive crankcase ventilation (PCV) hose.

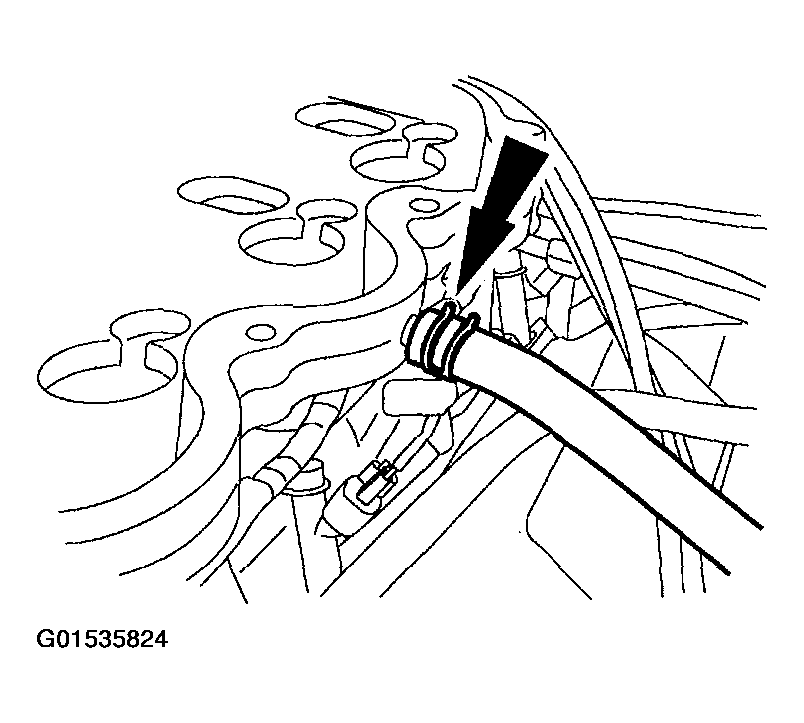

Fig 5: Connecting Positive Crankcase Ventilation (PCV) Hose
Courtesy of FORD MOTOR CO.
Connect the vapor management valve (VMV) hose.

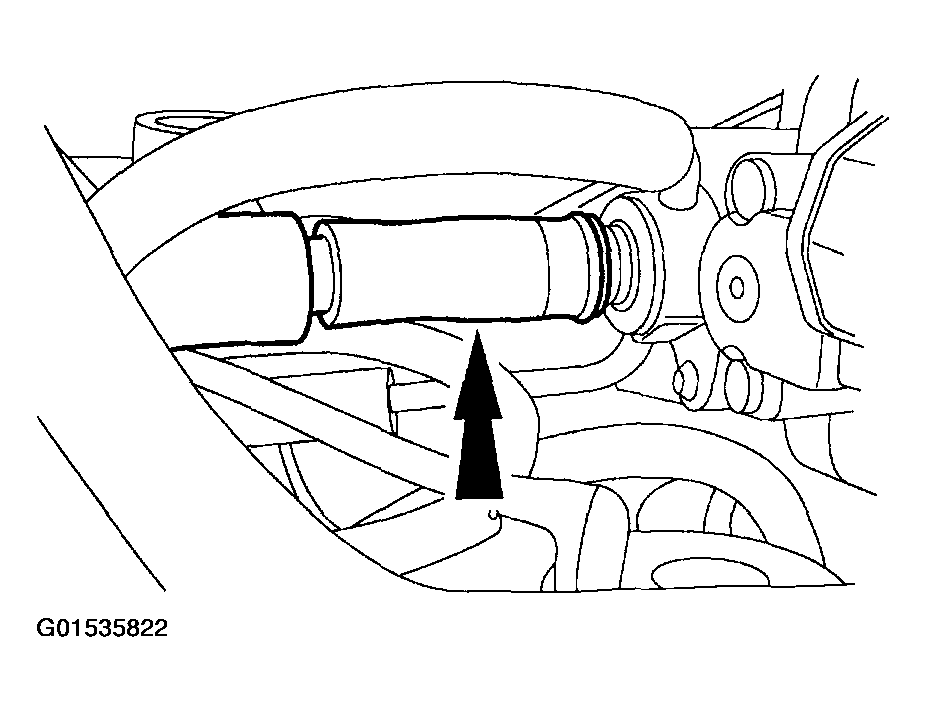

Fig 6: Connecting Vapor Management Valve (VMV) Hose
Courtesy of FORD MOTOR CO.
Connect the brake booster vacuum hose.

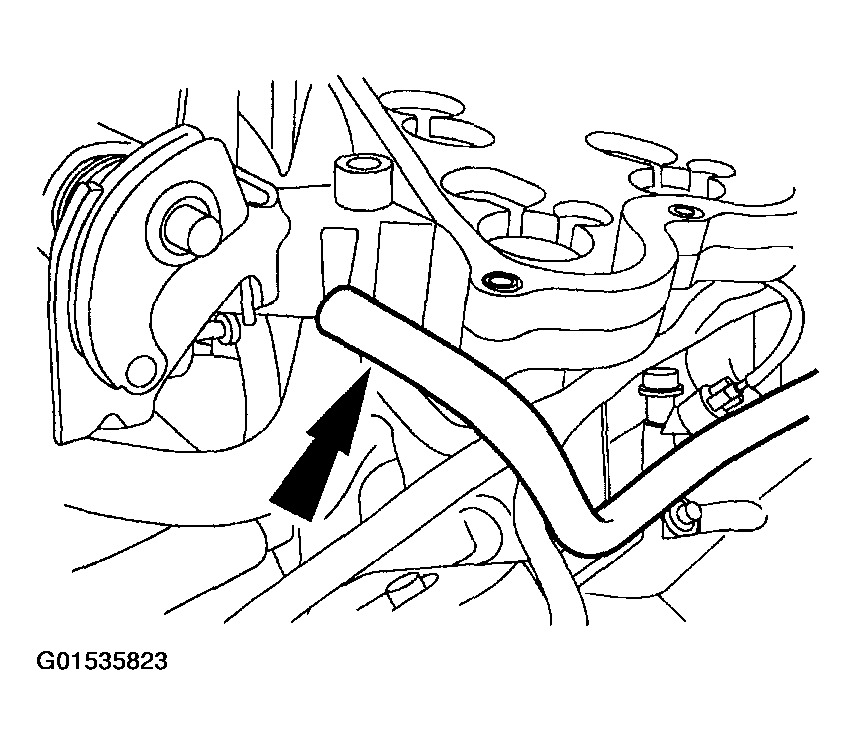

Fig 7: Connecting Brake Booster Vacuum Hose
Courtesy of FORD MOTOR CO.
Connect the throttle position (TP) sensor.

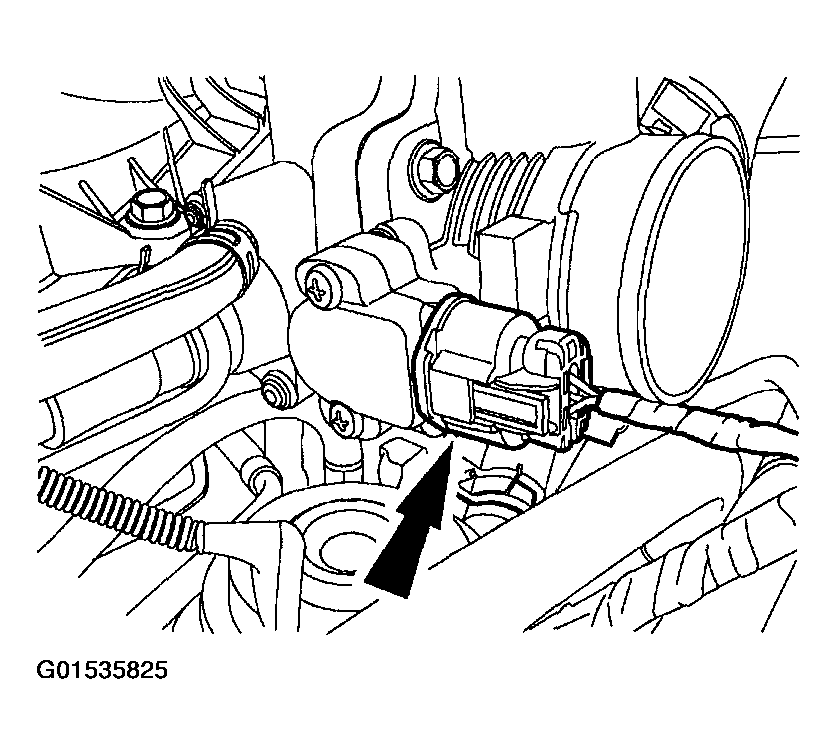

Fig 8: Connecting Throttle Position (TP) Sensor
Courtesy of FORD MOTOR CO.
Install the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
Fill the cooling system. For additional information, refer to ENGINE COOLING .
