In-Vehicle Repair: Camshaft: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the camshaft bearings (6261), lobes and journals with clean engine oil. Install the camshaft.

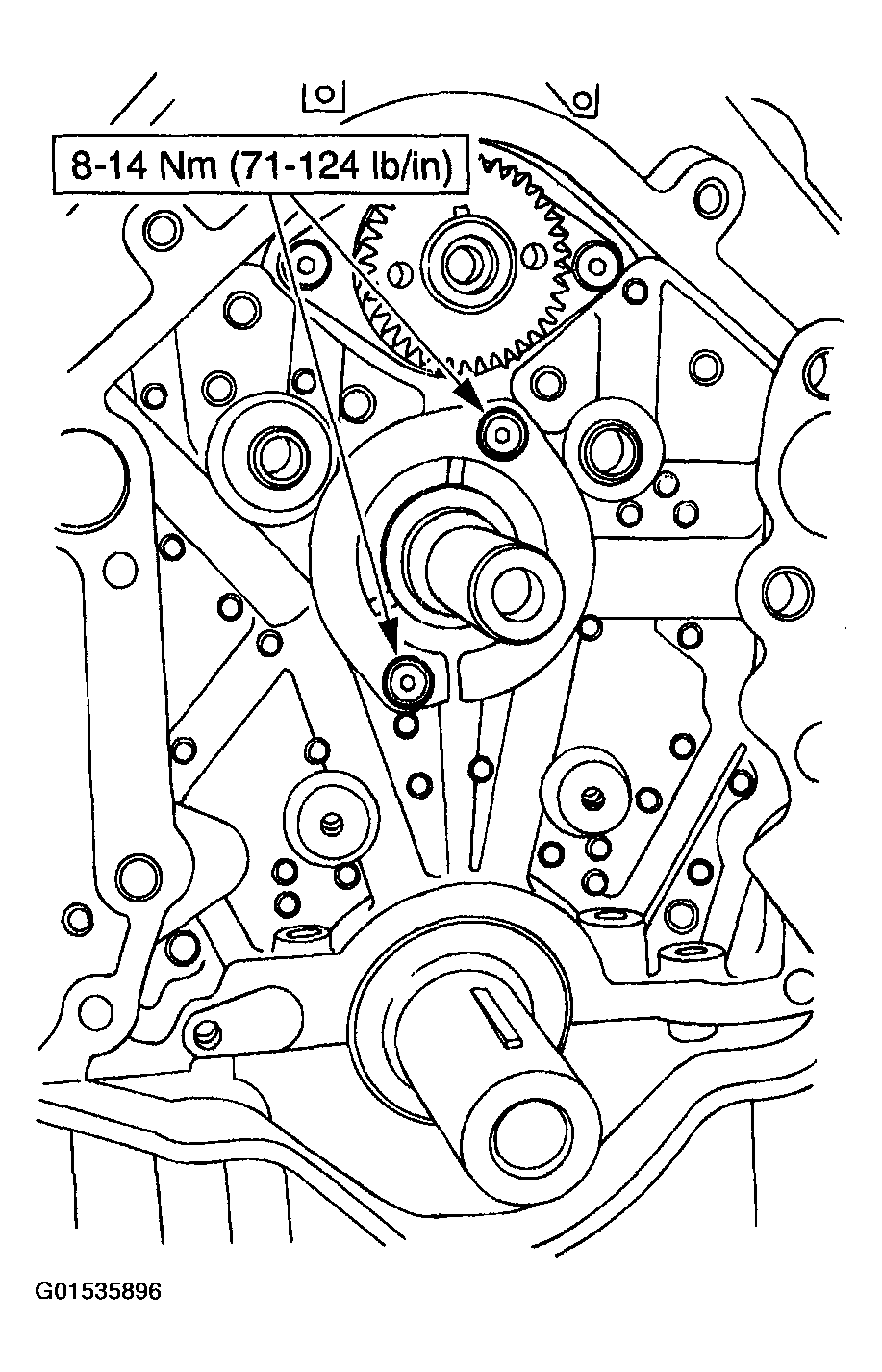

Fig 1: Identifying Lubricate Point
Courtesy of FORD MOTOR CO.
Install the engine balance shaft drive gear.
- The timing marks on the engine balance shaft drive gear and driven gear must align.

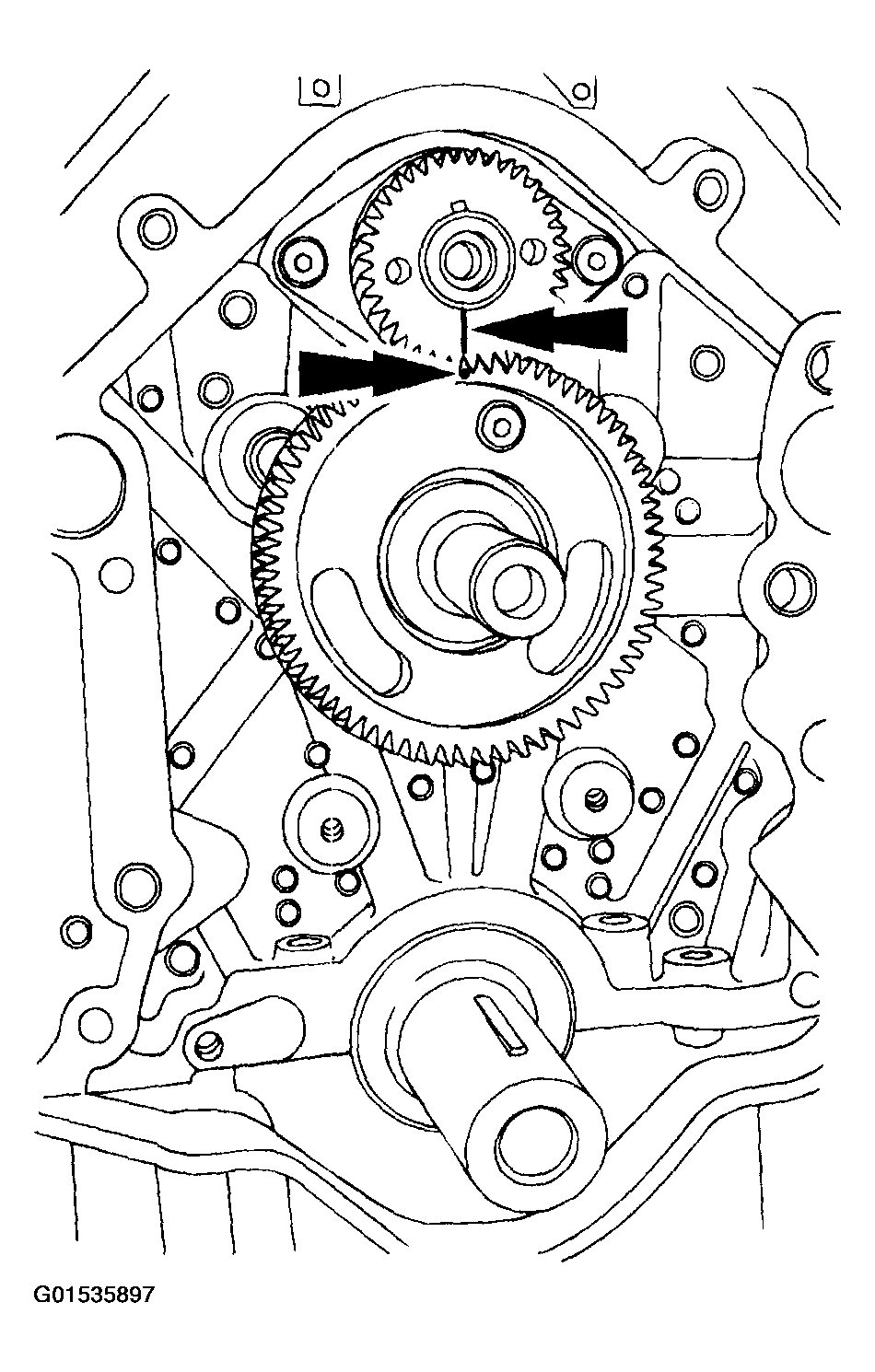

Fig 2: Installing Engine Balance Shaft Drive Gear
Courtesy of FORD MOTOR CO.
Install the following components:
- Lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
- Valve covers. For additional information, refer to VALVE COVER LH and VALVE COVER RH .
- Valve tappets. For additional information, refer to VALVE TAPPET .
- Engine front cover. For additional information, refer to ENGINE FRONT COVER .
- Engine dynamic balance shaft. For additional information, refer to ENGINE DYNAMIC BALANCE SHAFT .
