Interior/Map Lamps Assembly, Front Connector End View (C931)

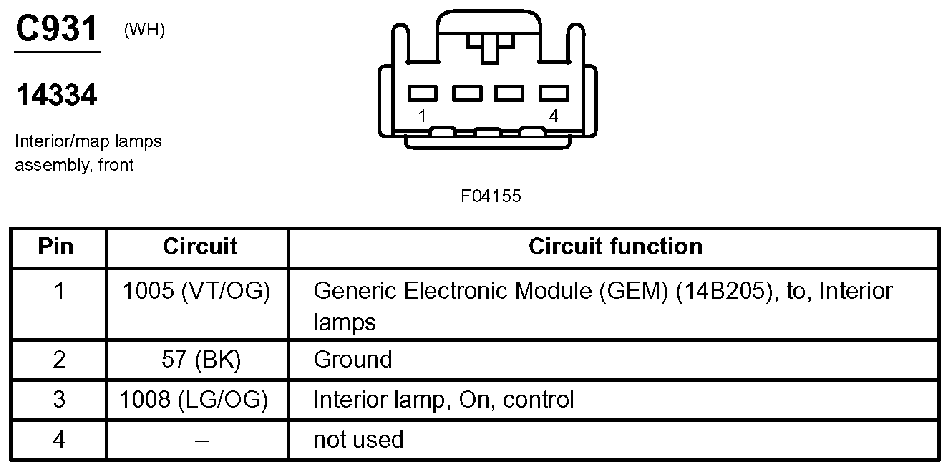

Fig 1: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07831583

Courtesy of FORD MOTOR CO.
