Fuel Tank Unit Connector End View (C433)

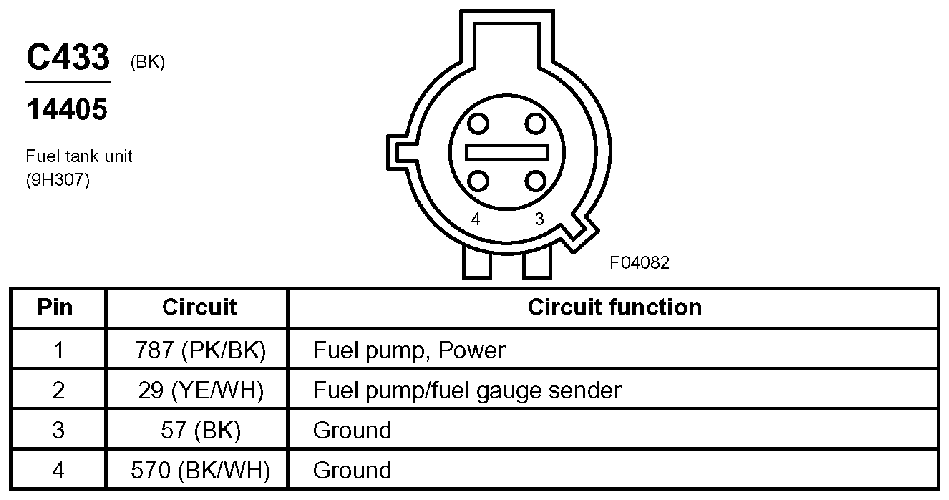

Fig 1: Fuel Tank Unit Connector End View (C433)

G07831537

Courtesy of FORD MOTOR CO.
