OEM Connector End Views
>>
Connector End Views
>>
Inline Connector End View (C210)
Inline Connector End View (C210)

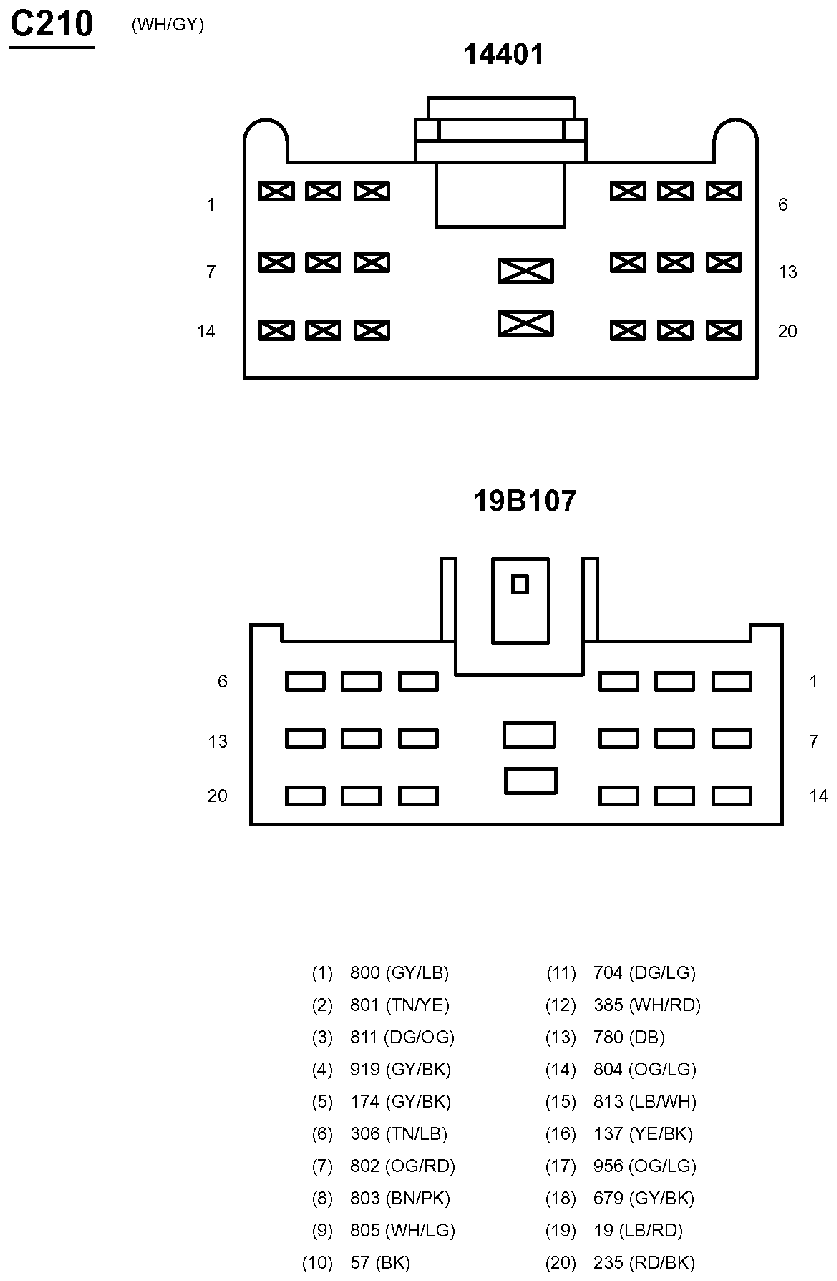

Fig 1: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
