Symptom Chart

NOTE: Refer to SYSTEM WIRING DIAGRAMS for connector numbers stated in the Pinpoint Tests.

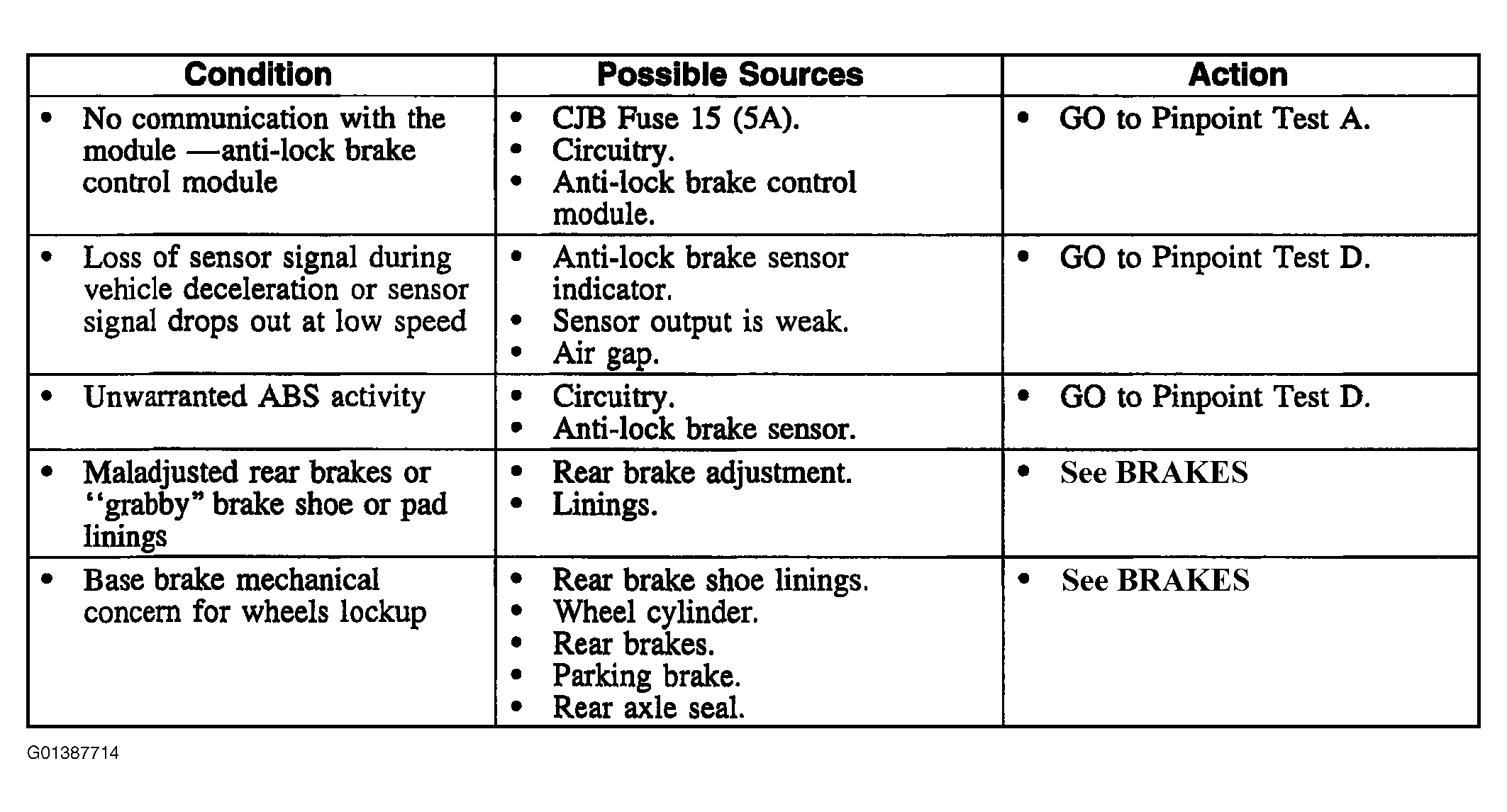

Fig 1: Symptom Chart (1 Of 2)
G01387714Courtesy of FORD MOTOR CO.

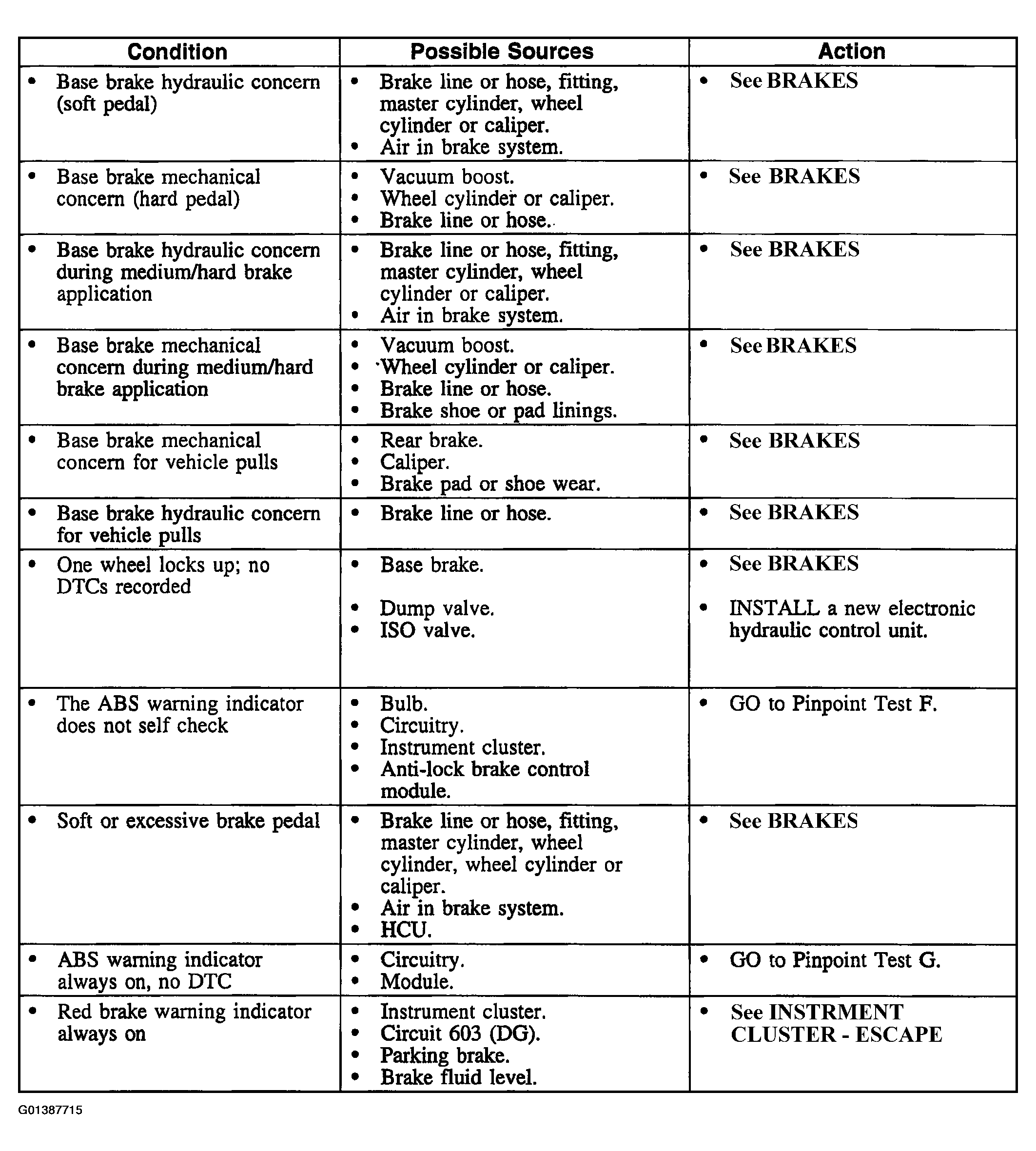

Fig 2: Symptom Chart (2 Of 2)
G01387715Courtesy of FORD MOTOR CO.
