Pinpoint Test I: Flash Code 4 - Clutch/Neutral Switch Circuit Failure
Pinpoint Test I: Flash Code 4 - Clutch/Neutral Switch Circuit Failure

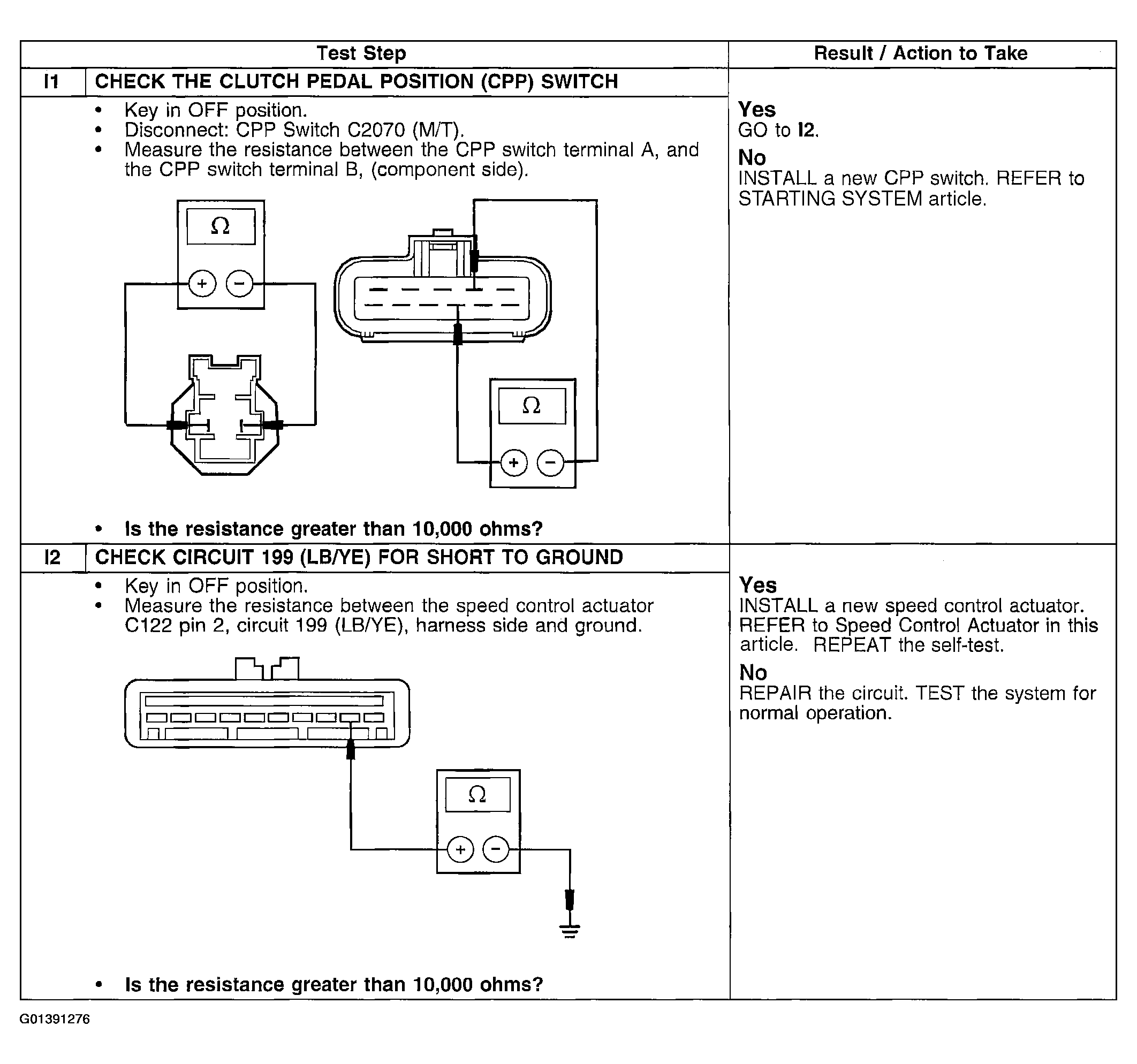

Fig 1: Pinpoint Test I: Flash Code 4 - Clutch/Neutral Switch Circuit Failure (Steps I1-I2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
