Automatic Transmission - 4R70W
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Main Control Valve Body - Disassembled View
Main Control Valve Body - Disassembled View

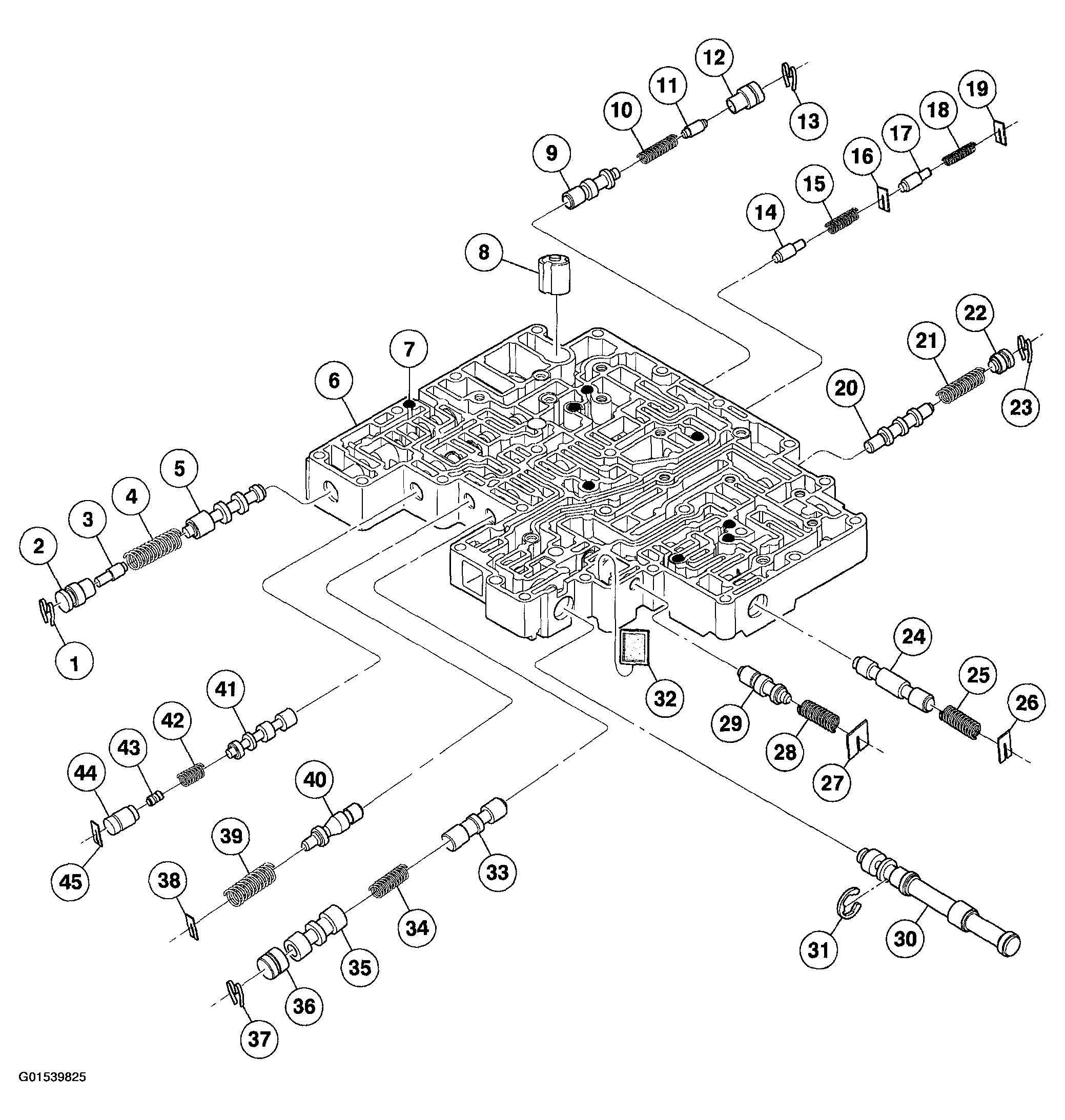

Fig 1: Main Control Valve Body - Disassembled View
Courtesy of FORD MOTOR CO.

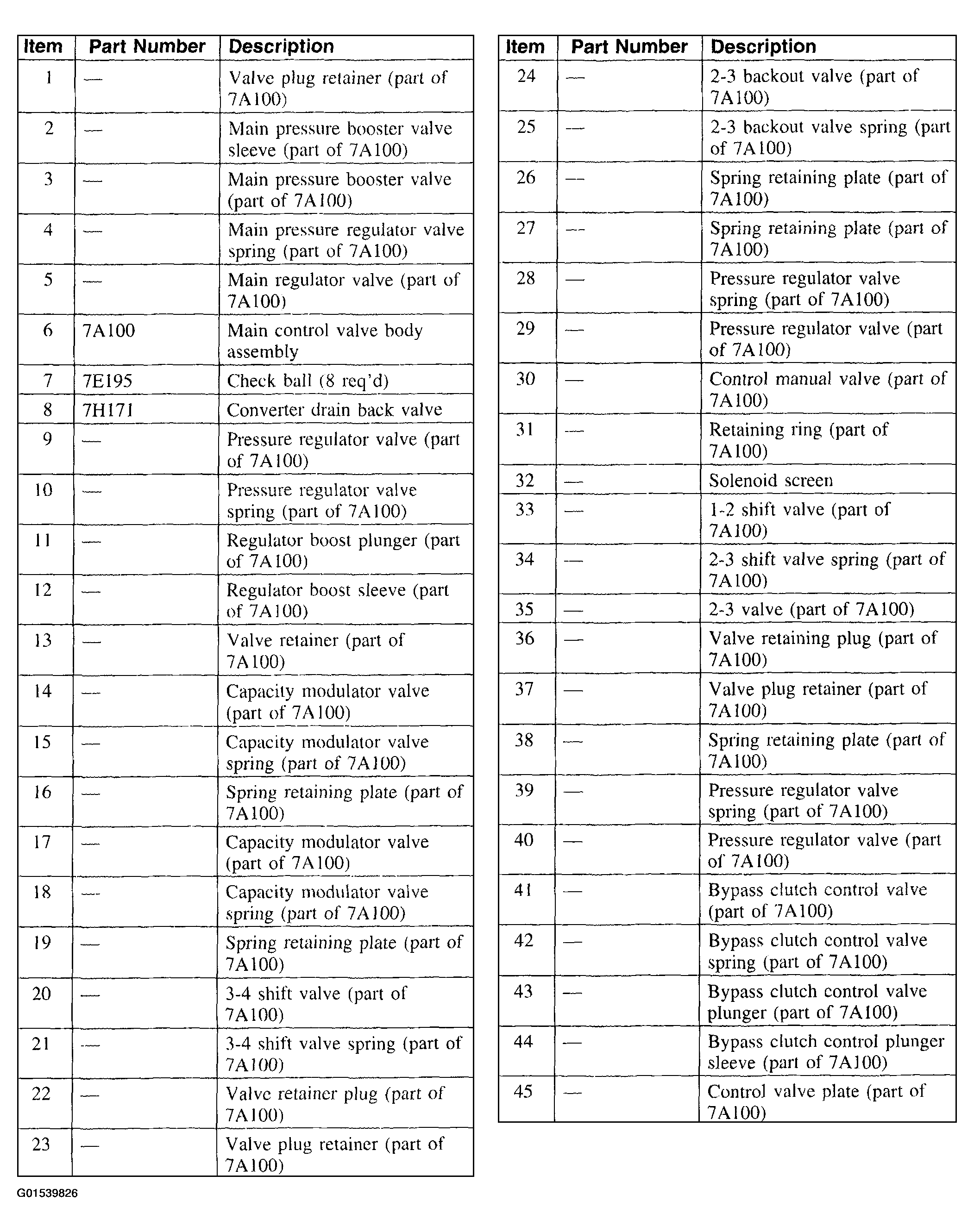

Fig 2: Main Control Valve Body (Items 1-45)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
