Automatic Transmission - 4R70W
>>
Description And Operation
>>
Main Components and Functions
>>
Transmission Main Components - Sectional View
Transmission Main Components - Sectional View

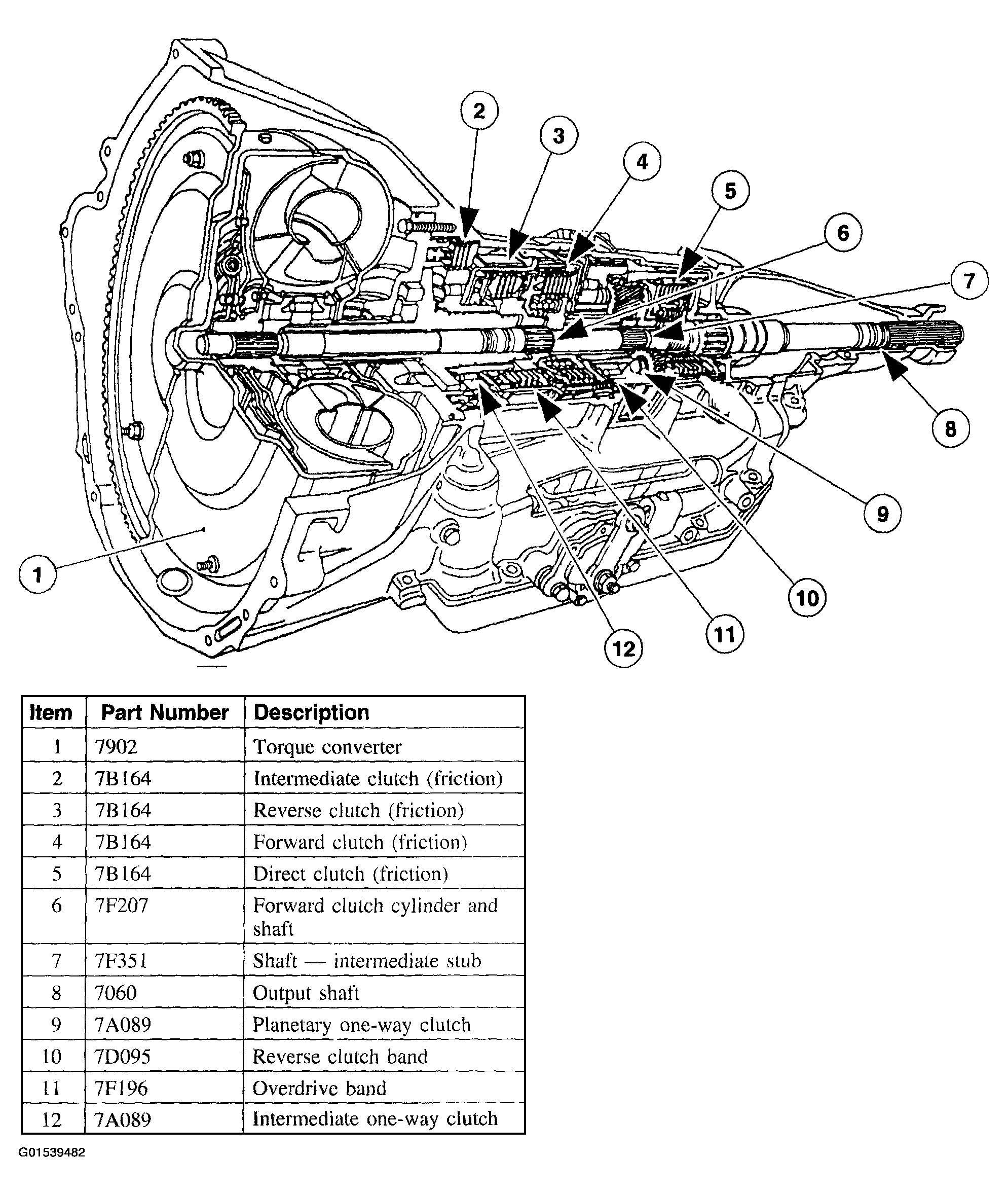

Fig 1: Identifying Transmission Main Components - Sectional View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
