Apply Components: Clutch-Reverse

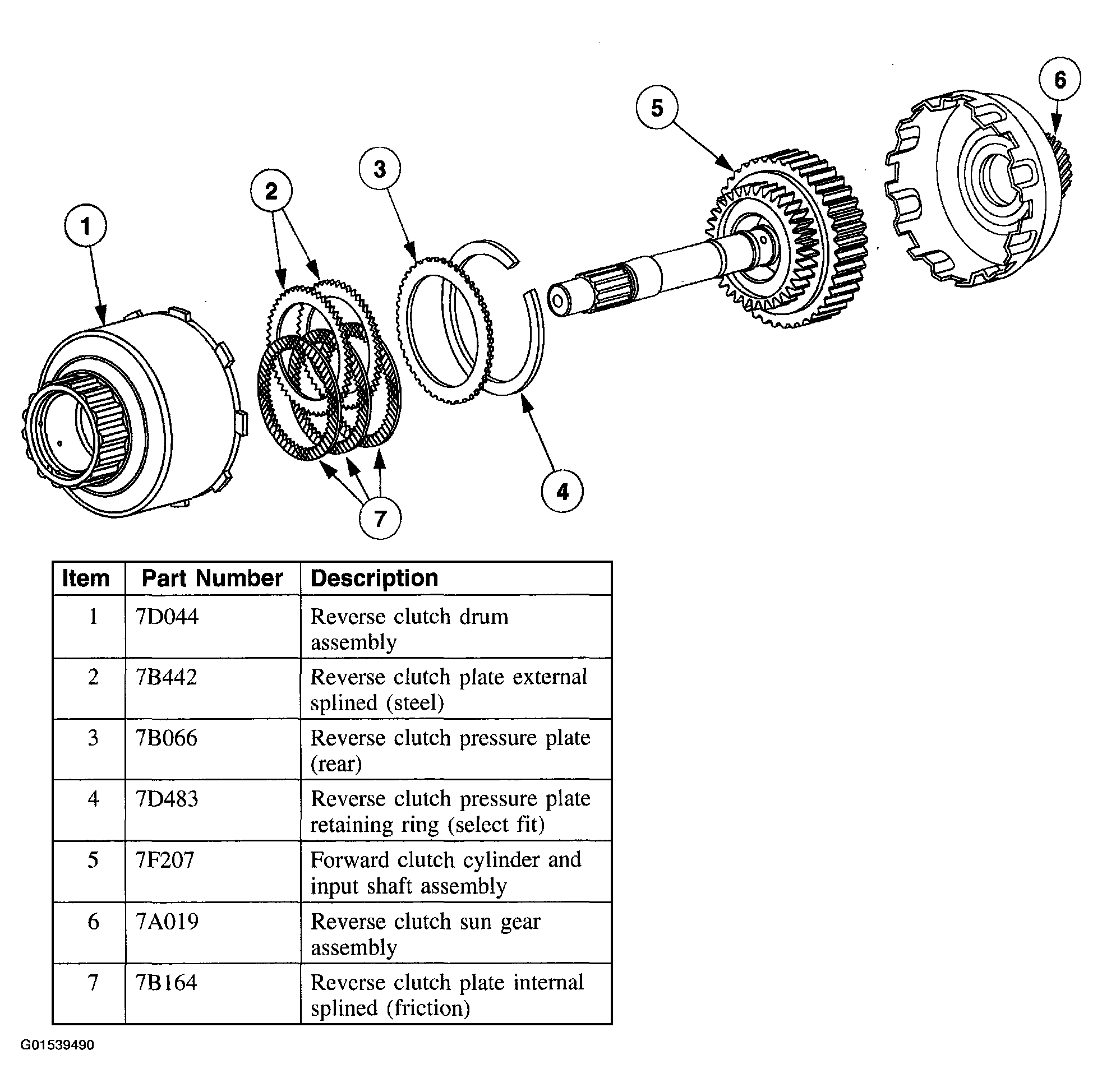

Fig 1: Identifying Reverse Clutch
Courtesy of FORD MOTOR CO.
The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only.
Courtesy of FORD MOTOR CO.
