Compass Zone Adjustment

  1. Determine the zone in which the vehicle is located.

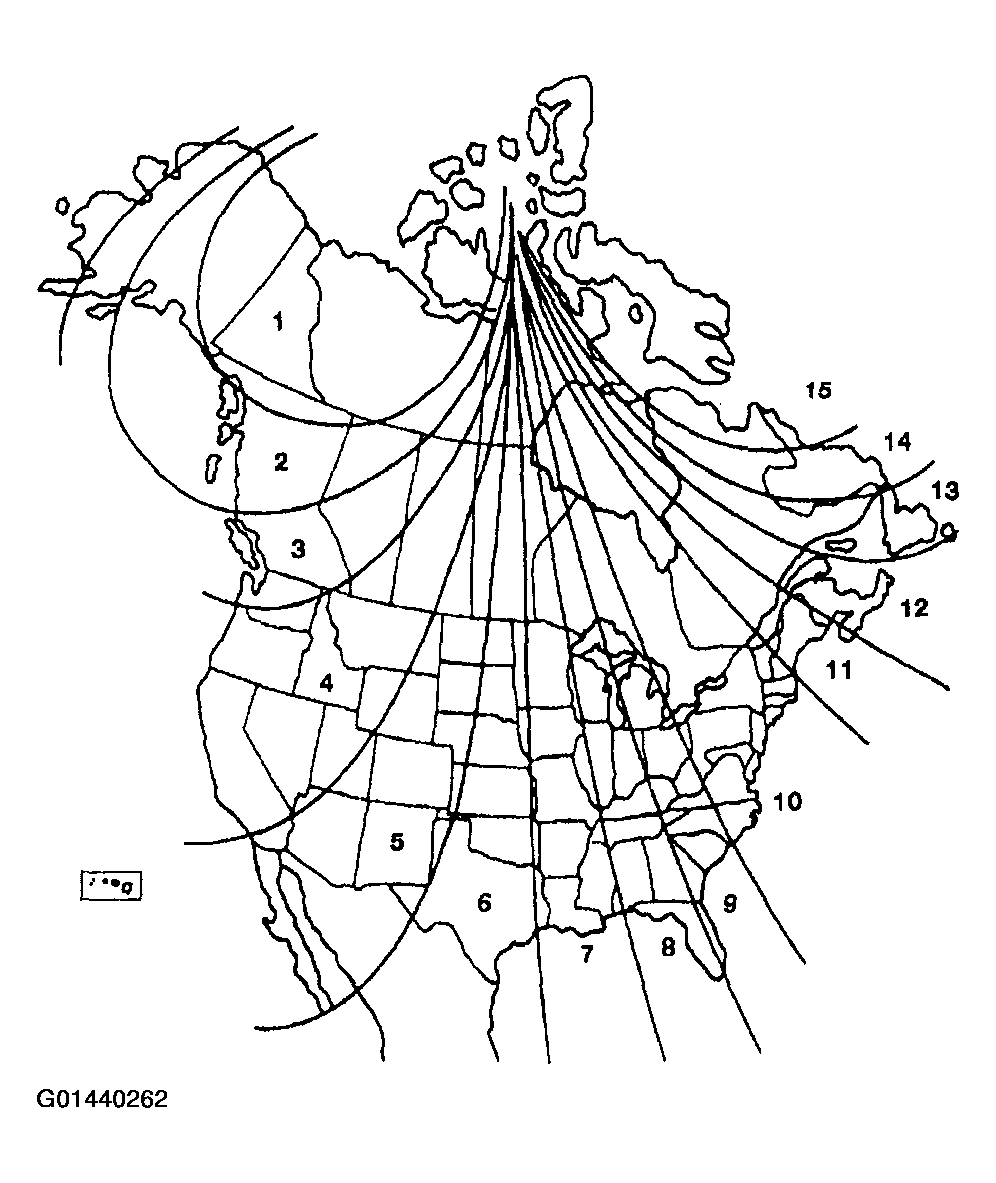

    Fig 1: Identifying Compass Zone
    G01440262Courtesy of FORD MOTOR CO.
  2. Press and hold the SELECT button until VAR appears on the display. Release the SELECT button.
    3. NOTE: After a few seconds, the compass will exit the VAR mode if the button is no longer pressed
  3. Momentarily press the SELECT button to increment the zone by one. Set the zone according to the map.
