Electronic Compass
>>
Diagnosis And Testing
>>
Electronic Compass
>>
Symptom Chart
Symptom Chart

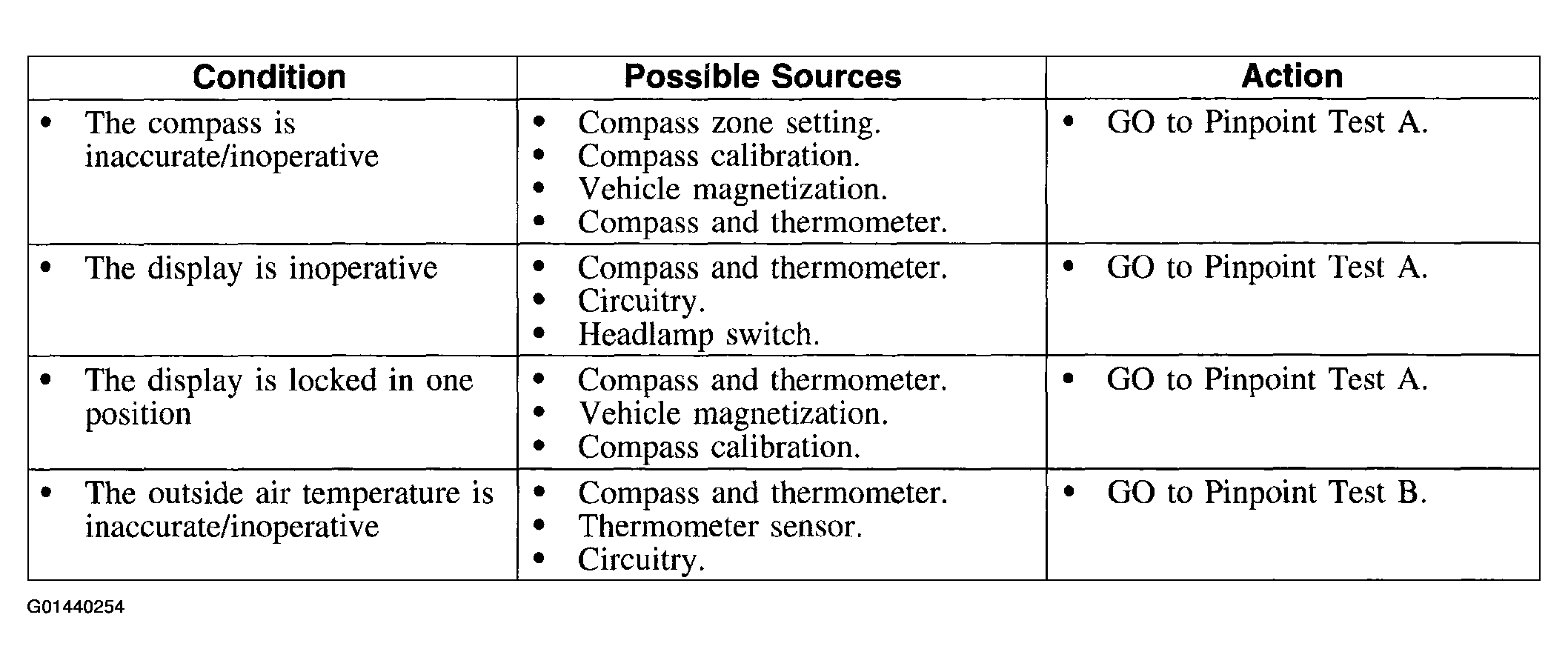

Fig 1: Identifying Symptom Chart
Courtesy of FORD MOTOR CO.
