Multi-Function Switch

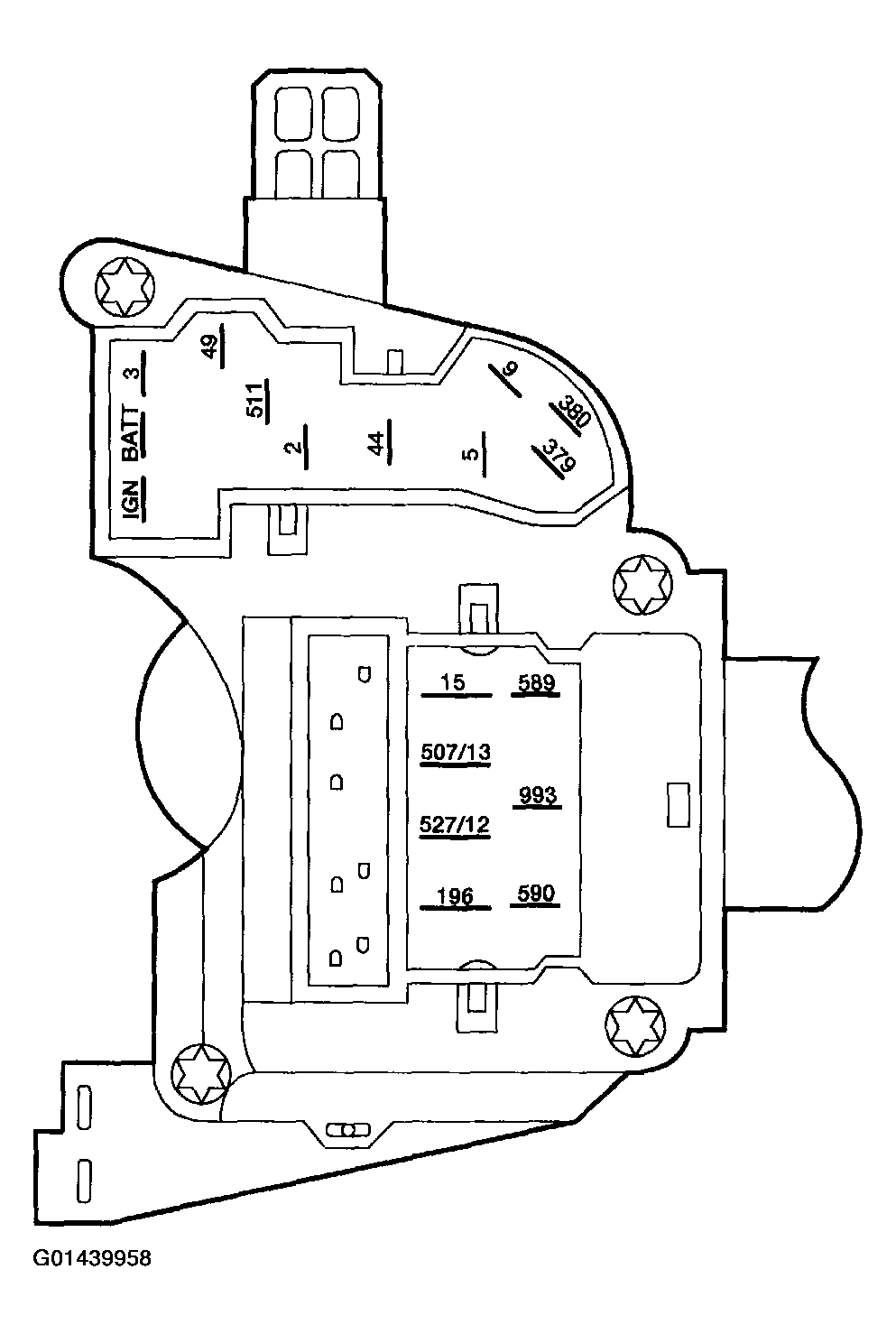

Fig 1: Identifying Multi-Function Switch

Courtesy of FORD MOTOR CO.

1. Measure the resistance between the following multi-function switch terminals:

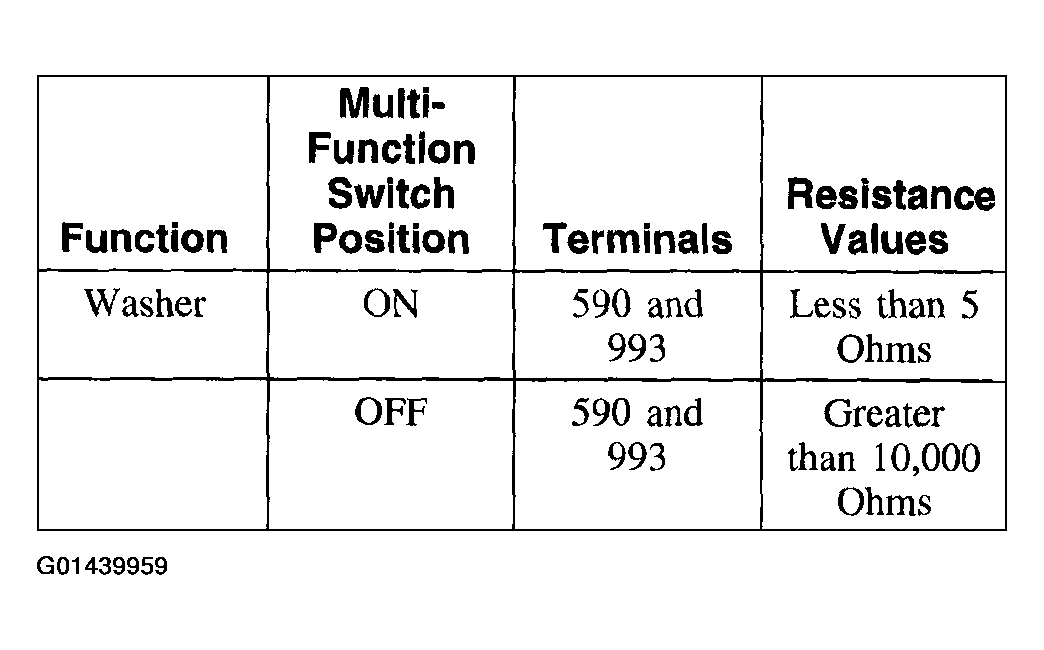

   Fig 2: Multi-Function Switch Terminals Resistance Specifications (1 Of 3)

   Courtesy of FORD MOTOR CO.

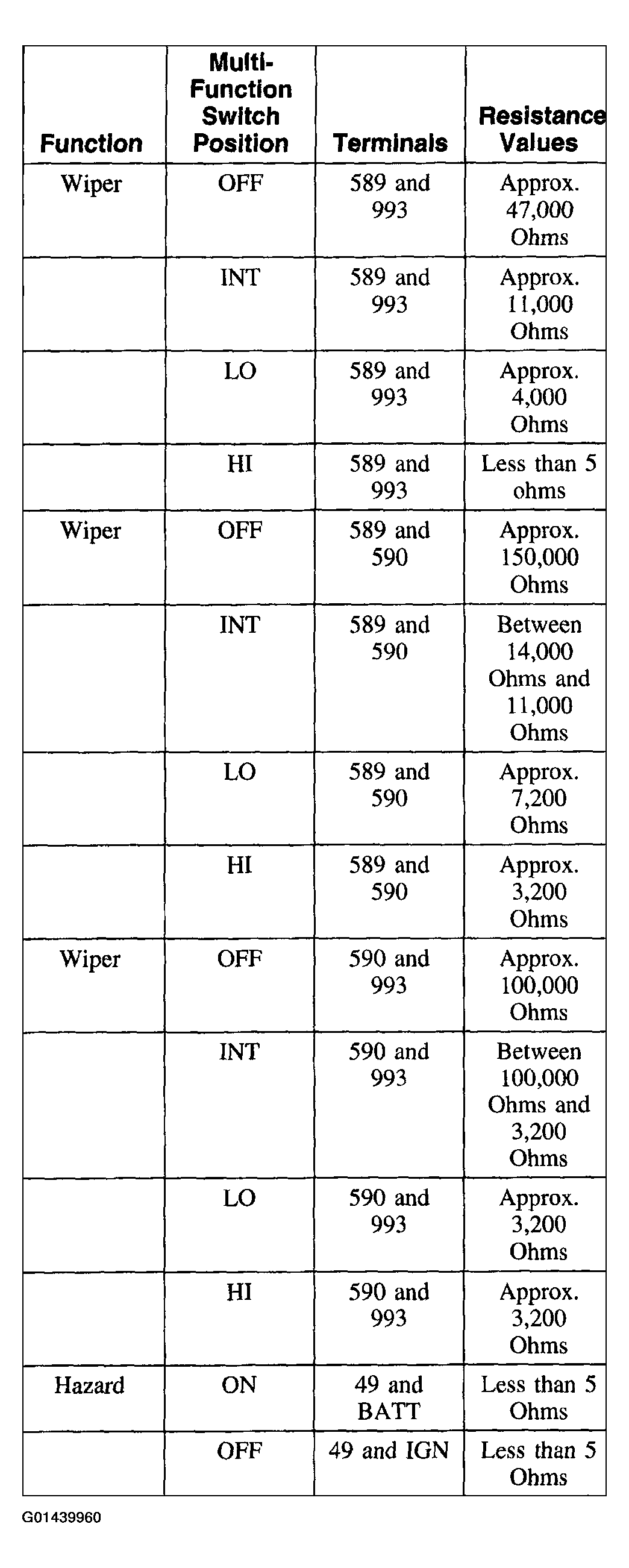

Fig 3: Multi-Function Switch Terminals Resistance Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

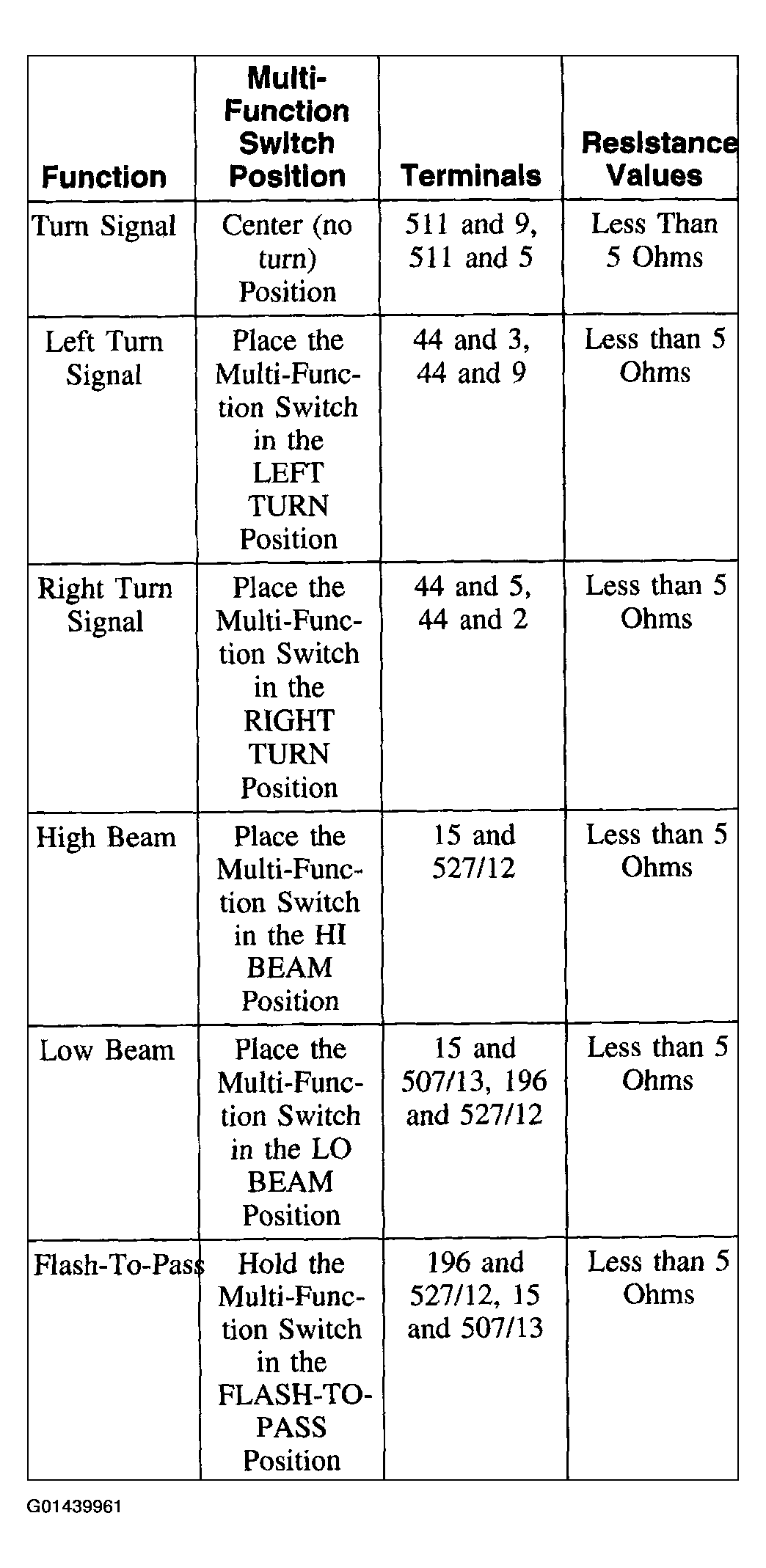

Fig 4: Multi-Function Switch Terminals Resistance Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

If the resistances are as specified, the multi-function switch is OK. Return the multi-function switch to the vehicle. Test the system for normal operation.

If the resistance are not as specified, replace the multi-function switch. Refer to MULTIFUNCTION SWITCH . Test the system for normal operation.
