Ignition Switch: Installation

NOTE: When the battery (10655) is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
  1. To install, reverse the removal procedure. Tighten switch screws to 44-62 Inch lbs. (5-7 N.m).

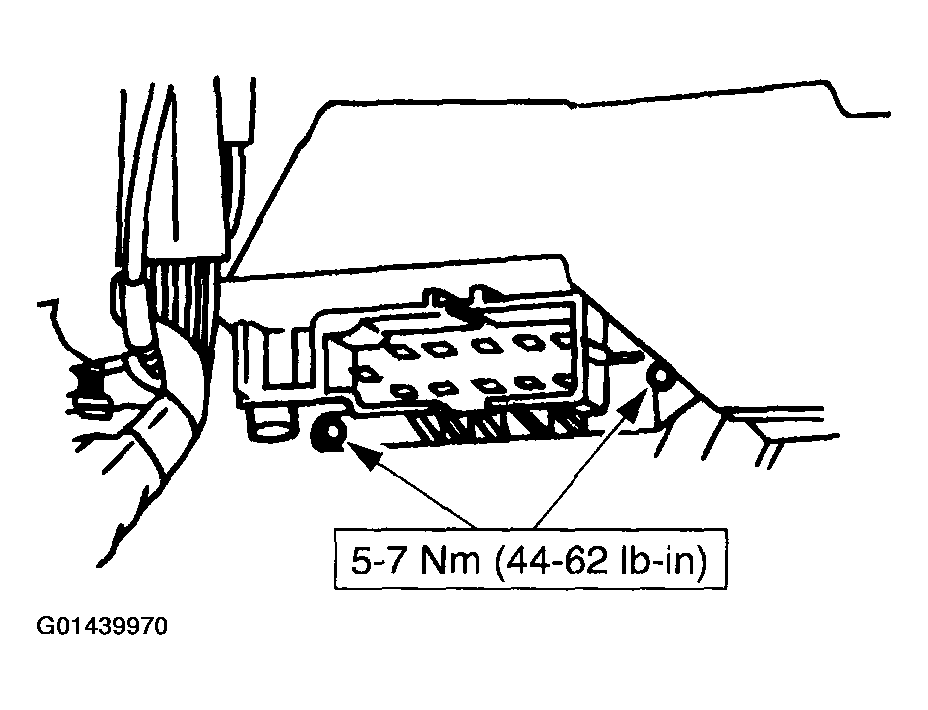

    Fig 1: Installing Ignition Switch
    G01439970Courtesy of FORD MOTOR CO.
