Automatic Transmission External Controls

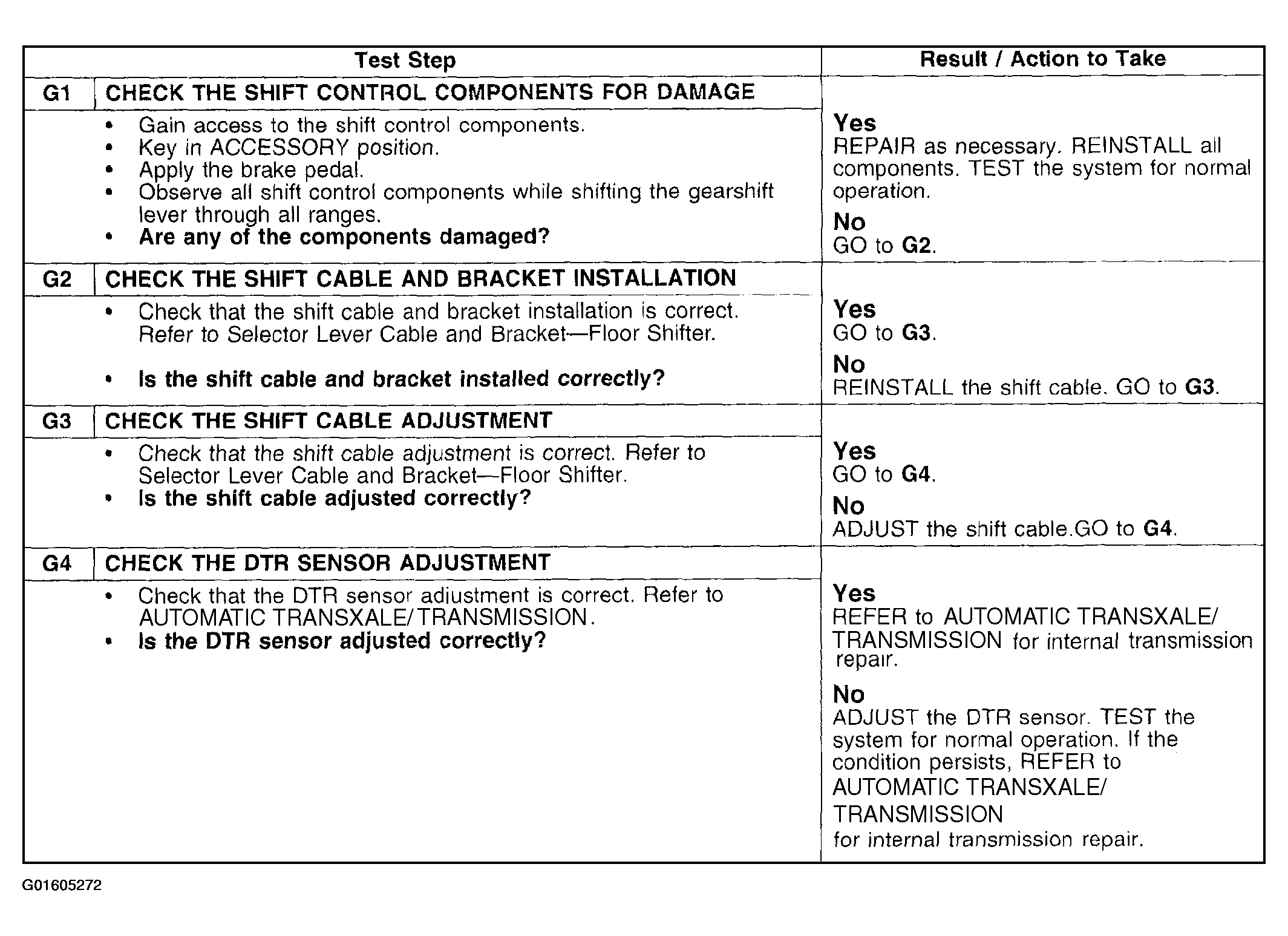

Fig 1: Pinpoint Test G: Shift Control Is Out Of Correct Gear Relationship - Floor Shift

G01605272

Courtesy of FORD MOTOR CO.
