Main Components And Functions

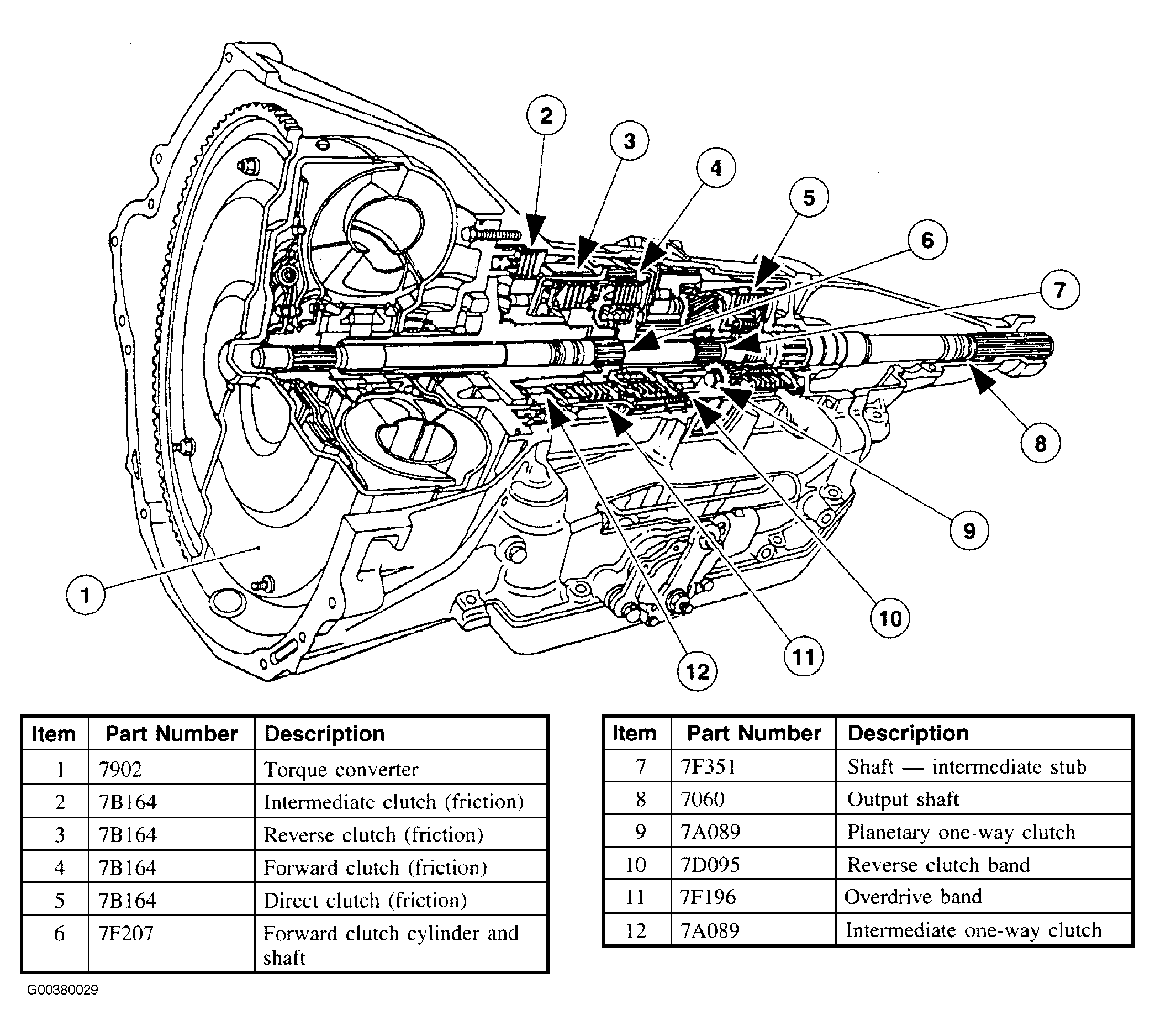

Fig 1: Transmission Main Components - Sectional View
G00380029Courtesy of FORD MOTOR CO.
