Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the second row, 20 percent seat. For additional information, refer to REAR SEAT - 20 PERCENT, SECOND ROW .
Remove the second row, 20 percent seat backrest. For additional information, refer to REAR SEAT CUSHION - 20 PERCENT, SECOND ROW .
Disassemble the components in the order listed in the following illustration and table. To remove individual components, carry out only the following steps:

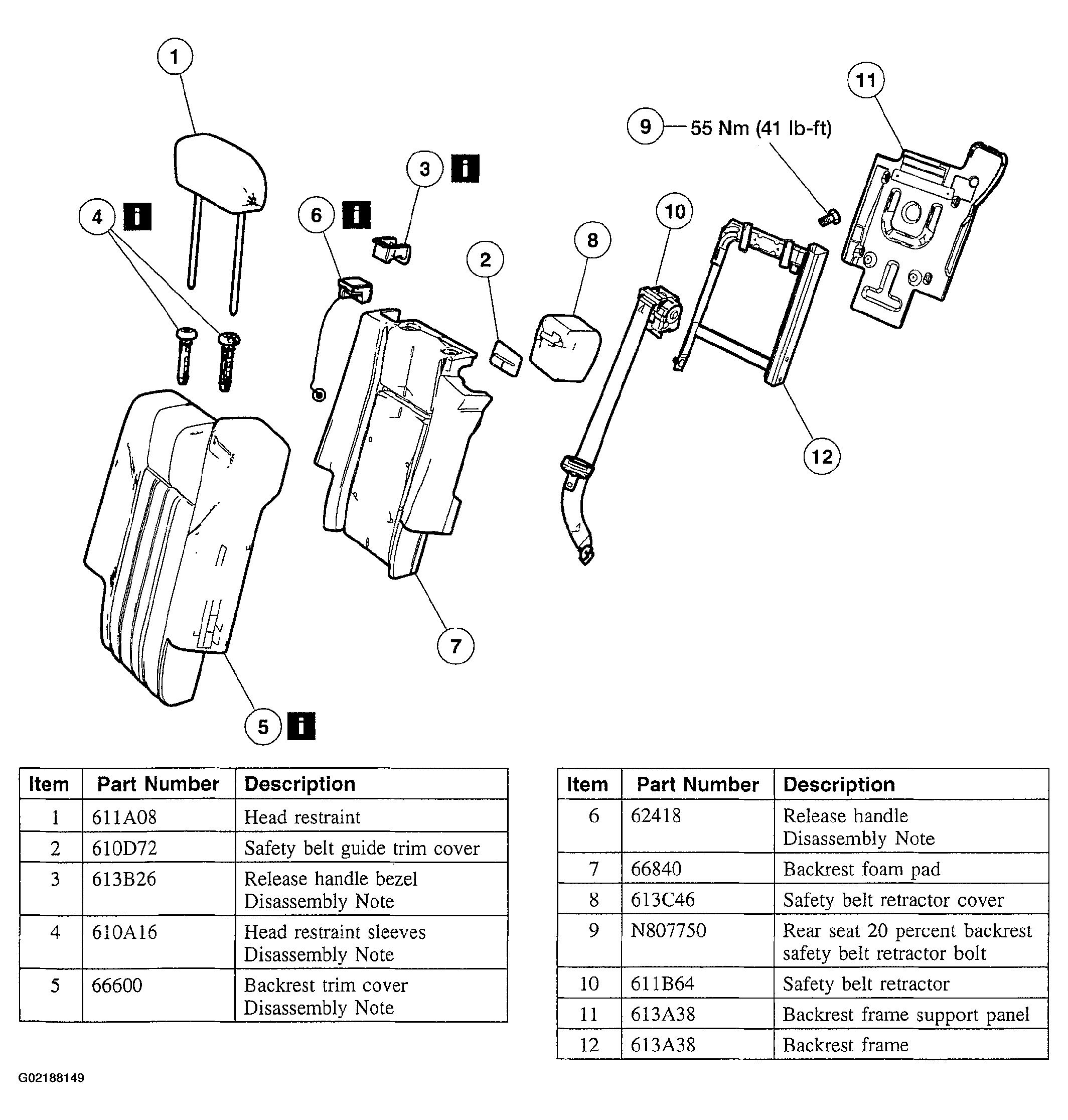

Fig 1: Identifying Rear Seat Backrest - 20 Percent, Second Row Components Disassembly Steps
Courtesy of FORD MOTOR CO.

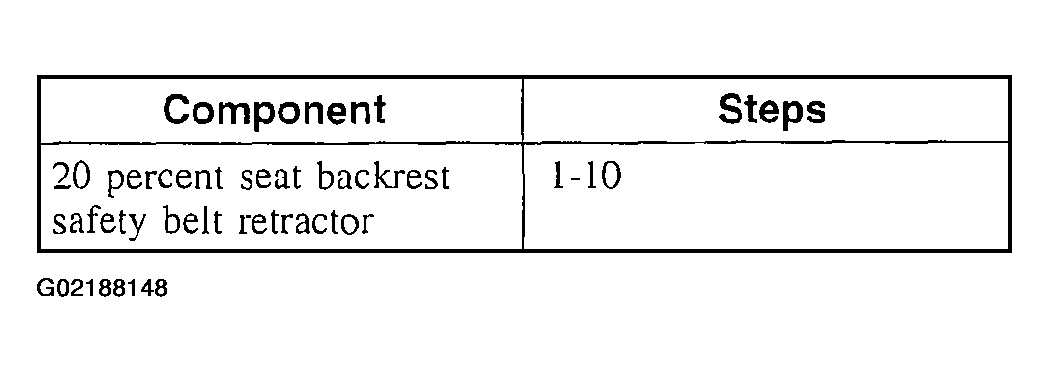

Fig 2: Disassembly Order Of Rear Seat Backrest - 20 Percent, Second Row
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
