Crown Victoria Base, 4.6 9
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Description And Operation
>>
Intermediate Shaft Components
Intermediate Shaft Components

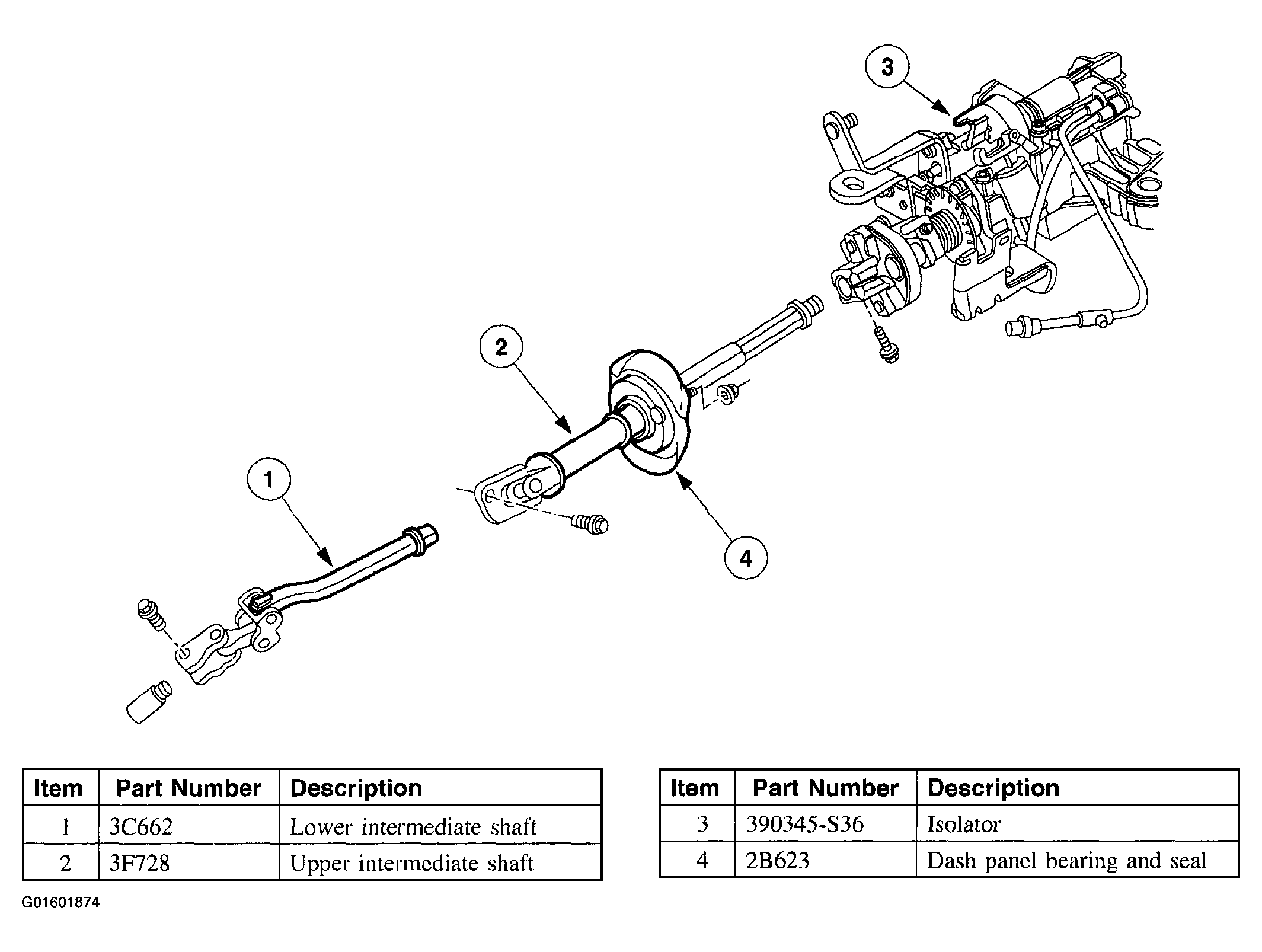

Fig 1: Identifying Components Intermediate Shaft
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
