Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the third row seat backrest. For additional information, refer to REAR SEAT-THIRD ROW .
  2. Disassemble the components in the order listed in the following illustration and table.

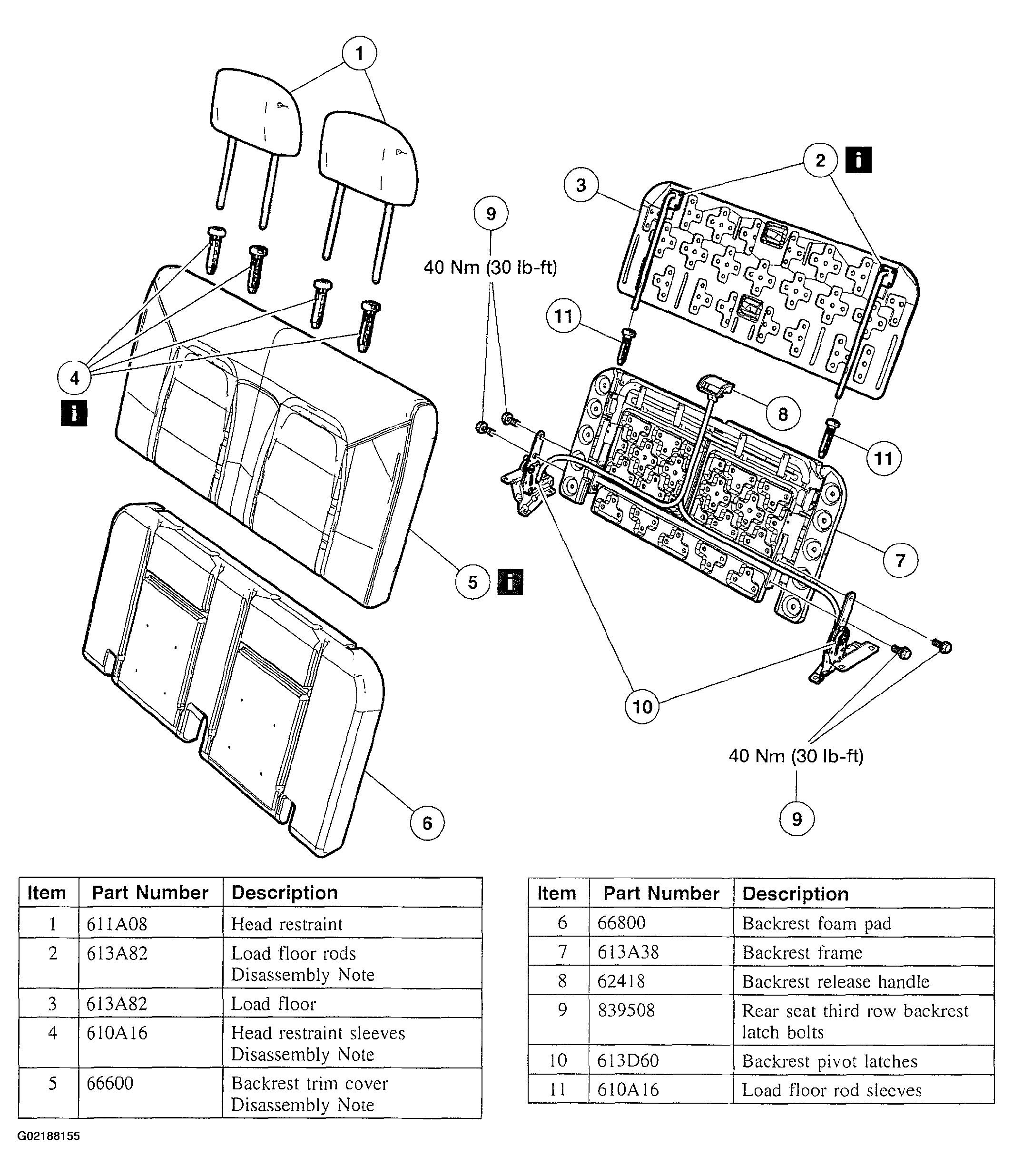

    Fig 1: Disassembling Order Of Rear Seat Backrest - Third Row
    G02188155Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
