Support Insulator - Lower, Front: Removal

    NOTE: 2.0L Zetec shown; 2.0L SPI similar.

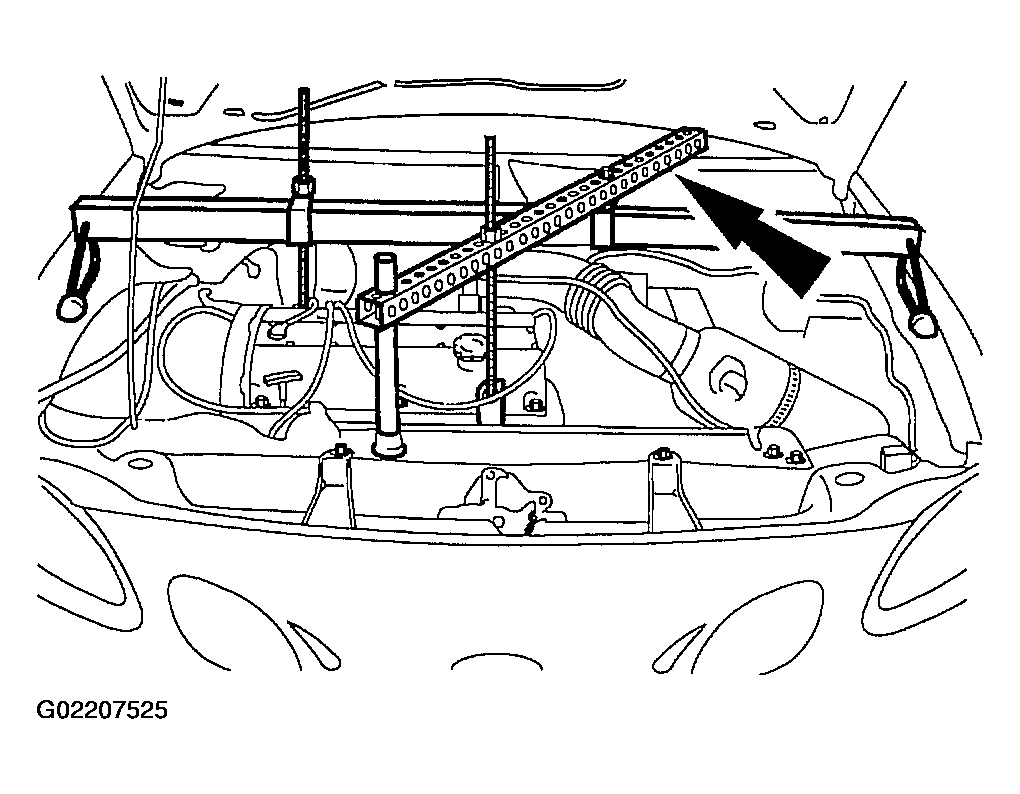

    Fig 1: Installing Three-Bar Engine Support
    G02207525Courtesy of FORD MOTOR CO.
  1. Install Three-Bar Engine Support.
  2. Raise and support the vehicle.
  3. Remove the splash shield bolts from the engine support crossmember.

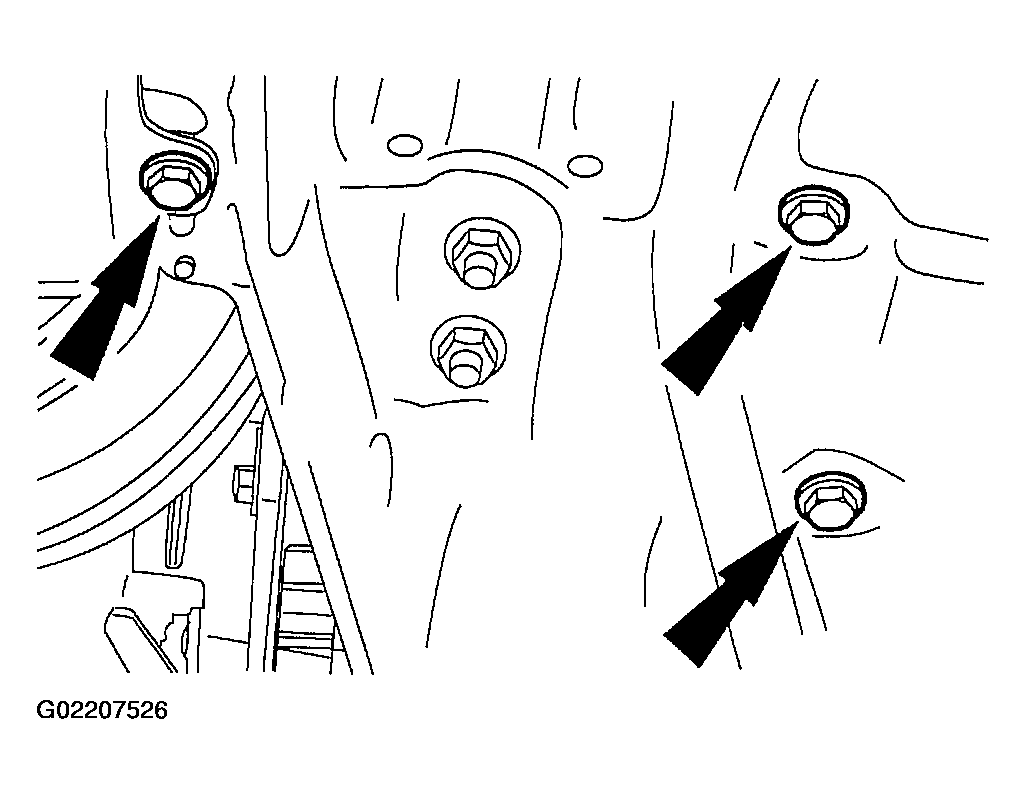

    Fig 2: Removing Splash Shield Bolts From Engine Support Crossmember
    G02207526Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the crossmember.

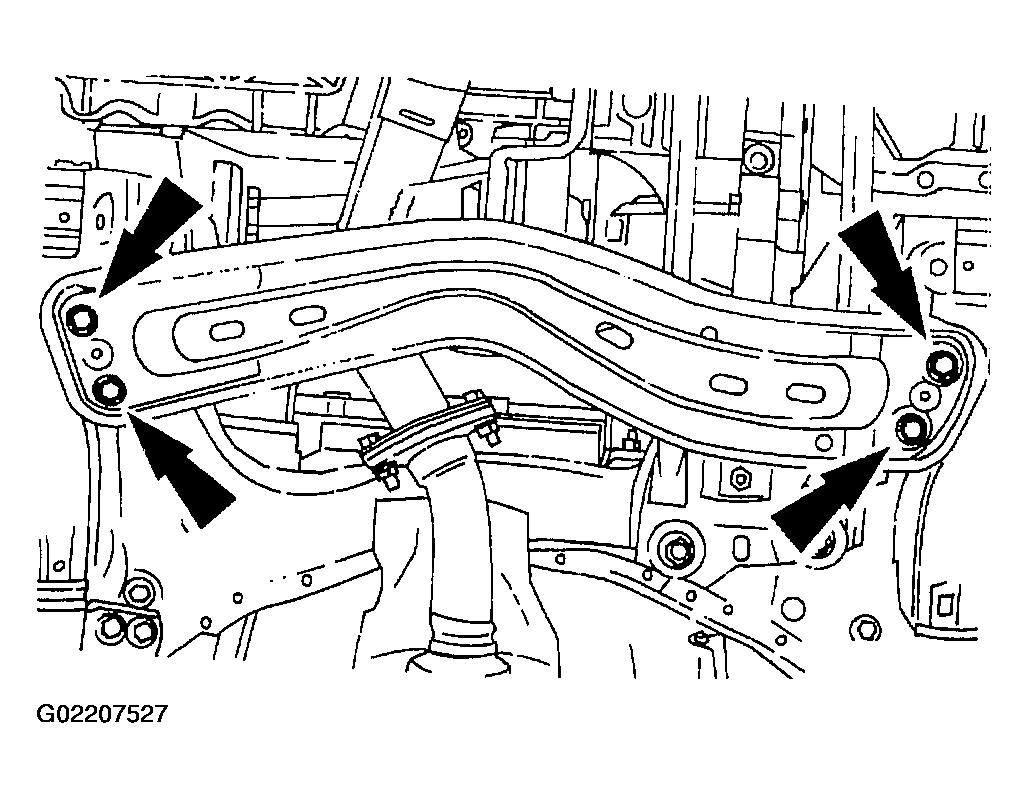

    Fig 3: Removing Bolts And Crossmember
    G02207527Courtesy of FORD MOTOR CO.
    5. NOTE: Disconnect the A/C line from the retainer located on the front of the engine crossmember.
  5. Remove the engine support crossmember.
    1. Remove the bolts and nuts.

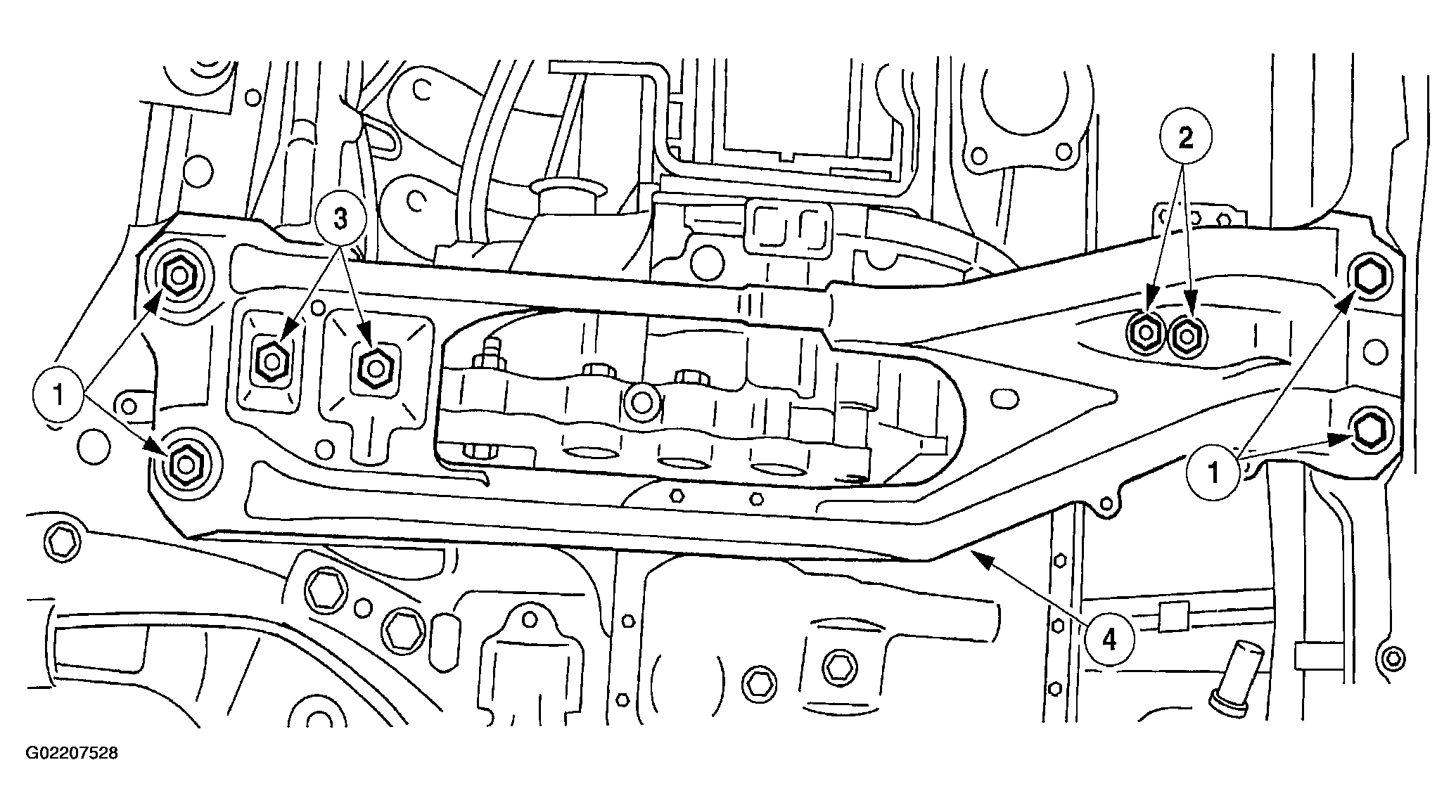

      Fig 4: Removing Bolts And Engine Support Crossmember
      G02207528Courtesy of FORD MOTOR CO.
    2. Remove the lower front insulator nuts.
    3. Remove the lower rear insulator nuts.
    4. Remove the engine support crossmember.
  6. Remove the lower front support insulator.
    1. Remove the bolt.

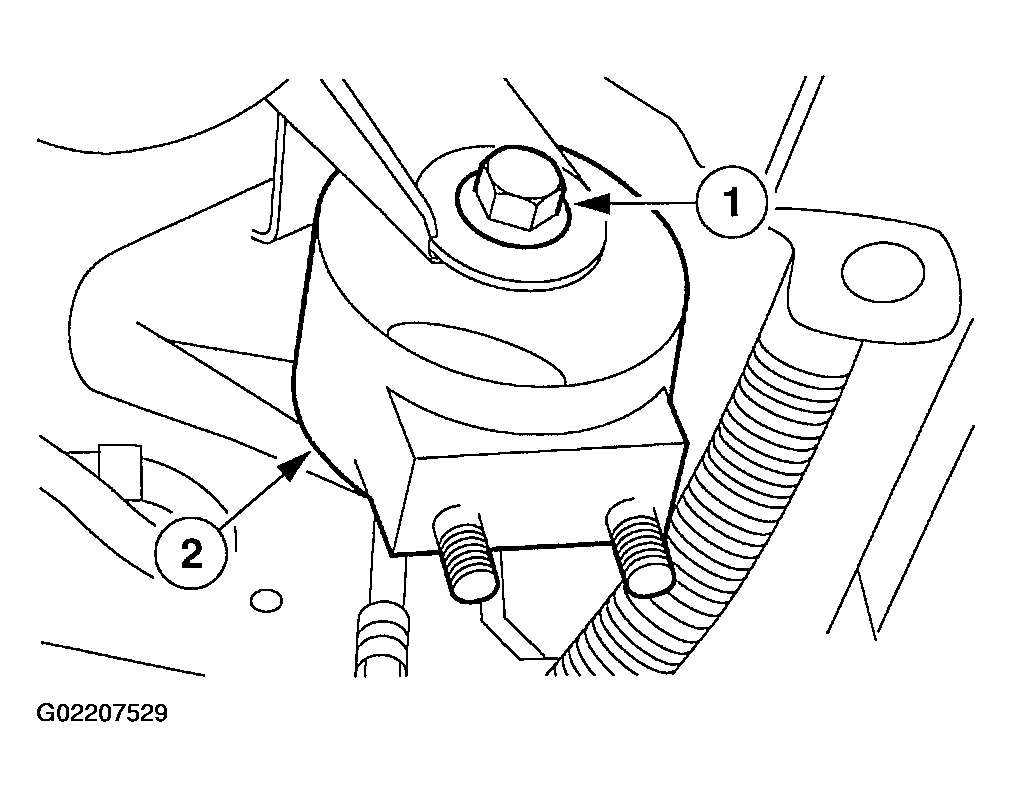

      Fig 5: Removing Lower Front Support Insulator
      G02207529Courtesy of FORD MOTOR CO.
    2. Remove the lower front support isolator.
