Shift Lever: Removal

  1. Raise and support the vehicle.
  2. Remove the heat shield front (RH) bolt.

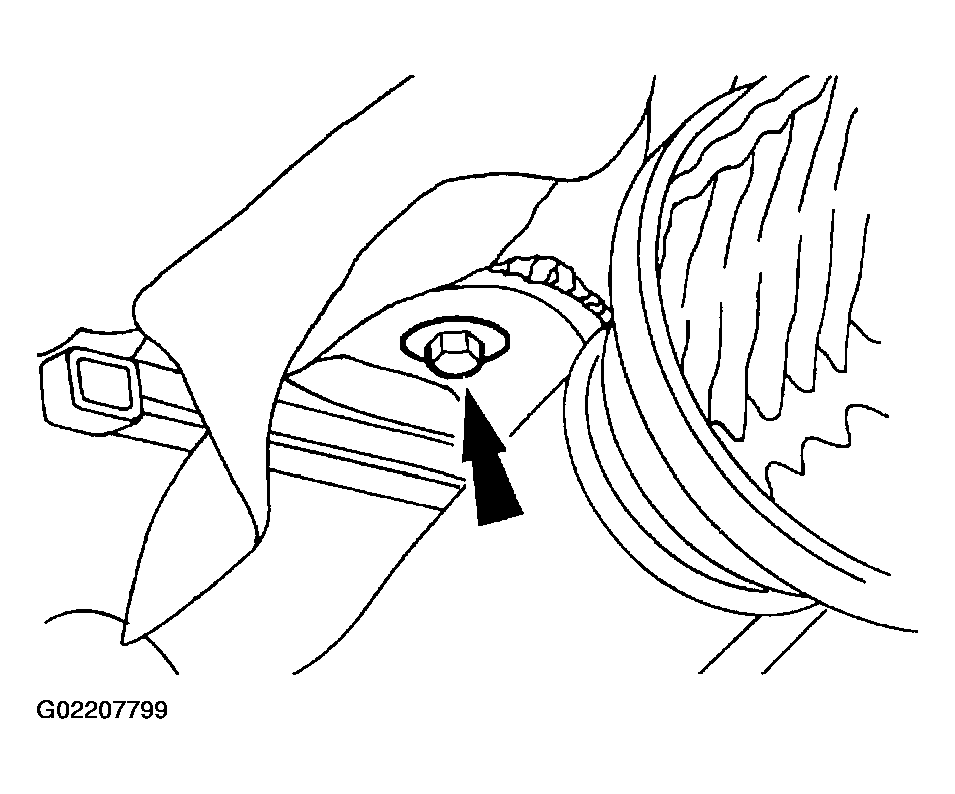

    Fig 1: Removing Heat Shield Front (RH) Bolt
    G02207799Courtesy of FORD MOTOR CO.
  3. Remove the heat shield middle (RH) bolt.
    Fig 2: Removing Heat Shield Middle (RH) Bolt
    G02207800Courtesy of FORD MOTOR CO.
  4. Remove the heat shield rear (LH) bolt.
    Fig 3: Removing Heat Shield Rear (LH) Bolt
    G02207801Courtesy of FORD MOTOR CO.
  5. Remove the heat shield rear bolt.
    Fig 4: Removing Heat Shield Rear Bolt
    G02207802Courtesy of FORD MOTOR CO.
  6. Remove the transmission gearshift rod-to-shift lever nut.

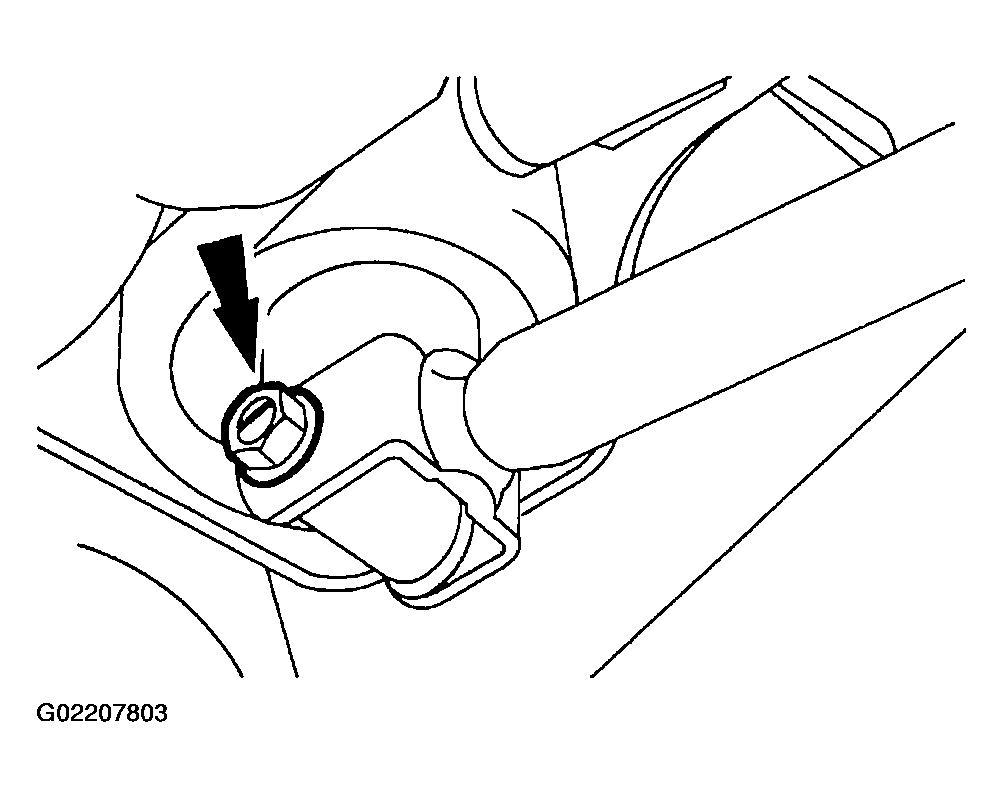

    Fig 5: Removing Transmission Gearshift Rod-To-Shift Lever Nut
    G02207803Courtesy of FORD MOTOR CO.
  7. Remove the transmission gearshift lever clamp (7K104) bolt and the transmission gearshift rod and clevis (7B140).
    Fig 6: Removing Transmission Gearshift Lever Clamp Bolt And Transmission Gearshift Rod And Clevis
    G02207804Courtesy of FORD MOTOR CO.
  8. Remove the floor console.
  9. Pry out the transmission gearshift lever support shaft spring (7227) and remove the gearshift lever (7210).

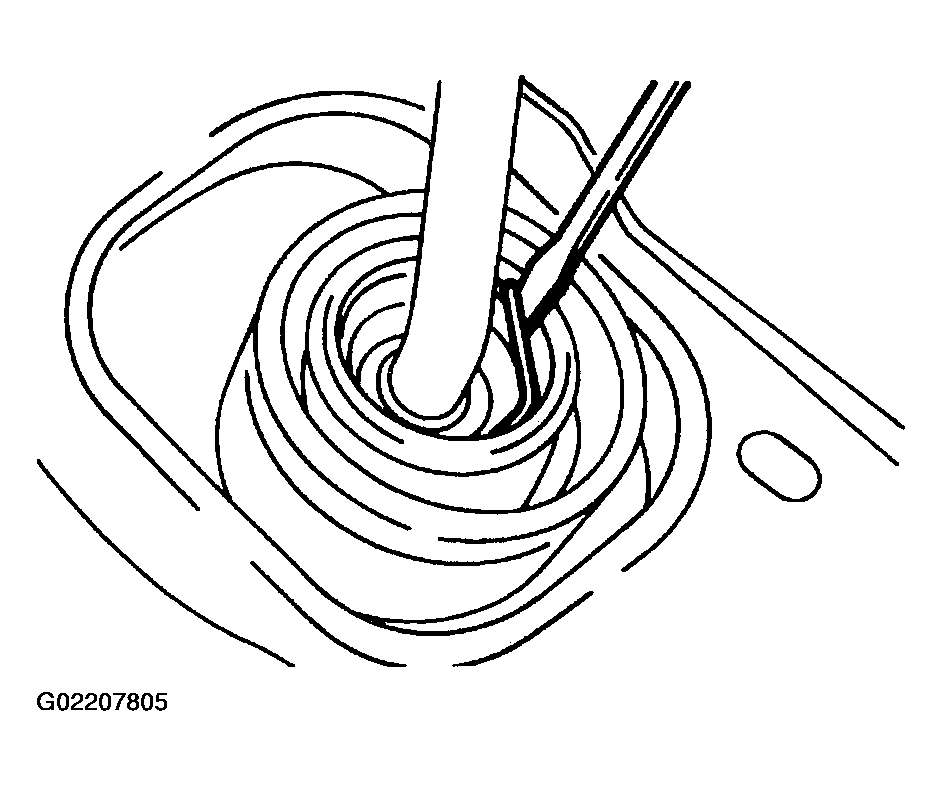

    Fig 7: Removing Gearshift Lever
    G02207805Courtesy of FORD MOTOR CO.
