Home >> Ford >> 2002 >> ZX2 Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission External Controls >> Removal And Installation >> Shift Lever - Boot >> Removal

Shift Lever - Boot: Removal

NOTE: Zetec shown, S/R series similar
  1. Turn the knob in a counterclockwise direction and remove the gearshift lever knob.

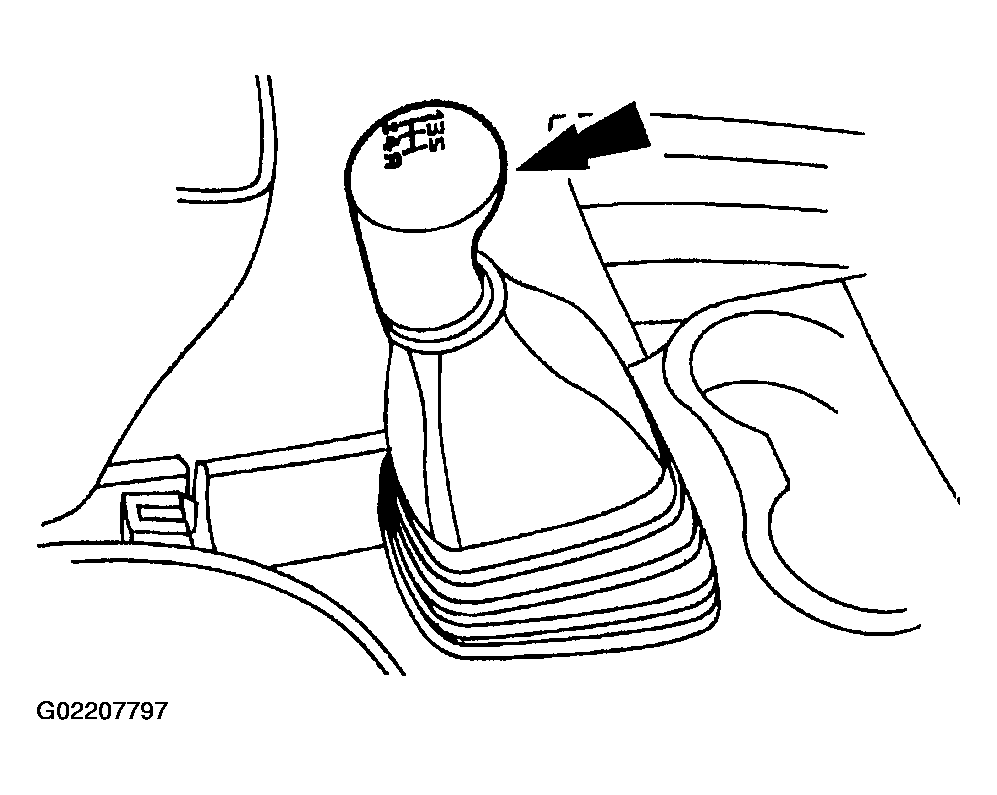

    Fig 1: Removing Gearshift Lever Knob
    G02207797Courtesy of FORD MOTOR CO.
  2. Remove the floor console.
  3. Remove the screws and the gearshift lever boot (7277).

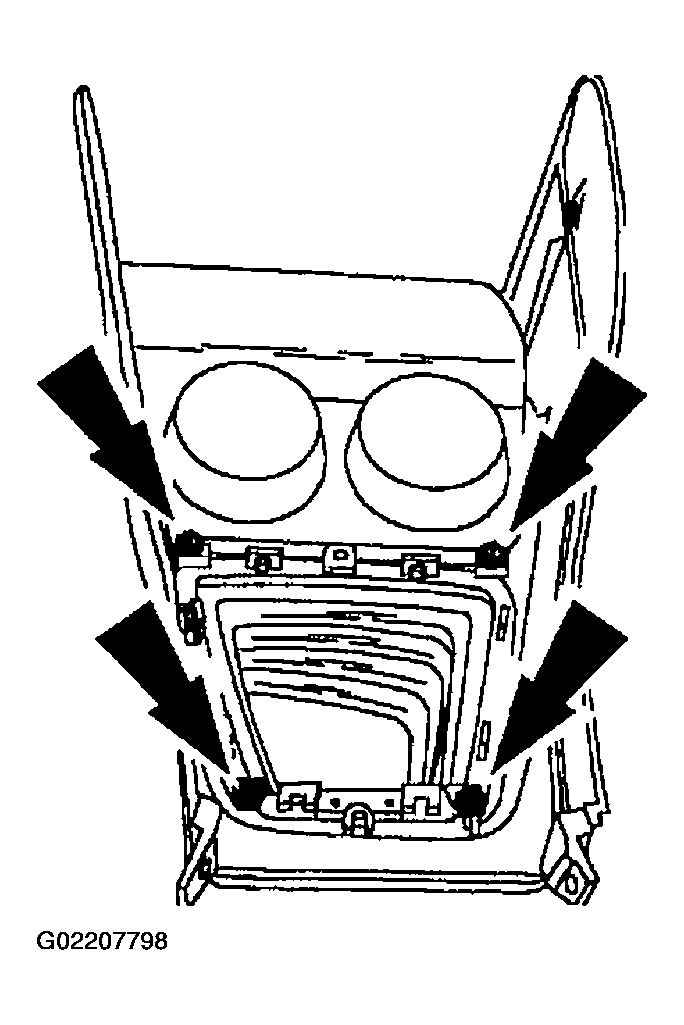

    Fig 2: Removing Screws And Gearshift Lever Boot
    G02207798Courtesy of FORD MOTOR CO.
