Front Seat: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Connect the underseat electrical connector.

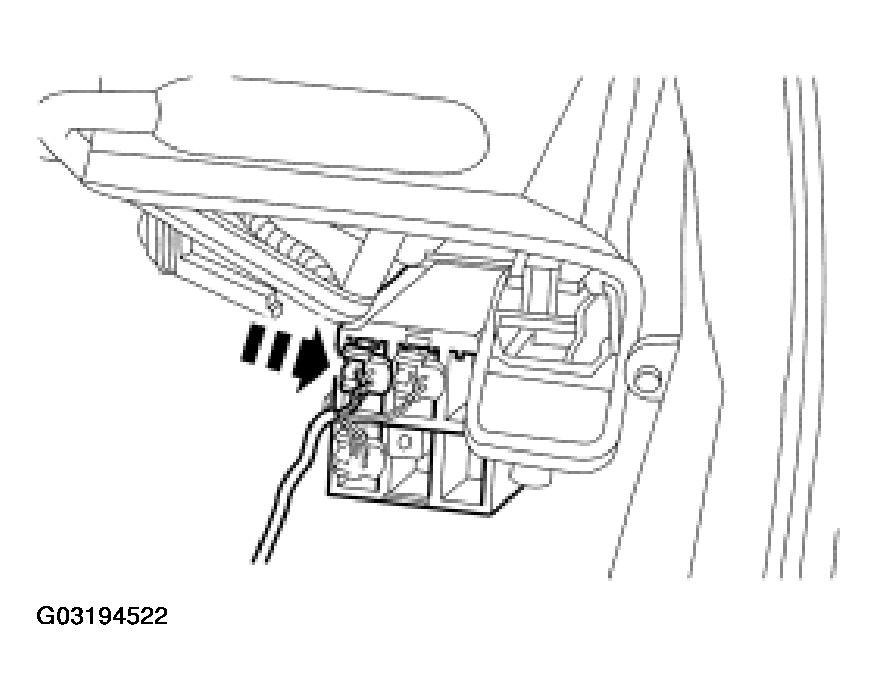

Fig 1: Connecting Underseat Electrical Connector
Courtesy of FORD MOTOR CO.
Install the rear retaining bolts.

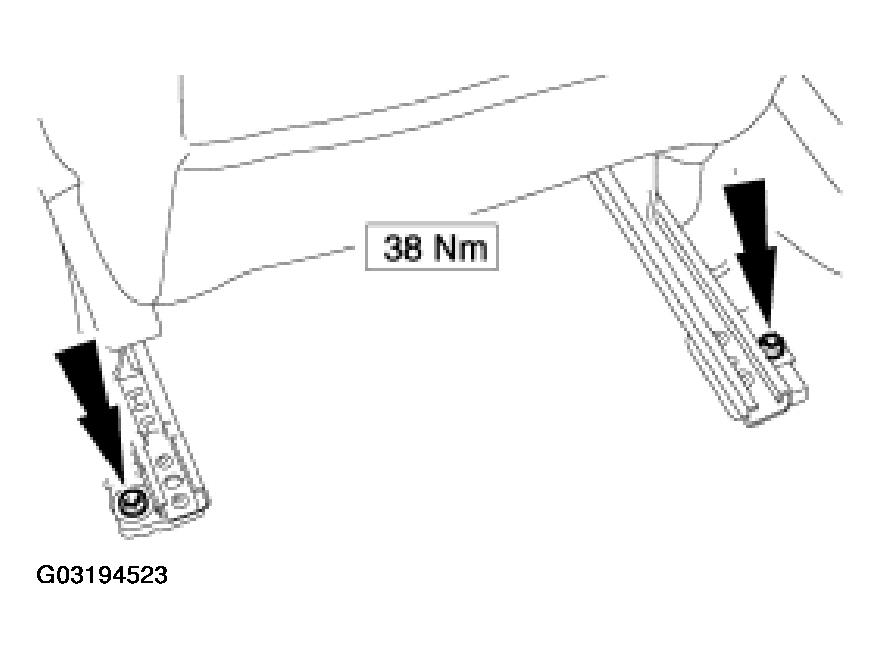

Fig 2: Installing Rear Retaining Bolts
Courtesy of FORD MOTOR CO.
Reactivate the SRS. For additional information, refer to ACTIVATING SYSTEM .
Move the seat fully rearward.
Install the front retaining bolts.

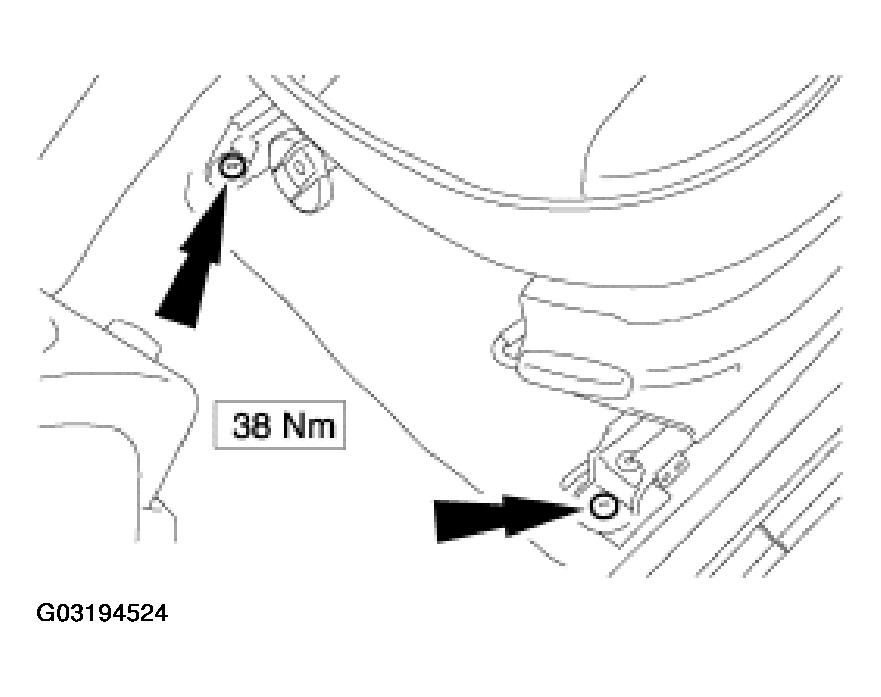

Fig 3: Installing Front Retaining Bolts
Courtesy of FORD MOTOR CO.
Install the seat track outer trim cover.
