Rear Seat Backrest: Assembly

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

To assemble, reverse the disassembly procedure.

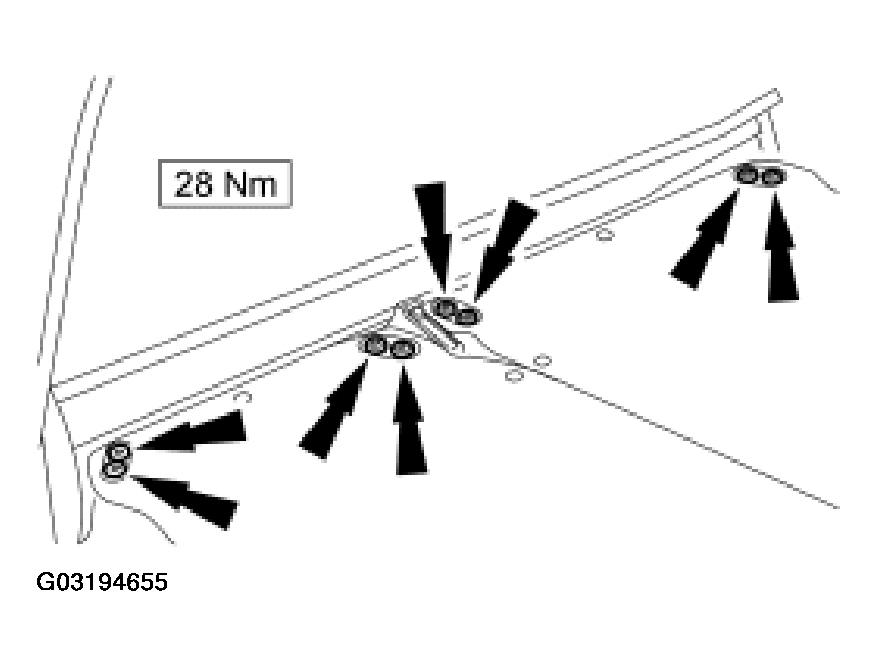

Fig 1: Installing Rear Seat Backrest
Courtesy of FORD MOTOR CO.

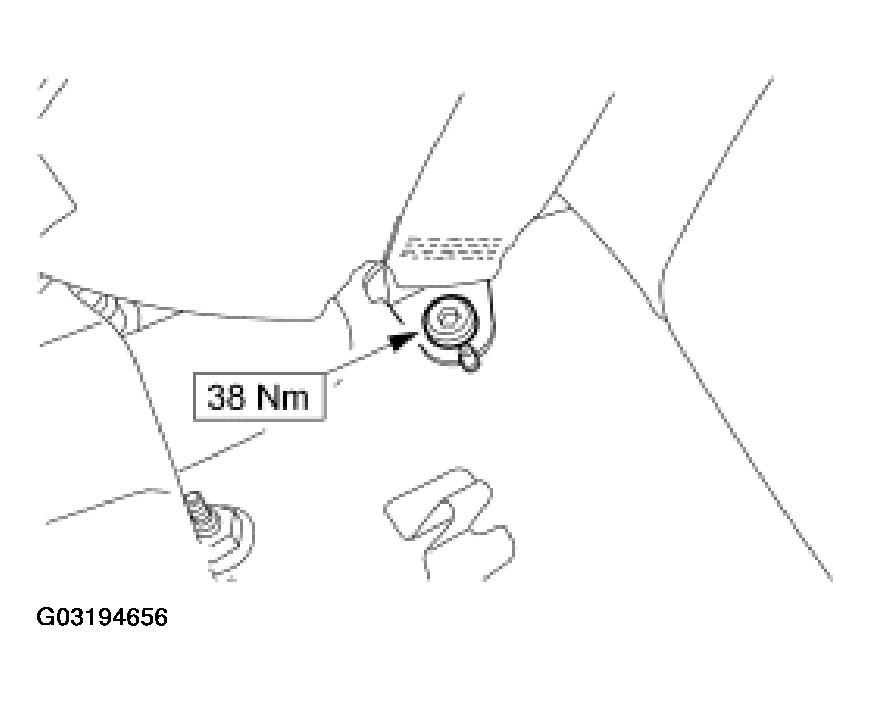

Fig 2: Attaching Outer Safety Belt Lower Anchors
Courtesy of FORD MOTOR CO.

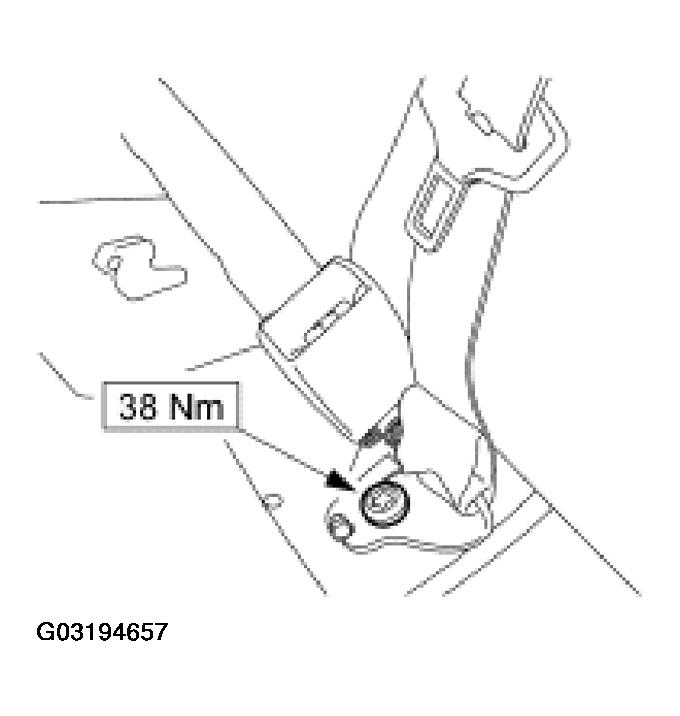

Fig 3: Attaching Center Rear Safety Belt Lower Anchors
Courtesy of FORD MOTOR CO.
