Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The stabilizer bar bushings must be located correctly on the stabilizer bar, with no lubricant.

NOTE: Make sure the bushing nipple is on the LH side.

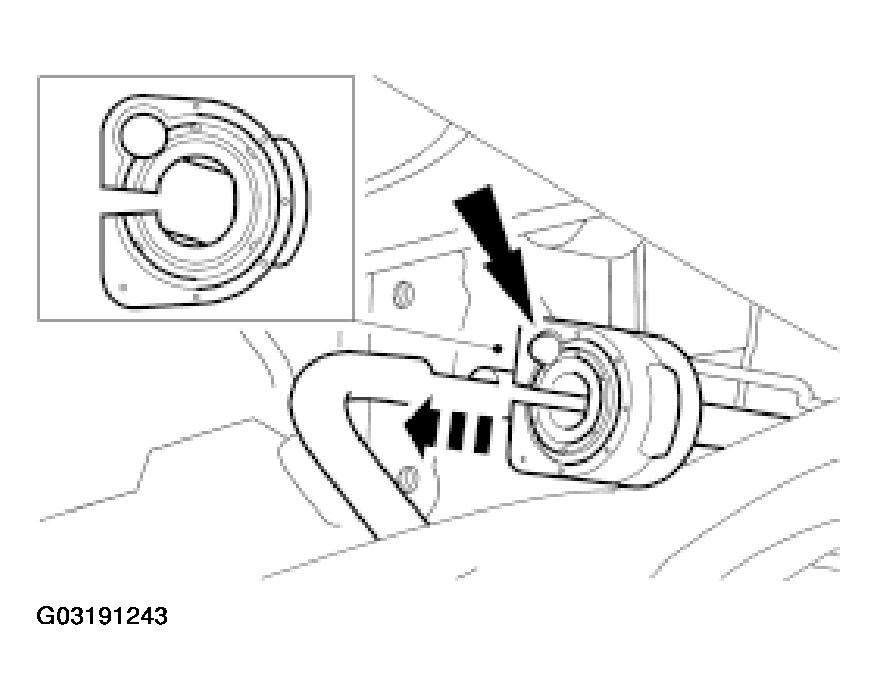

Fig 1: Installing Bushings Onto Stabilizer Bar

Courtesy of FORD MOTOR CO.

Install the bushings onto the stabilizer bar.

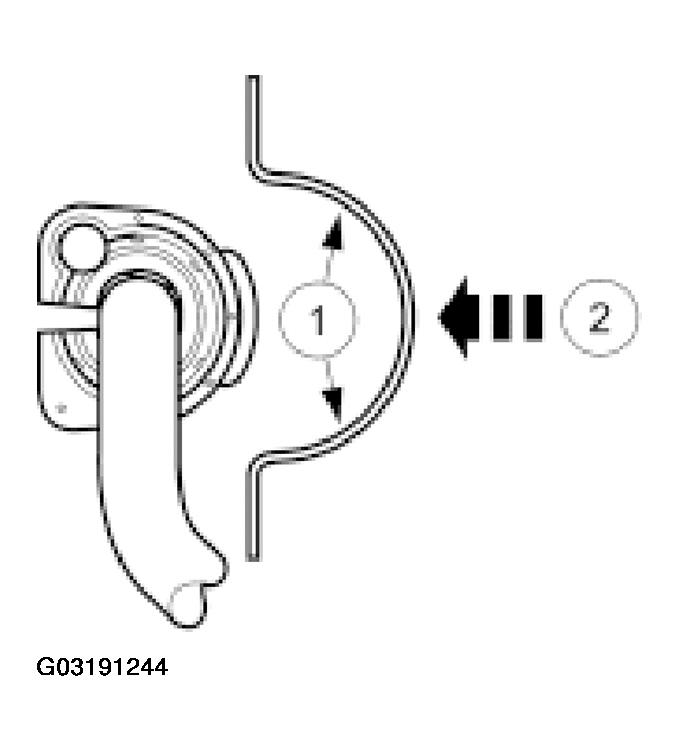

Install the stabilizer bar clamps onto the stabilizer bar.
1. Apply water to the clamps to assist installation.
2. Press the clamps onto the bushings.
Fig 2: Installing Stabilizer Bar Clamps
Courtesy of FORD MOTOR CO.

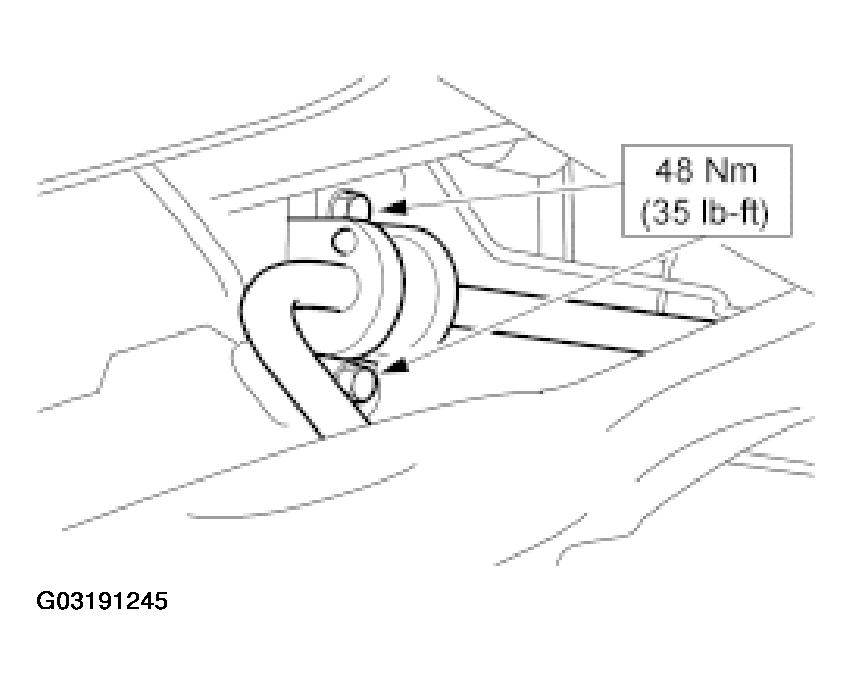

Install the stabilizer bar (two bolts each side).

Fig 3: Installing Stabilizer Bar Bolts
Courtesy of FORD MOTOR CO.

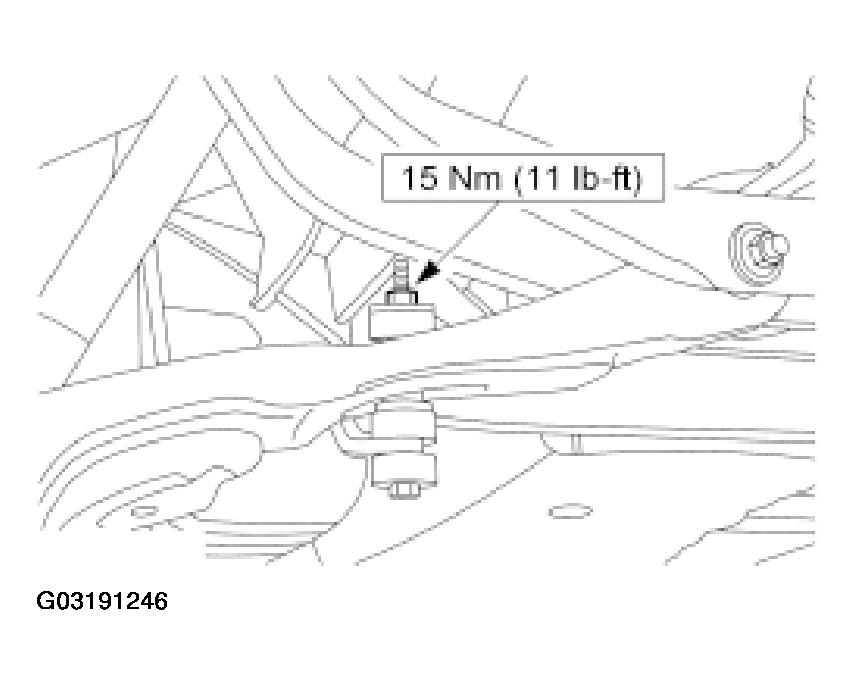

Attach the stabilizer bar to the rear lower arms.

Fig 4: Installing Stabilizer Bar To Rear Lower Arms
Courtesy of FORD MOTOR CO.
