Spring - Wagon: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the top seat mounting is installed, and the spring ends butt correctly against the upper and lower spring seats.

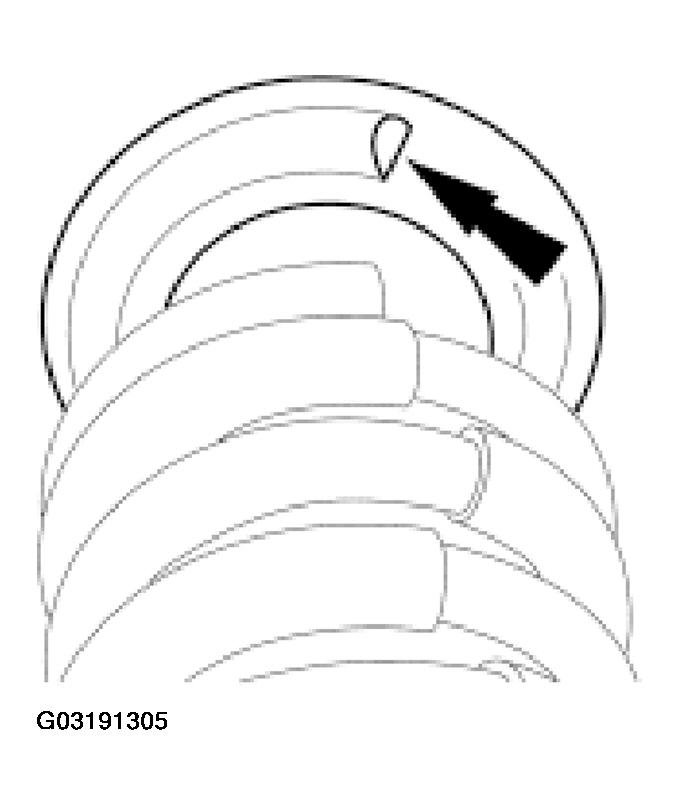

Fig 1: Installing Top Spring Mounting

Courtesy of FORD MOTOR CO.

Install the top spring mounting onto the spring.
With the aid of another technician, install the spring.
1. Pull the stabilizer bar away from the rear lower arm.
2. Raise the rear lower arm.

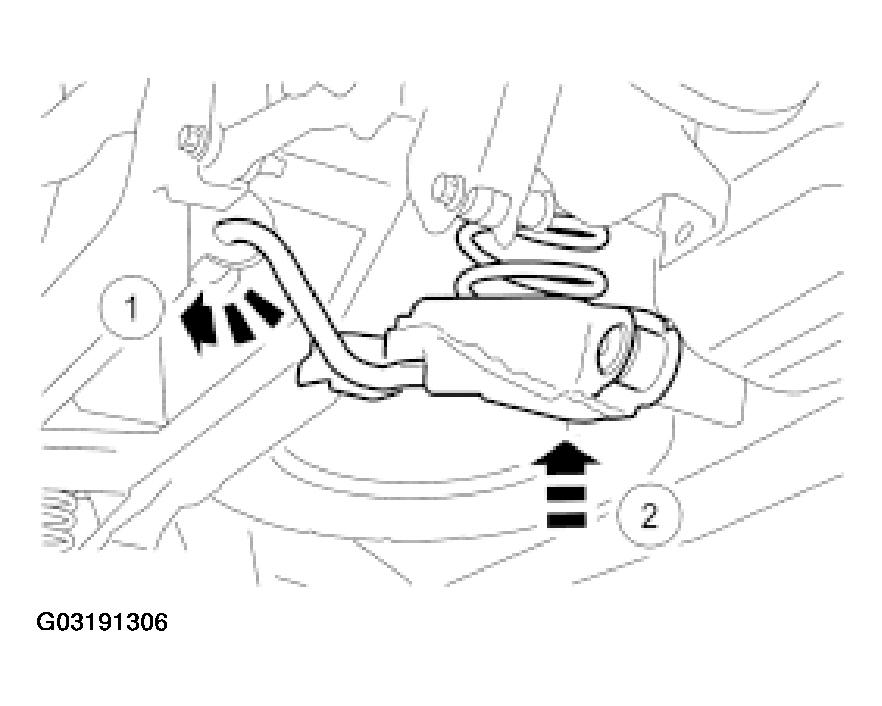

Fig 2: Installing Spring
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the spring butts against the rear lower arm spring stop and is visible through the drain hole.

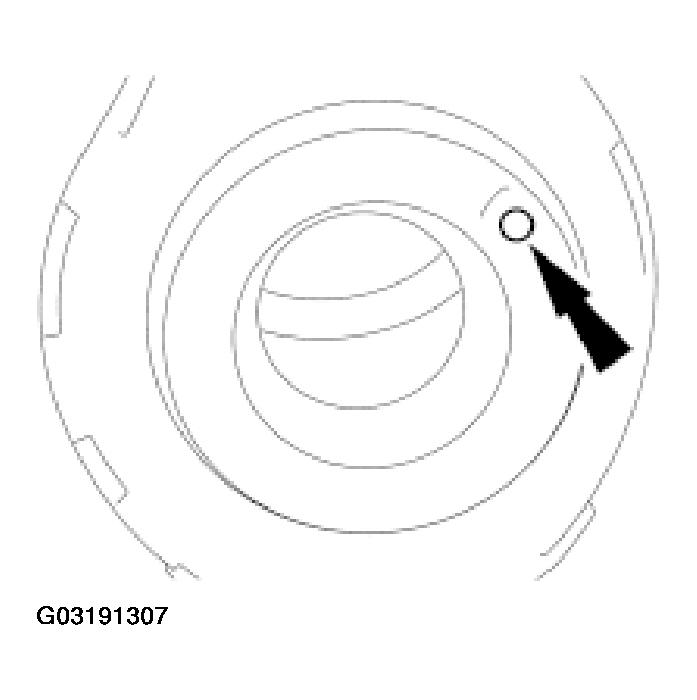

Fig 3: Rotating Spring

Courtesy of FORD MOTOR CO.

Rotate the spring clockwise until the spring-end butts against the rear lower arm spring stop.

WARNING: The spring is under extreme tension; care must be taken at all times. Failure to follow this instruction may result in personal injury.

NOTE: Do not fully tighten the rear lower arm to wheel knuckle bolt at this stage.

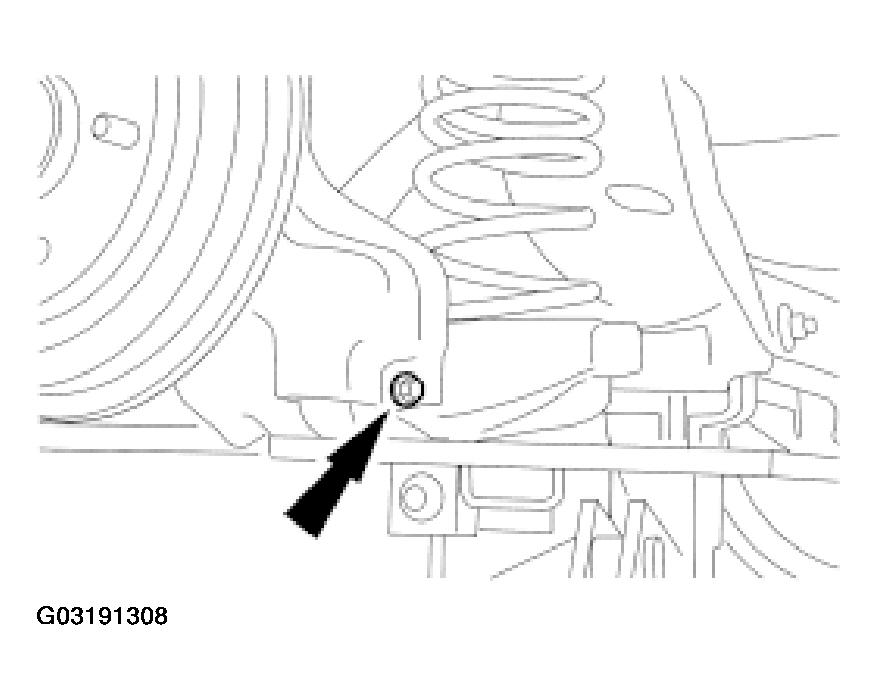

Fig 4: Installing Transmission Jack

Courtesy of FORD MOTOR CO.

Using a suitable transmission jack, attach the rear lower arm to the wheel knuckle.
Using a suitable transmission jack, raise the rear lower arm 32 mm (1.25 inches).

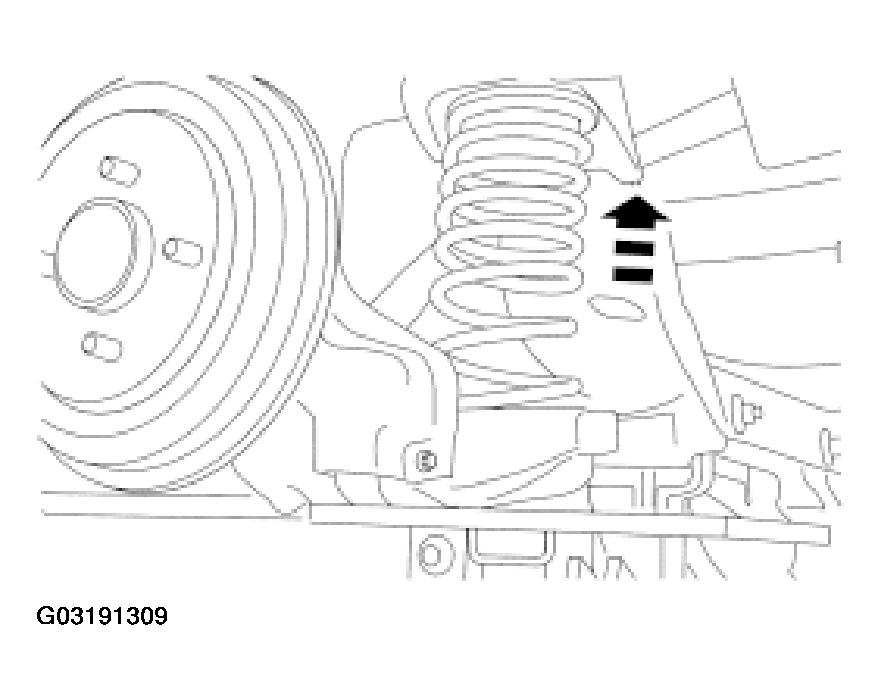

Fig 5: Raising Rear Lower Arm
Courtesy of FORD MOTOR CO.
Tighten the rear lower arm to wheel knuckle bolt.

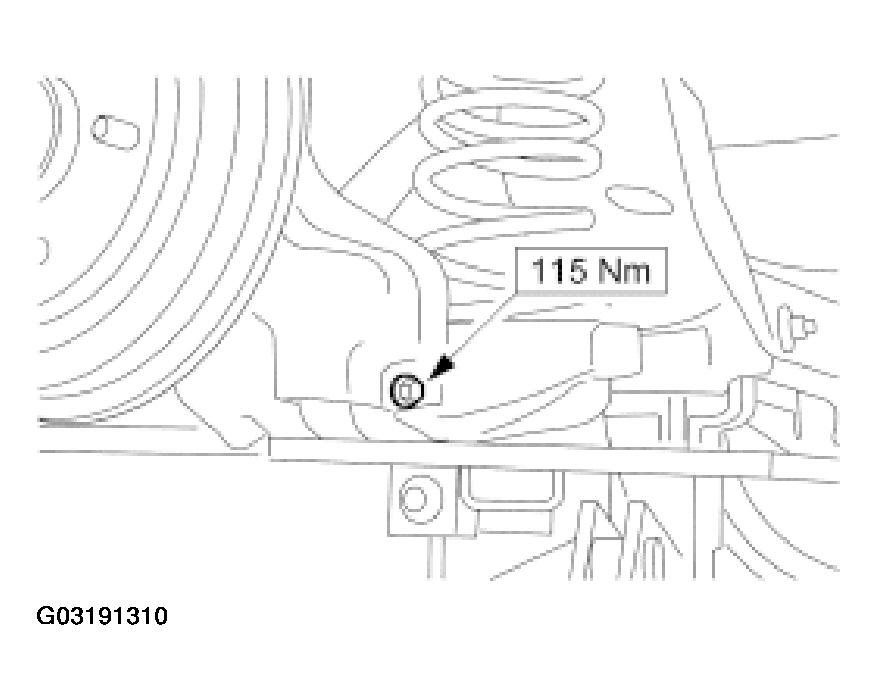

Fig 6: Tightening Rear Lower Arm To Wheel Knuckle Bolt
Courtesy of FORD MOTOR CO.
Attach the stabilizer bar to the rear lower arms.

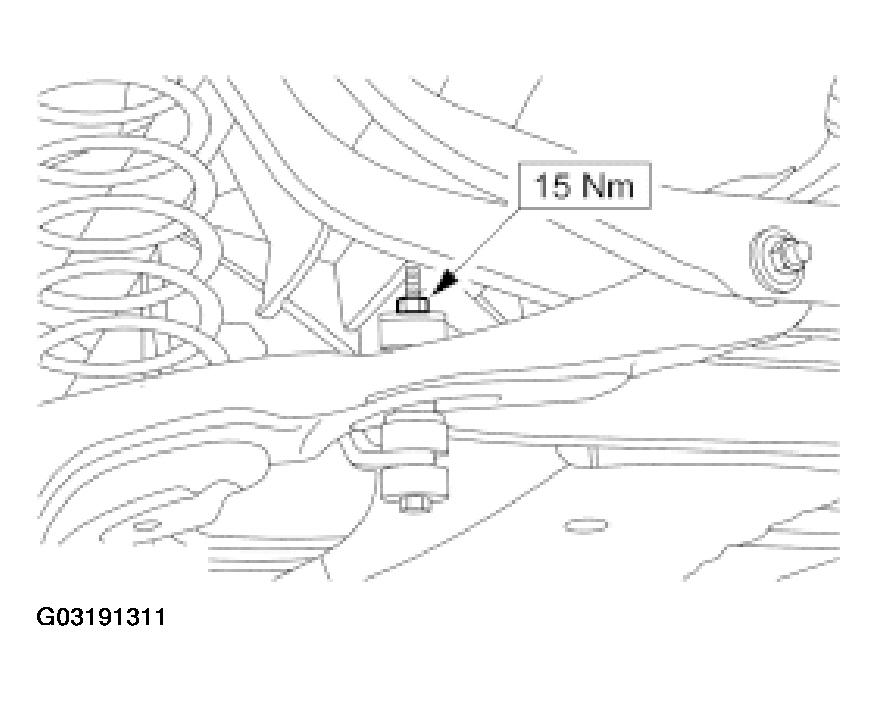

Fig 7: Installing Stabilizer Bar To Rear Lower Arms
Courtesy of FORD MOTOR CO.
Install the rear wheel and tire. For additional information, refer to WHEELS AND TIRES .
