Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

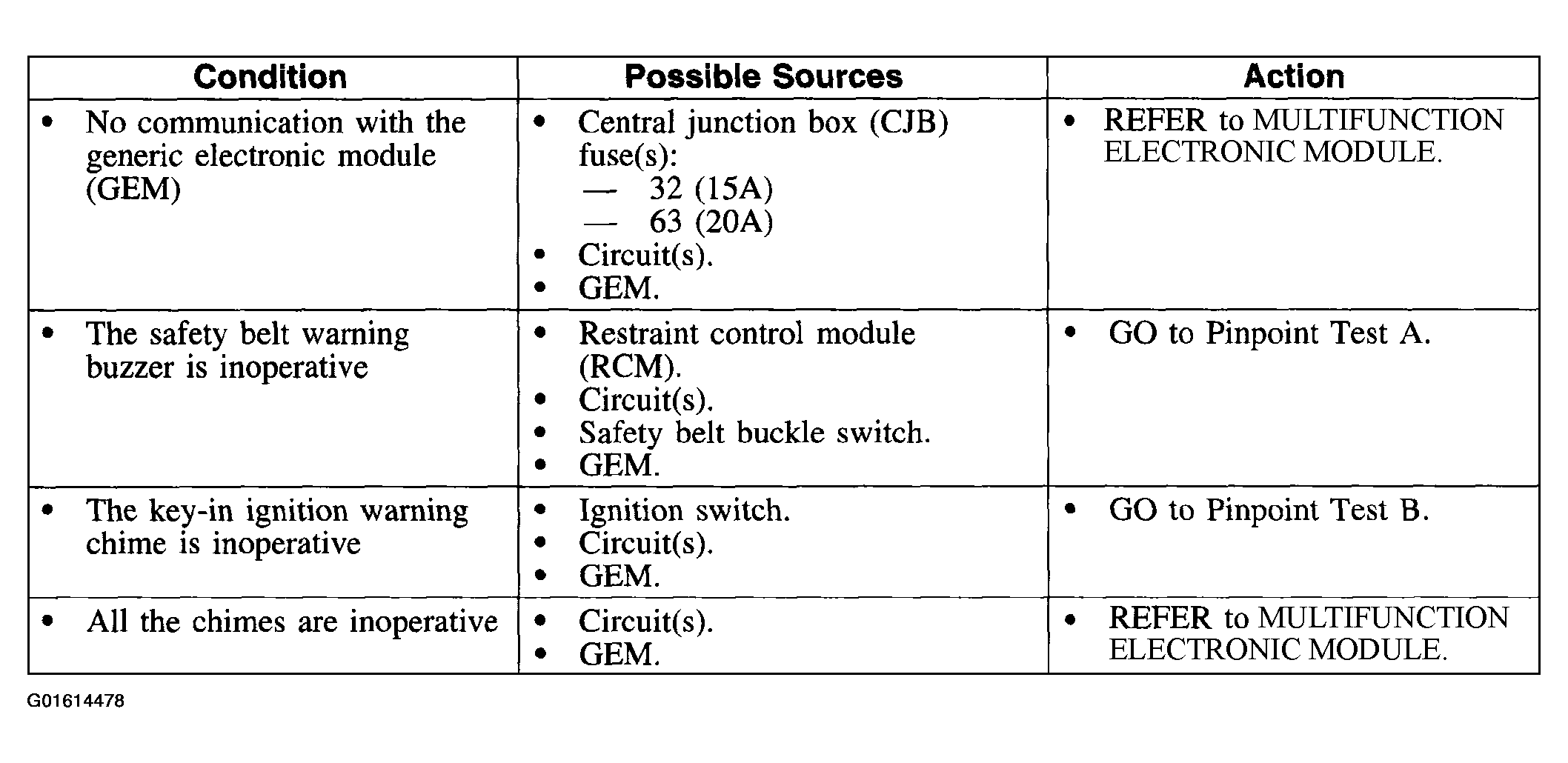

Fig 1: Symptom Chart For Warning Devices
G01614478Courtesy of FORD MOTOR CO.
