Valve Tappet - Inspection

Push rod engines

  1. Inspect the hydraulic valve tappet and roller for damage. If any damage is found, inspect the camshaft lobes and valves for damage.

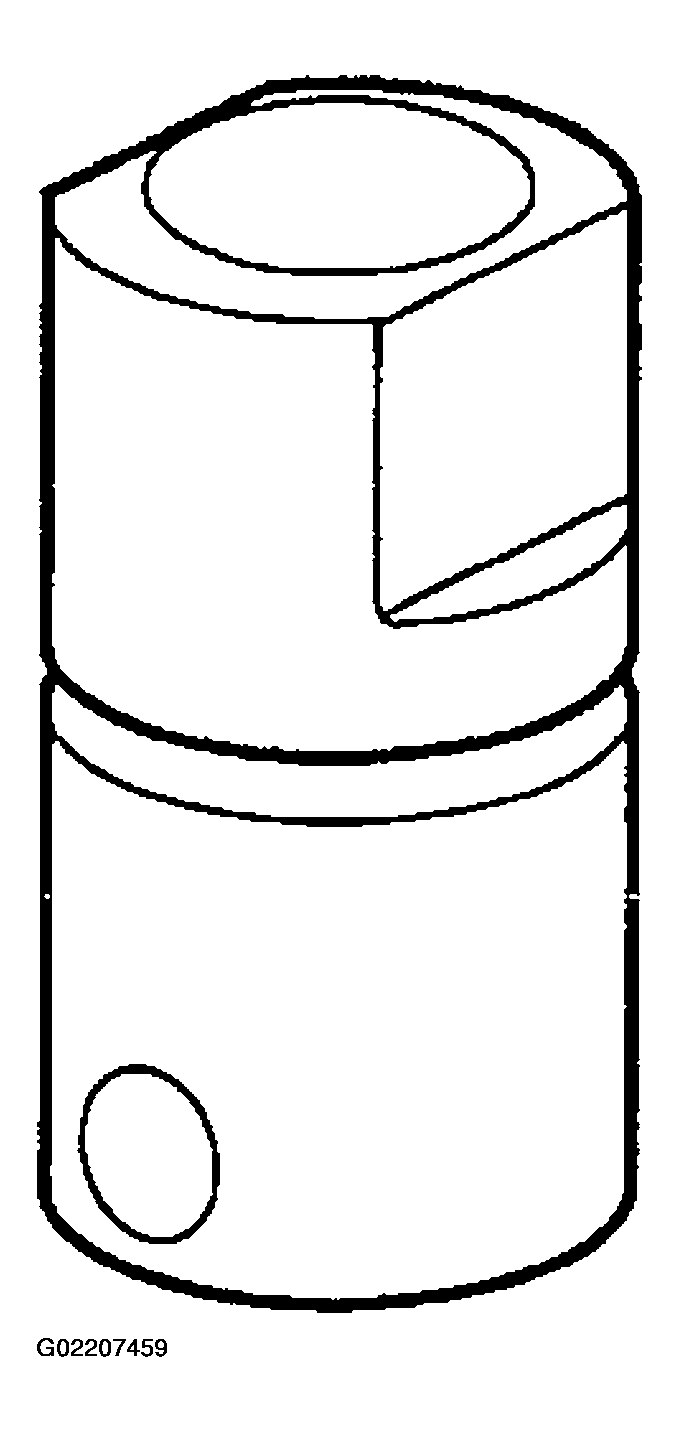

    Fig 1: Inspecting Hydraulic Valve Tappet And Roller (Push Rod Engines)
    G02207459Courtesy of FORD MOTOR CO.

    OHC engines

    Fig 2: Inspecting Hydraulic Valve Tappet And Roller (OHC Engines)
    G02207460Courtesy of FORD MOTOR CO.
