Front Planetary and One-Way Clutch Assembly: Disassembly

  1. Remove the one-way clutch outer race.

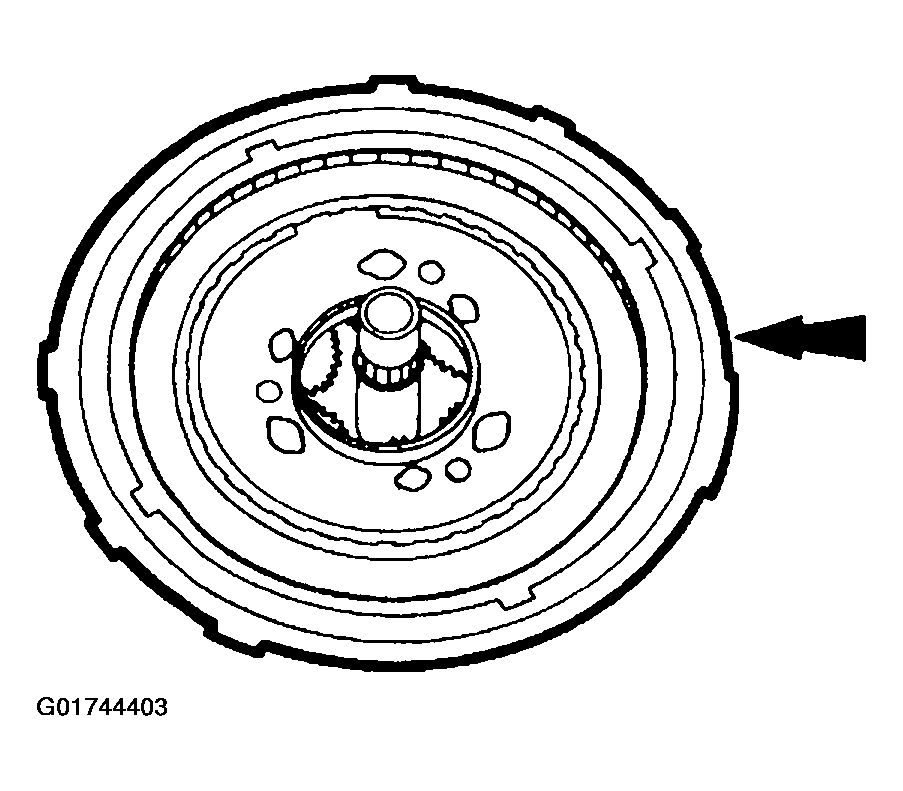

    2. Fig 1: Removing One-Way Clutch Outer Race
    G01744403Courtesy of FORD MOTOR CO.
  2. Remove the planet gear bearing thrust washer (7F368).

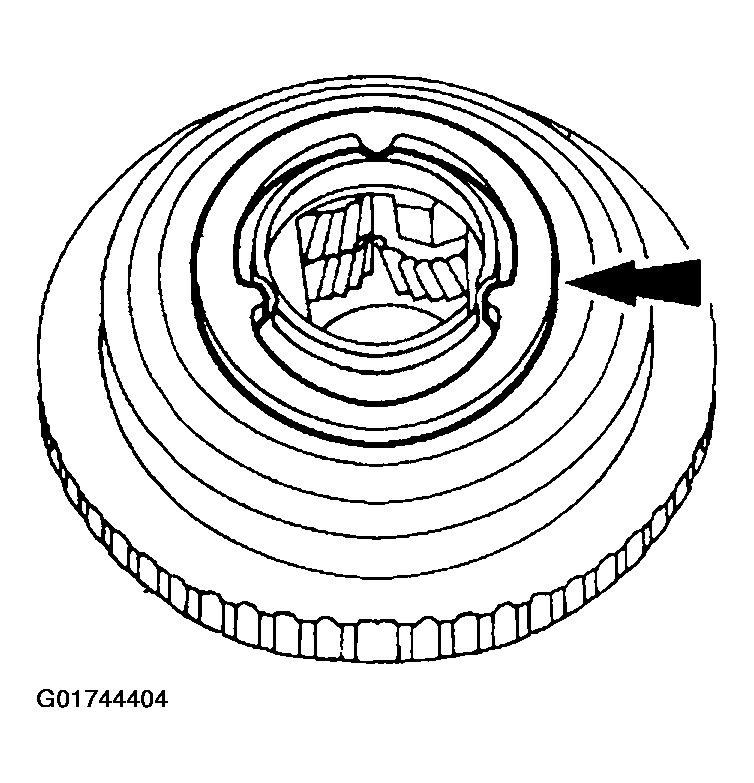

    3. Fig 2: Removing Planet Gear Bearing Thrust Washer
    G01744404Courtesy of FORD MOTOR CO.
  3. Remove the clutch pressure plate snap ring.

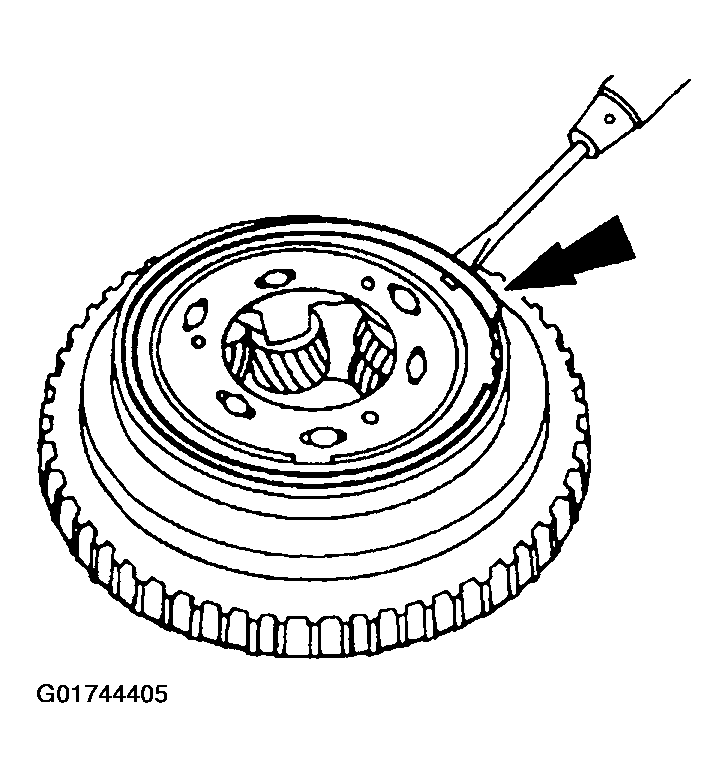

    4. Fig 3: Removing Clutch Pressure Plate Snap Ring
    G01744405Courtesy of FORD MOTOR CO.
  4. Remove the front planet (7A398)

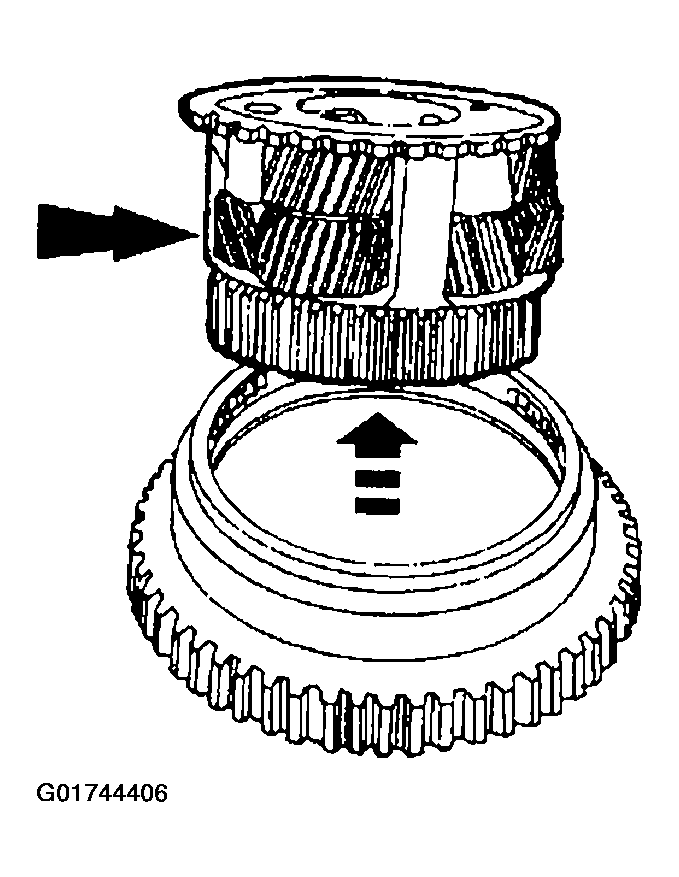

    5. Fig 4: Removing Front Planet
    G01744406Courtesy of FORD MOTOR CO.
