Removal And Installation: Radiator: Installation

WARNING: This page is about a different car, the 2002 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

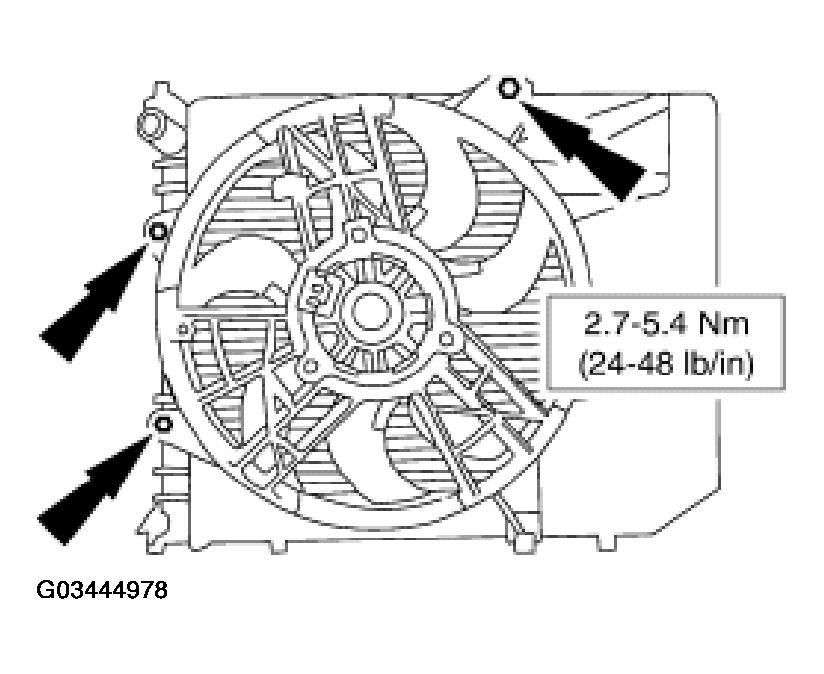

Fig 1: Torque Specification Of Fan Motor, Blade And Shroud Assembly Bolts
Courtesy of FORD MOTOR CO.

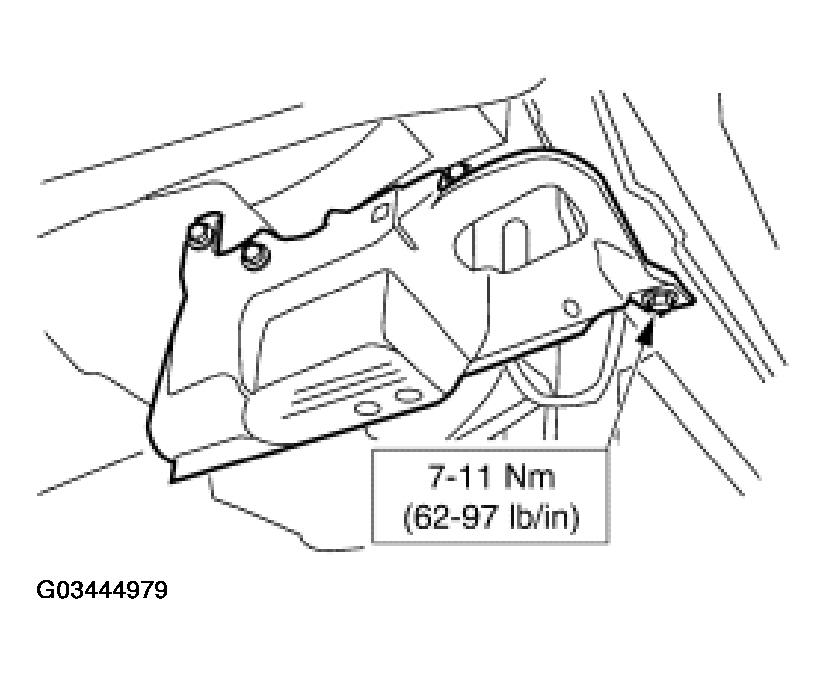

Fig 2: Torque Specification Of Oil Cooler Bolts
Courtesy of FORD MOTOR CO.
Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Start the engine and check all hoses and connections for leaks. Allow the engine to warm up so that the water thermostat (8575) opens.
Stop the engine. Top off the coolant recovery reservoir as necessary to maintain minimum cold fill level.
