In-Vehicle Repair: Flywheel: Installation

WARNING: This page is about a different car, the 2002 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specifications WSK-M2G315-A5 to flywheel-to-crankshaft bolt threads before installation.
    Fig 1: Installing Flywheel-To-Crankshaft Bolts
    G02206816Courtesy of FORD MOTOR CO.
  1. Position the (A) flywheel onto the crankshaft and install the (B) flywheel-to-crankshaft bolts.
  2. Torque the flywheel-to-crankshaft bolts in sequence to specification.

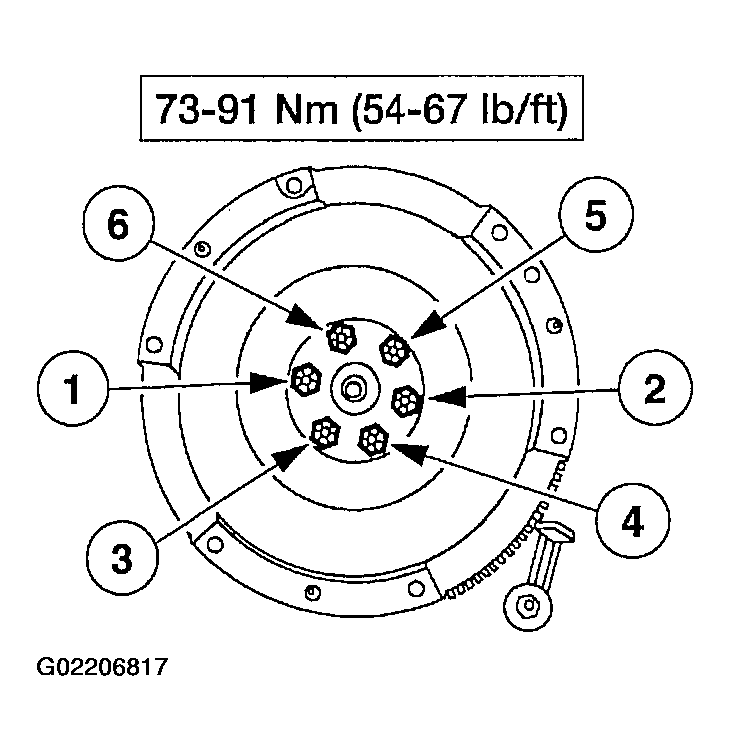

    Fig 2: Tightening Flywheel-To-Crankshaft Bolts In Sequence
    G02206817Courtesy of FORD MOTOR CO.
  3. Install the clutch disc. For additional information, refer to CLUTCH ASSEMBLY .
