In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2002 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specifications WSK-M2G315-A5 to flexplate bolts before installation.
  1. Position the flexplate onto the crankshaft and install the bolts.
  2. Tighten the bolts in sequence to specification.

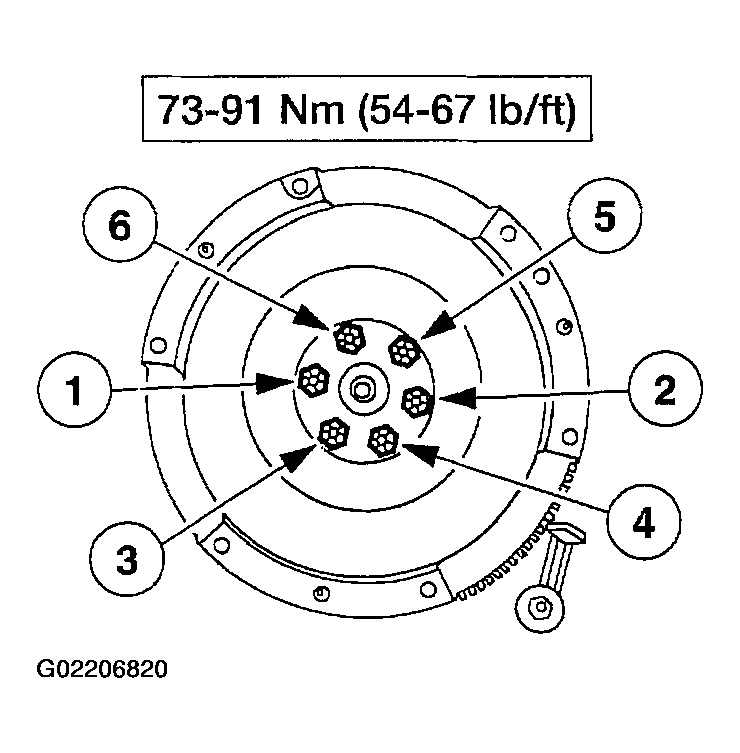

    Fig 1: Tightening Bolts In Sequence
    G02206820Courtesy of FORD MOTOR CO.
  3. Install the transmission/transaxle. For additional information, refer to REMOVAL & INSTALLATION .
