Removal & Installation

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable. Carefully pry to release 4 clips and remove climate control panel finish panel. See Fig 1. If equipped, disconnect 4WD control switch connector. See Fig 2. Remove steering column cover panel. See Fig 3. Insert a thin tool and remove headlamp switch. See Fig 4 and Fig 5 . Disconnect electrical connectors. See Fig 6.
  2. Remove screws and remove left instrument panel finish panel. See Fig 7. Remove screws and remove center instrument panel finish panel. See Fig 8. Remove screw. See Fig 9. Disconnect electrical connector and remove sensor from hose. See Fig 10.
  3. To install, reverse removal procedure. Check system for proper operation.

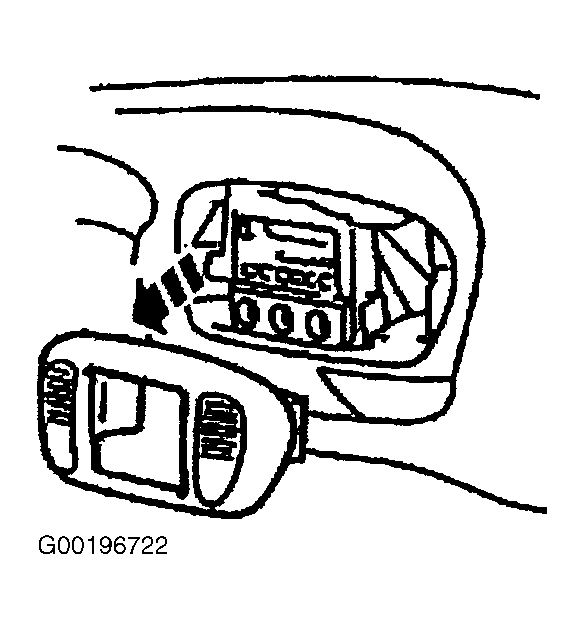

Fig 1: Removing & Installing Climate Control Panel Finish Panel
G00196722Courtesy of FORD MOTOR CO.

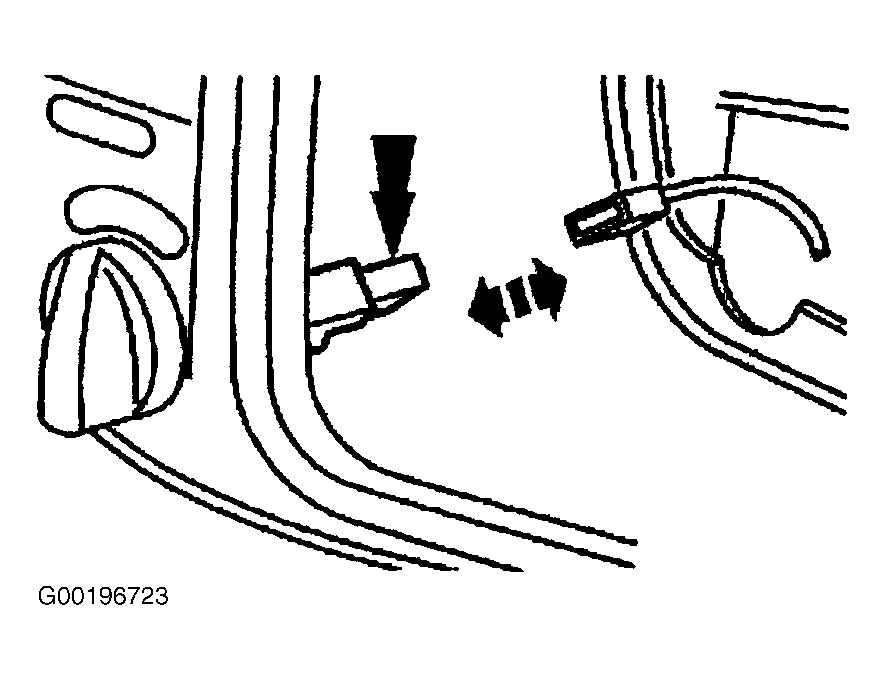

Fig 2: Disconnecting 4WD Control Switch Connector
G00196723Courtesy of FORD MOTOR CO.

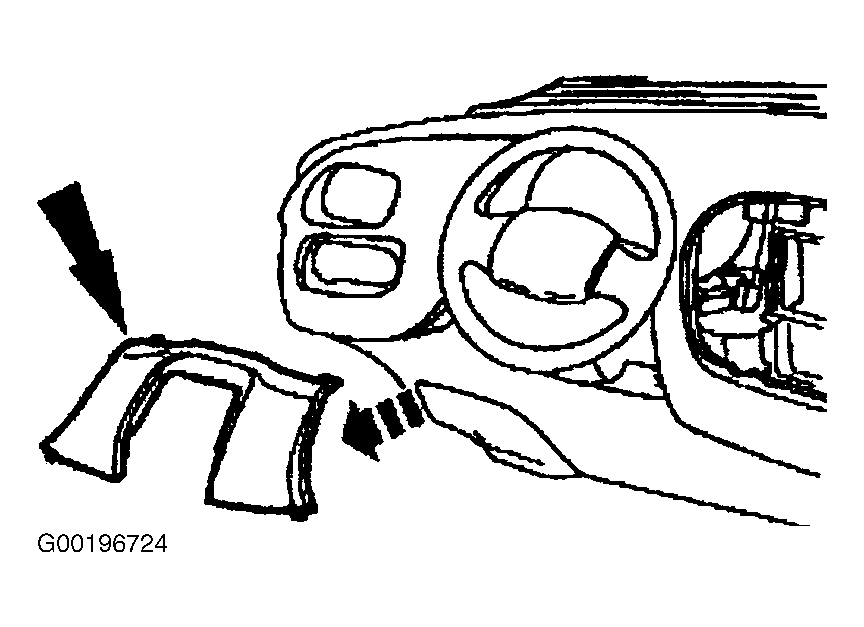

Fig 3: Removing & Installing Steering Column Panel
G00196724Courtesy of FORD MOTOR CO.

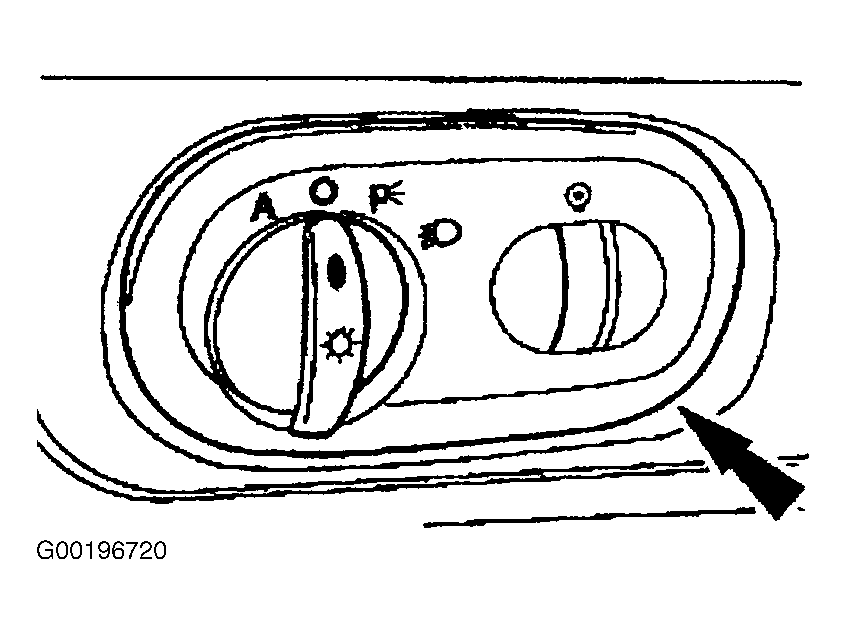

Fig 4: Removing & Installing Headlamp Switch (1 Of 2)
G00196720Courtesy of FORD MOTOR CO.

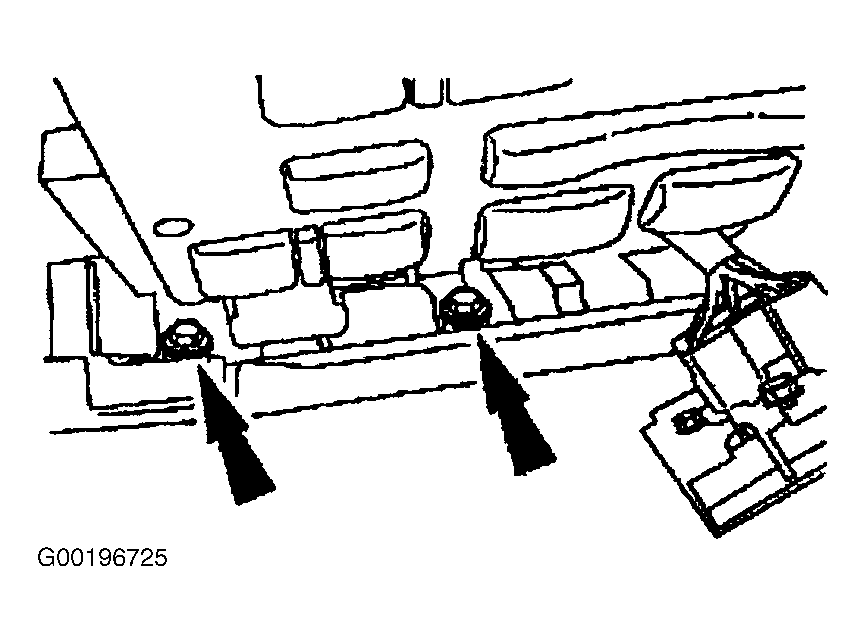

Fig 5: Removing & Installing Headlamp Switch (2 Of 2)
G00196725Courtesy of FORD MOTOR CO.

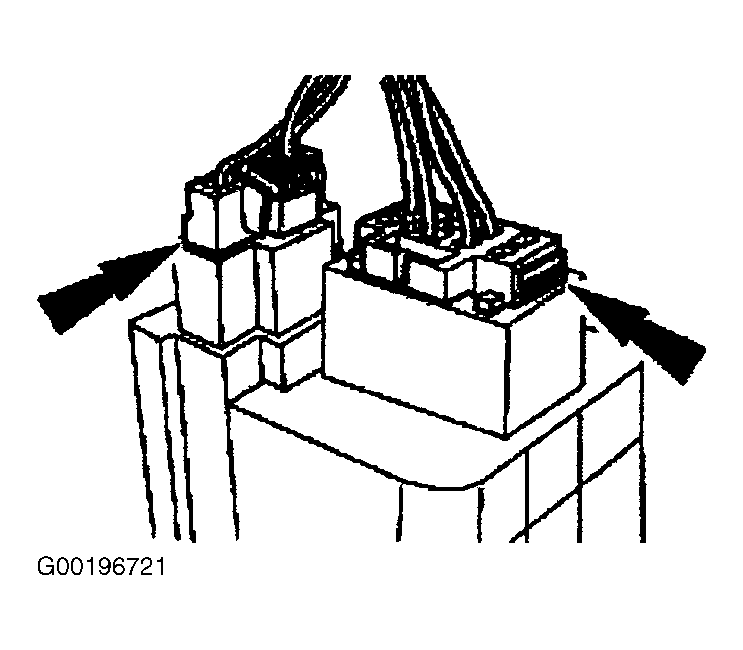

Fig 6: Disconnecting Headlamp Switch Connectors
G00196721Courtesy of FORD MOTOR CO.

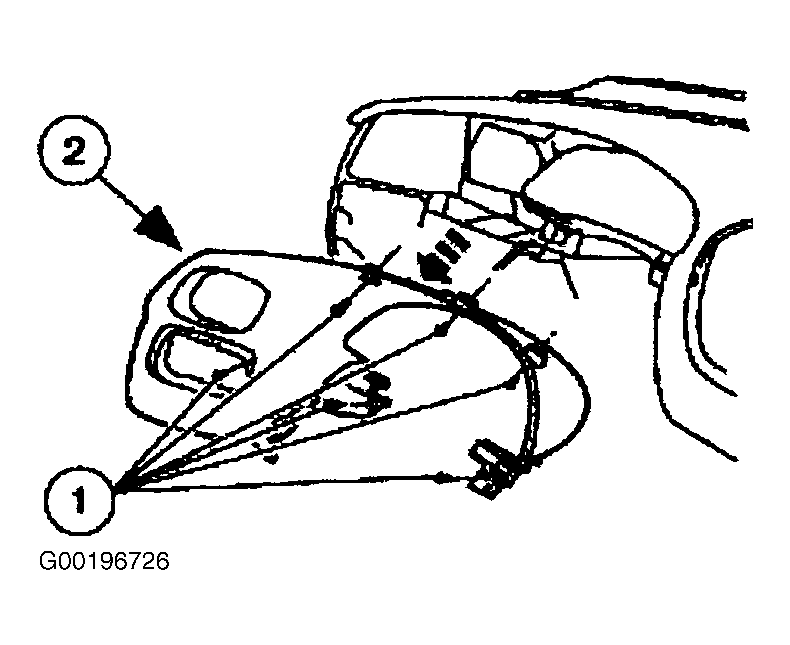

Fig 7: Removing & Installing Left Instrument Panel Finish Panel
G00196726Courtesy of FORD MOTOR CO.

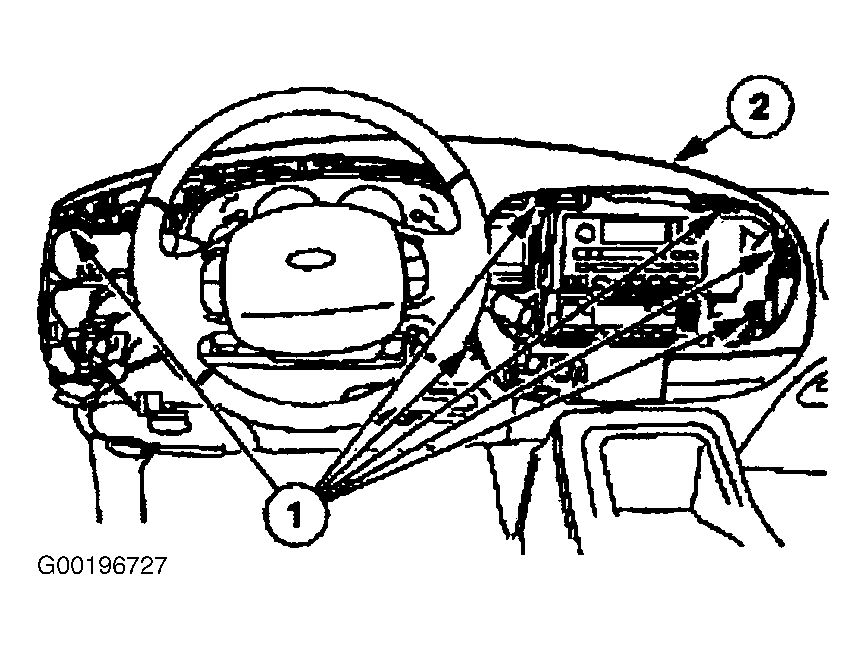

Fig 8: Removing & Installing Center Instrument Panel Finish Panel
G00196727Courtesy of FORD MOTOR CO.

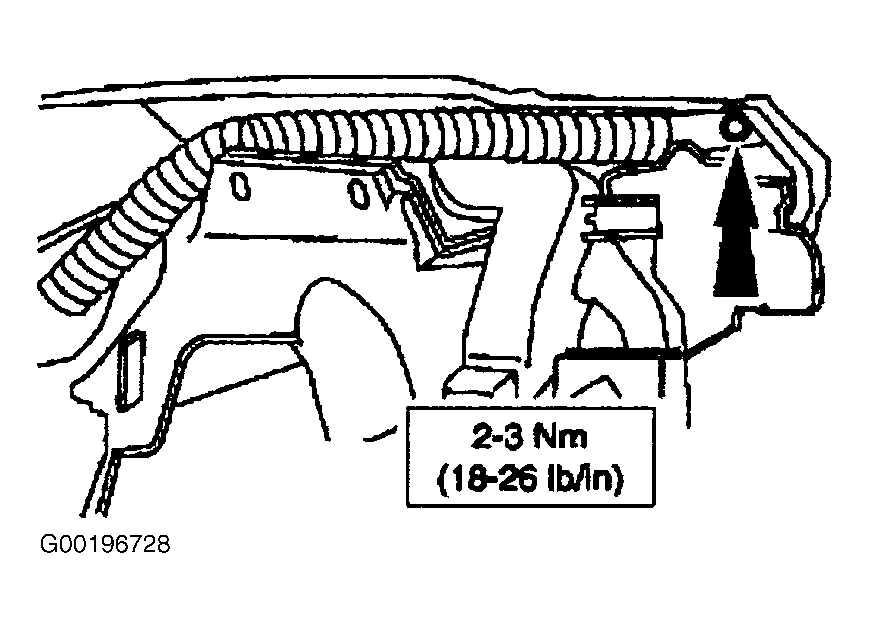

Fig 9: Removing & Installing In-Vehicle Temperature Sensor Screw
G00196728Courtesy of FORD MOTOR CO.

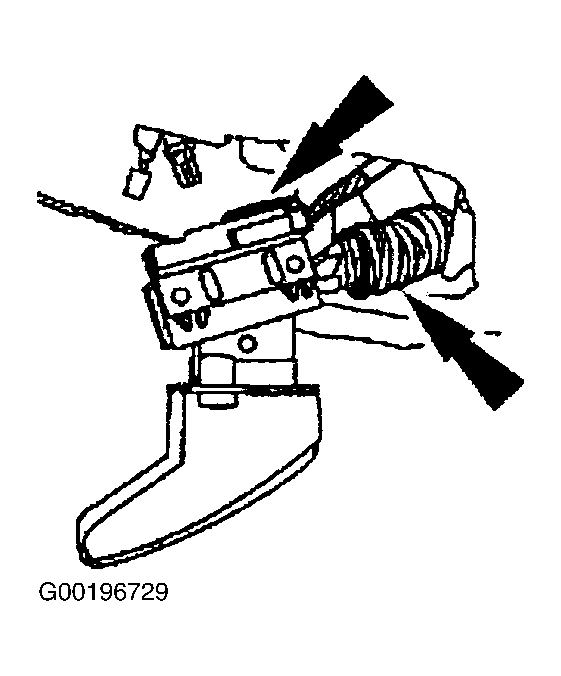

Fig 10: Removing & Installing In-Vehicle Temperature Sensor
G00196729Courtesy of FORD MOTOR CO.
